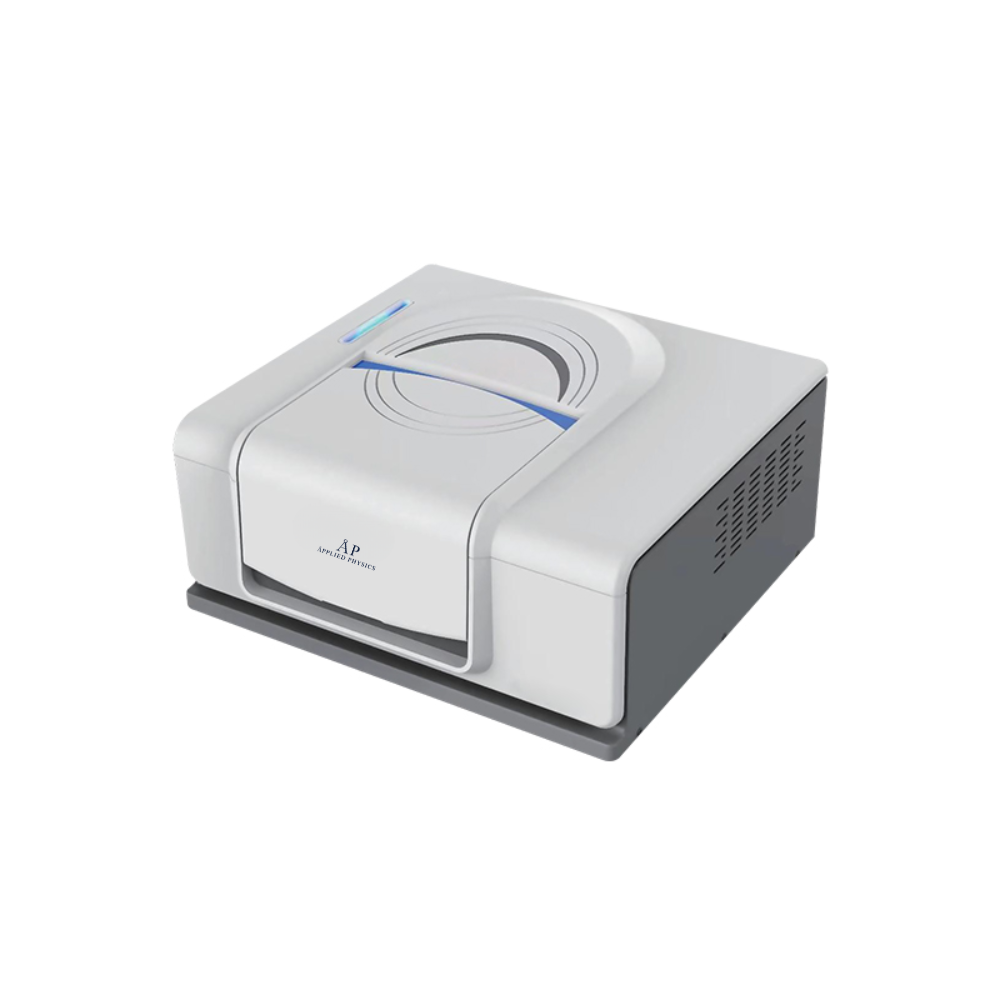

FT-IR Spectrometer

Description

FT-IR Spectrometer

Features:

1. High sensitivity optical system.

2. High stability modular partition design.

3. Intelligent multi-sealed moisture-proof design.

4. Innovated integration electronic system.

5. Good anti-electromagnetic interference capability.

6. High intensity IR source.

Technical Parameters:

Model

BKFT-530A

BKFT-530APro

Detector

LiTaO3

DLATGS

Signal to Noise Ratio

Better than 20,000:1(RMS value, at 2100cm-1~2200cm-1, resolution: 4cm-1, 1 minute

data collection)

Better than 40,000:1(RMS value, at 2100cm-1~2200cm-1,

resolution: 4cm-1, 1 minute data collection)

Interferometer

Cube-corner michelson interferometer

Beam Splitter

Multilayer Ge coated KBr

IR Source

High intensity, long lifetime, air-cooled IR source

Wavenumber Range

7800cm-1~350cm-1

Resolution

0.85cm-1

Wavenumber Accuracy

±0.01cm-1

Scanning Speed

Microprocessor control, different scanning speed selectable

Software

Main FTOS suite software workstation, compatible to all version Windows OS. FDA 21 CFR Part11 compliance software(Optional)

Interface

Ethernet&WIFI wireless

Data Output

Standard data format, report generation and output

Status Diagnosis

Power on self-check, real-time temperature and humidity monitoring and reminders

Environment Conditions

Temperature: 10℃~30℃, Humidity: less than 60%

Standard Accessories

Transmission sample holder

Optional Accessories

Gas cell, liquid cell, defused/specular reflection, single/multiple reflection ATR, IR microscope, electronic moisture proof box. etc.

Among them, the electronic moisture proof box is mandatory optional part

Power

80W

Power Supply

AC110V~220V, 50/60Hz

External Size(W*D*H)

490*420*240mm

Net Weight

23.2kg

Packing Size(W*D*H)

Main unit: wooden type 750*630*630mm; carton type 680*580*630mm

Electronic moisture proof box: wooden type 930*810*640mm; carton type 850*730*500mm

Gross Weight

Main unit: wooden type 50kg; carton type 33kg

Electronic moisture proof box: wooden type 60kg; carton type 33kg
