Introduction:
Gel card centrifuge is a special centrifuge developed by our company for blood group serology, routine blood group detection, microcolumn gel, red blood cell washing, immune detection and other tests. Precise control and easy to use. It is suitable for the separation of blood, organisms, chloroplasts, protein nucleic acids, viruses, etc. in biology, chemistry, medicine, genetics, hospitals, and laboratories.
$0.00

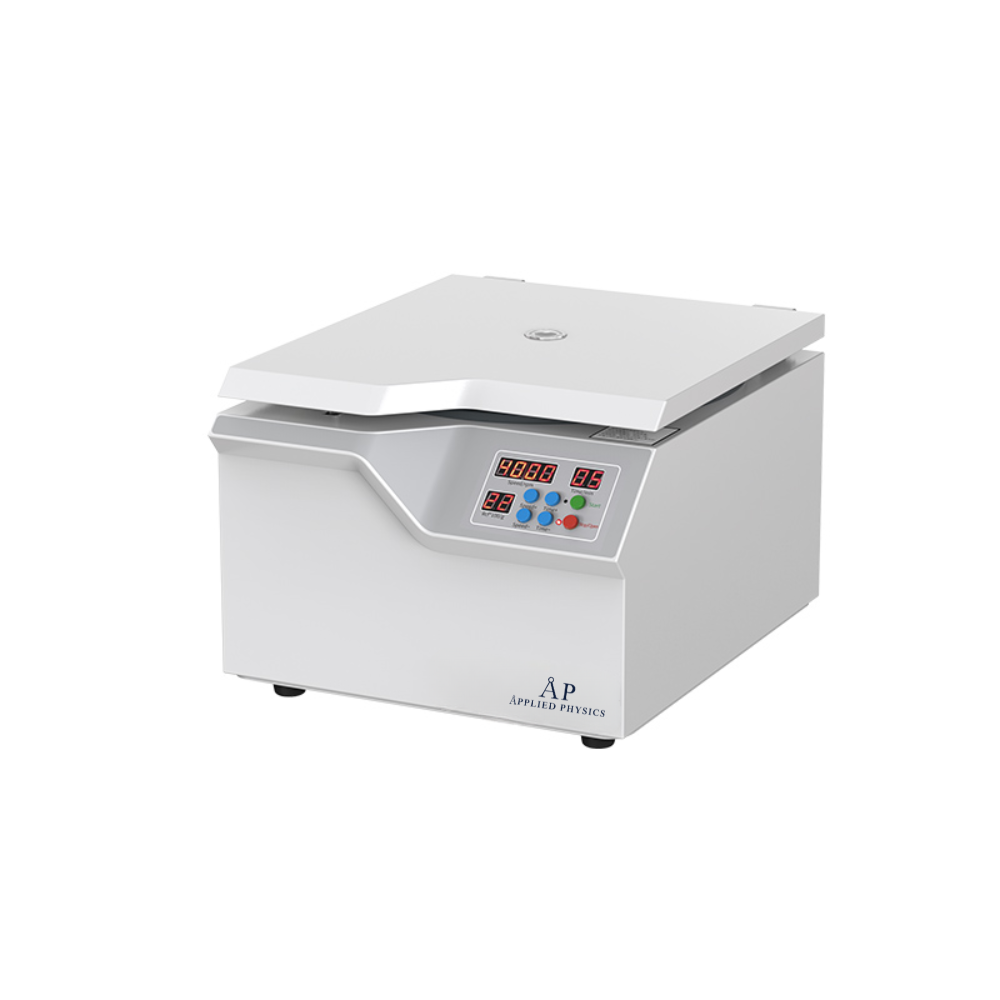

Gel Card Centrifuge BKC-TL4G
Features:
1. The whole machine adopts steel structure and stainless steel centrifugal chamber.
2. Embedded microprocessor control, DC brushless motor drive, maintenance-free, smooth operation.
3. Push-button programming design, digital tube display, real-time display of all operating parameters, intuitive and simple operation.
4. Alarm monitoring function, real-time monitoring of lock and motor status, safe and reliable operation.
5. Centrifugal speed, centrifugal time and other parameters can be set, and real-time display of centrifugal force.
Technical Parameters:
Model
BKC-TL4G
Max. Speed
4000rpm
Max. RCF
2039×g
Max. Capacity
24 cards
Timing Range
1s~99min
Speed Precision
±10rpm
Noise
≤65dB
Consumption
150W
Power Supply
AC220V, 50/60Hz or 110V, 50/60Hz
External Size(L*W*H)
360*445*278mm
Package Size(L*W*H)
476*566*436mm
Net Weight
22kg
Gross Weight
26kg
Rotor:
NO.
Rotors Type
Capacity
Max. Speed
Max. RCF
Adapter
4M0011
Gel card Rotor
12 cards
4000rpm
1825×g
/
4M0012
24cards
3000rpm
1459×g
/
4M0016
Angle Rotor
12*5/7ml
4000rpm
1681×g
2/3/4mlvacuum blood collection tube
4M0017
30*5/7ml
4000rpm
2039×g
4M0004
12*15ml
4000rpm
2147×g
1.5/2ml
4M0020
Capillaries Rotor
24 capillaries
4000rpm
1580×g
/
Note: The default is round-bottom tube, with mark (▲) is sharp-bottom tube.
