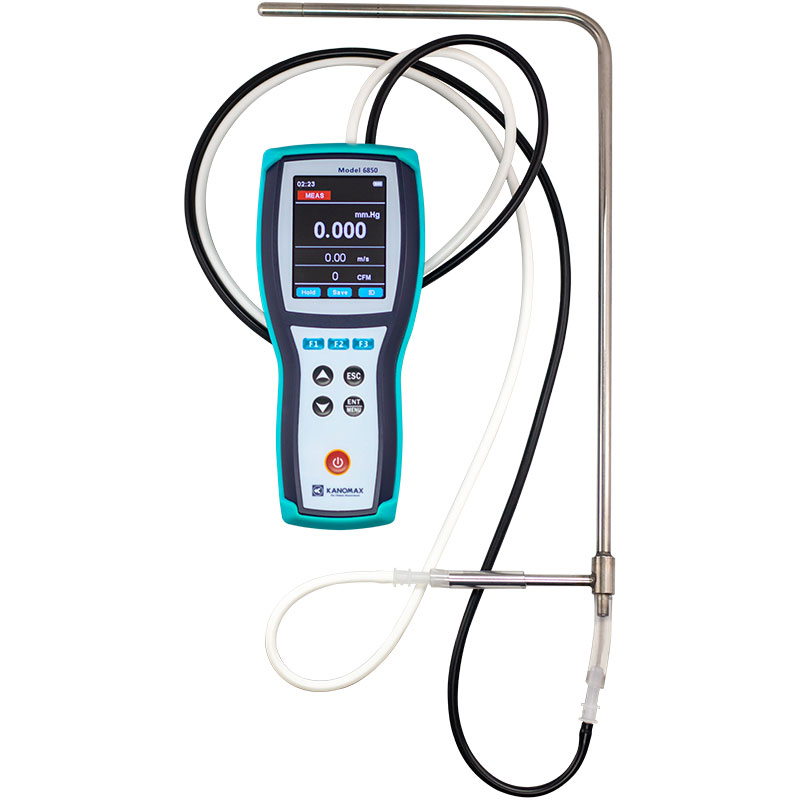

The Kanomax Handheld Micromanometer – Model 6850 takes airflow and pressure readings with a pitot tube, making it easy to traverse ducts. With its ergonomic form factor, the 6850 is ideal for situations where technicians need their airflow meter to be portable yet durable. An optional attachable strap allows the meter to be hung from one’s person or a nearby fixture to traverse ducts more easily.
Description
Features & Benefits
- High resolution pressure measurement
- Average airflow measurement
- Airflow (volumetric flow) measurement capabilities
- Duct traverse-capable with pitot tube (sold separately)
Applications
- HVAC Testing, Adjusting, and Balancing
- Duct Traverse
Specifications
| Measurement Specifications | ||
|---|---|---|
| Airflow | Range | 0.2 to 60 m/s |
| Accuracy | ±1.5% of reading (at 10 m/s) | |
| Resolution | 0.01 m/s | |
| Pressure | Range | -2500 to 2500 Pa |
| Accuracy | ±0.5% of reading ±1 Pa | |
| Resolution | 0.1 Pa | |
| General Specifications | ||
| Operating Temperature | 32 to 140°F (0 to 60°C) | |
| Storage Temperature | -4 to 158°F (-20 to 70°C [no condensation]) | |
| Interface | USB | |
| Datalogging | 10,000 Measurements | |
| Power Supply | 4 x AA Batteries or AC Adapter | |
| Weight | 360g (0.79 lbs) | |
| Dimensions | W85 x H200 x D40 mm | |
Resources
User Manual
Data Sheet - English
Accessories
- 5/16″ x 8-5/8″ Stainless Steel Pitot Tube: Model 6700-02
- 5/16″ x 12-5/8″ Stainless Steel Pitot Tube: Model 6700-03
- 5/16″ x 18-5/8″ Stainless Steel Pitot Tube: Model 6700-04
- Static Pressure Probe: Model 6700-08
- Pressure Tubing: Model 6700-30
