The Horizontal Planetary Ball Mill is an advanced grinding device designed for high-energy milling, mixing, and mechanical alloying processes in laboratory and industrial settings.
$0.00

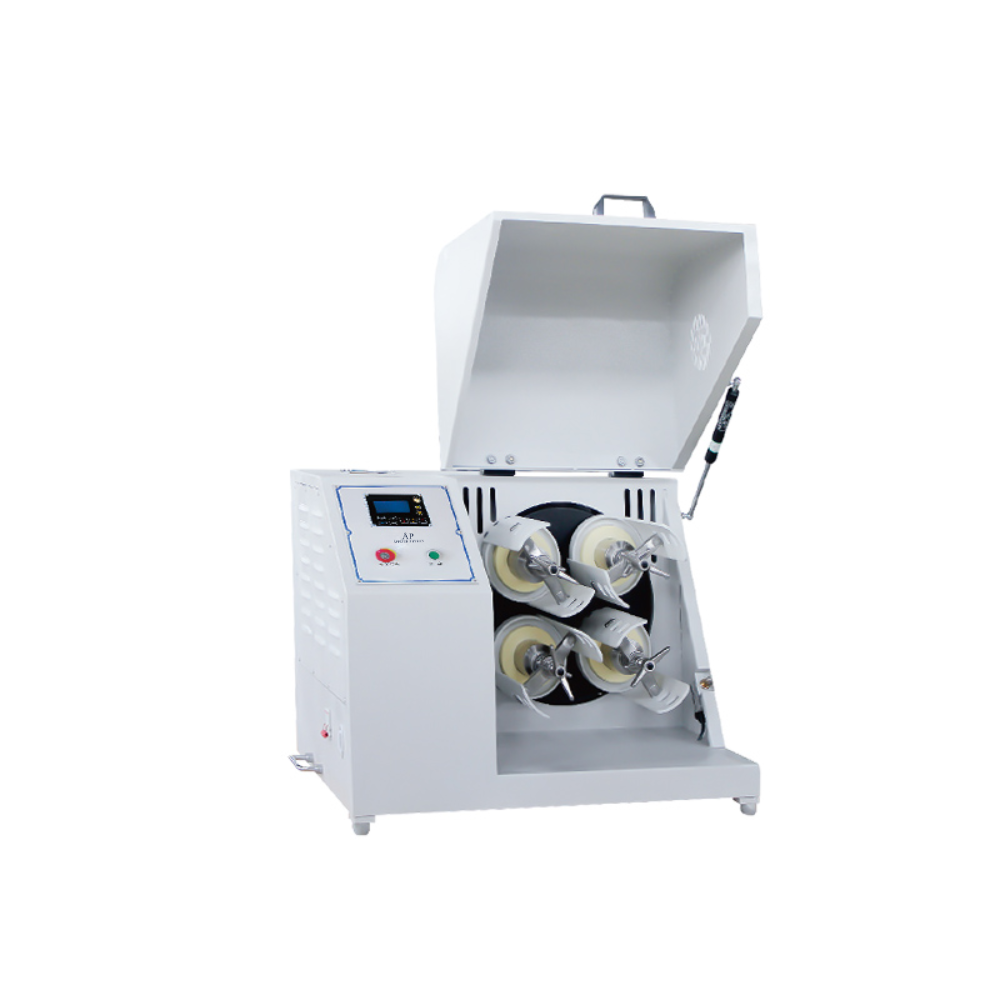

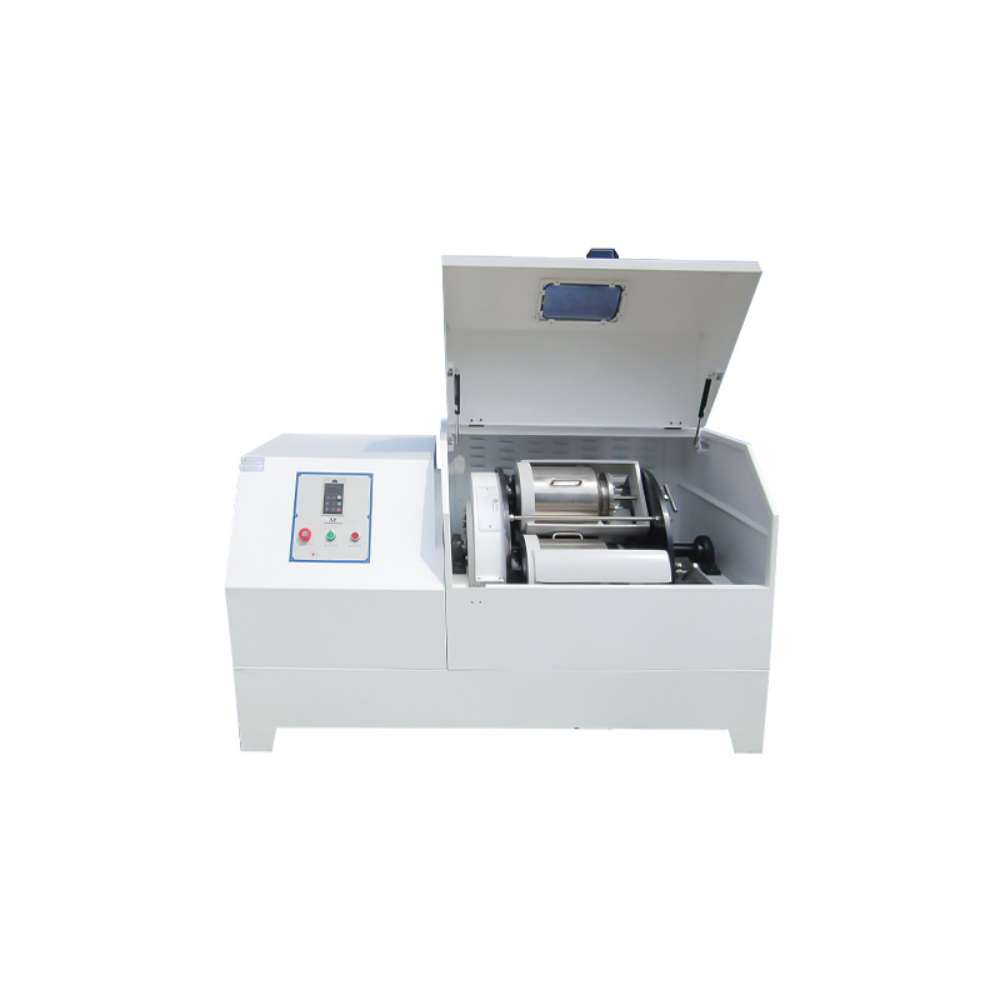

Horizontal Planetary Ball Mill
Features:
1. Horizontal structure of grinding pots.
2. Special gear with low noise.
Technical Parameters:
Model
BKBM-H2A
BKBM-H2B
Capacity
2L
Volume of Each Capacity
50~500ml
Pot Quantity
4pcs
Running Time Range
1~9999min
Reciprocal Running Time
1~999min
Adjustable Speed Revolution
Revolution
35~335rpm
Rotation
70~670rpm
Noise
60±5dB
Transmission Mode
Gear drive
Working Mode
2 or 4 pots can be used each time
Maximum Sample Volume(material+grinding ball)
2/3 of the volume of the ball mill tank
Feed Size
Soft and crispy material<10mm, Other materials<3mm
Out-put Granularity
Minimum Granularity can be reached to 100nm
Adjusting Mode of Rotate Speed
Frequency converter with stepless speed regulation
Speed Control Mode
Frequency control
Consumption
0.75KW
1.5KW
Power Supply
Standard: AC220V, 50/60Hz; Optional: AC110V, 50/60Hz
External Size(W*D*H)mm
700*510*570
1220*620*810
Package Size(W*D*H)mm
850*750*700
1400*800*1000
Net Weight(kg)
86
256
Gross Weight(kg)
150
400
Note: Both pot and ball are optional. For a ball mill with a capacity of 2L, if the matching mill pot specification is 25ml or 50ml, you need to purchase a base holder separately.
| Model | BKBM-H2A, BKBM-H2B |
|---|
