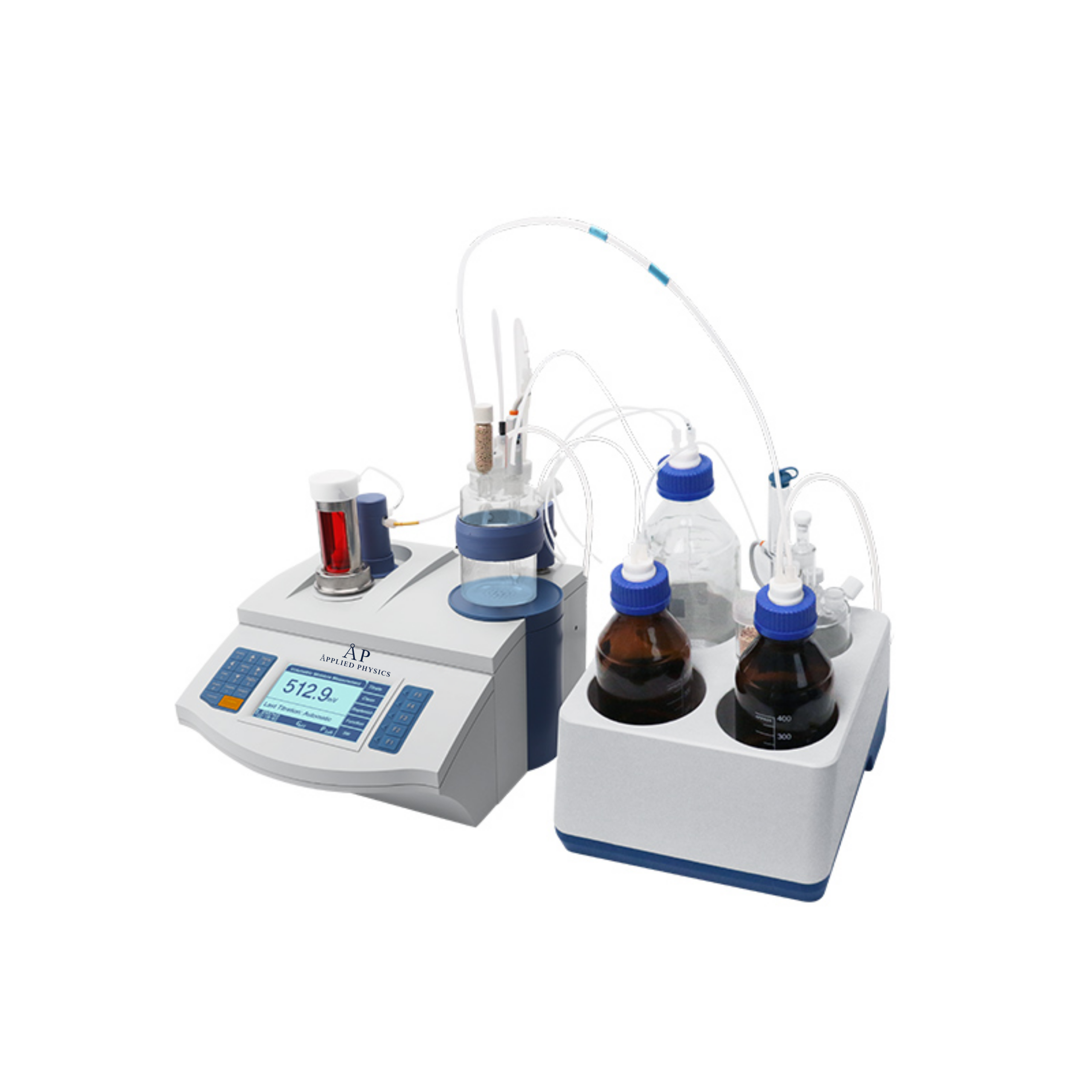

Karl Fischer Titrator KFT-40VC

Description

Karl Fischer Titrator KFT-40VC

Features:

1. LCD display screen.

2. Titration methods, curves and results are displayed in detail.

3. Volumetric KF Titration and Coulometric KF Titration are supported.

4. Data analysis feature helps user review and compare results.

5. Data can be easily transferred to printer via RS-232 communication interface.

6. Reset feature automatically resumes all settings back to factory default options.

Volumetric Karl Fischer Titration:

1. Support KF titration mode and titer detection mode.

2. Features of auto-filling, auto-purging and auto-mixing of the reagents ensure safe handling of Karl Fischer chemicals.

3. Automatic/manual background drift correction ensures accurate results.

4. Selectable units including mg, mg/L, %, ppm, etc.

5. Settable parameters, including measurement unit, polarization current, stirring rate, titration rate, stop volume, endpoint potential, stop criterion and etc.

6. Store up to 200 titration data sets(GLP-compliant).

Coulometric Karl Fischer Titration:

1. Generator cell with diaphragm.

2. Automatic/manual background drift correction ensures accurate results.

3. Selectable units including μg,mg,%,ppm,mg/L,μg/mL, etc.

4. Settable parameters, including measurement unit, polarization current, stirring rate, generator current, endpoint potential, stop criterion and etc.

5. Store up to 200 titration data sets(GLP-compliant).

Technical Parameters:

Model

KFT-40VC

Volumetric Titration

Range

0.1mg~250mg

Polarization Current Accuracy

1μA±0.2μA; 50μA±10μA

Repeatability

≤0.5%

Coulometric Titration

Range

10μg~20mg

Polarization Current Accuracy

±0.2μA

Working Current

1, 1.86, 5, 10μg(H2O)/S for 10.72mA, 20mA, 53.61mA, 107.2mA

Working Current Accuracy

0.5%

Accuracy

±(5%+3)μg

Repeatability

≤3%

General

Power Supply

AC adaptor, 100~240V, 50/60Hz AC input

External Size(W*D*H)

340*400*400mm

Package Size(W*D*H)

540*490*480mm

Net Weight

10kg

Gross Weight

13kg
