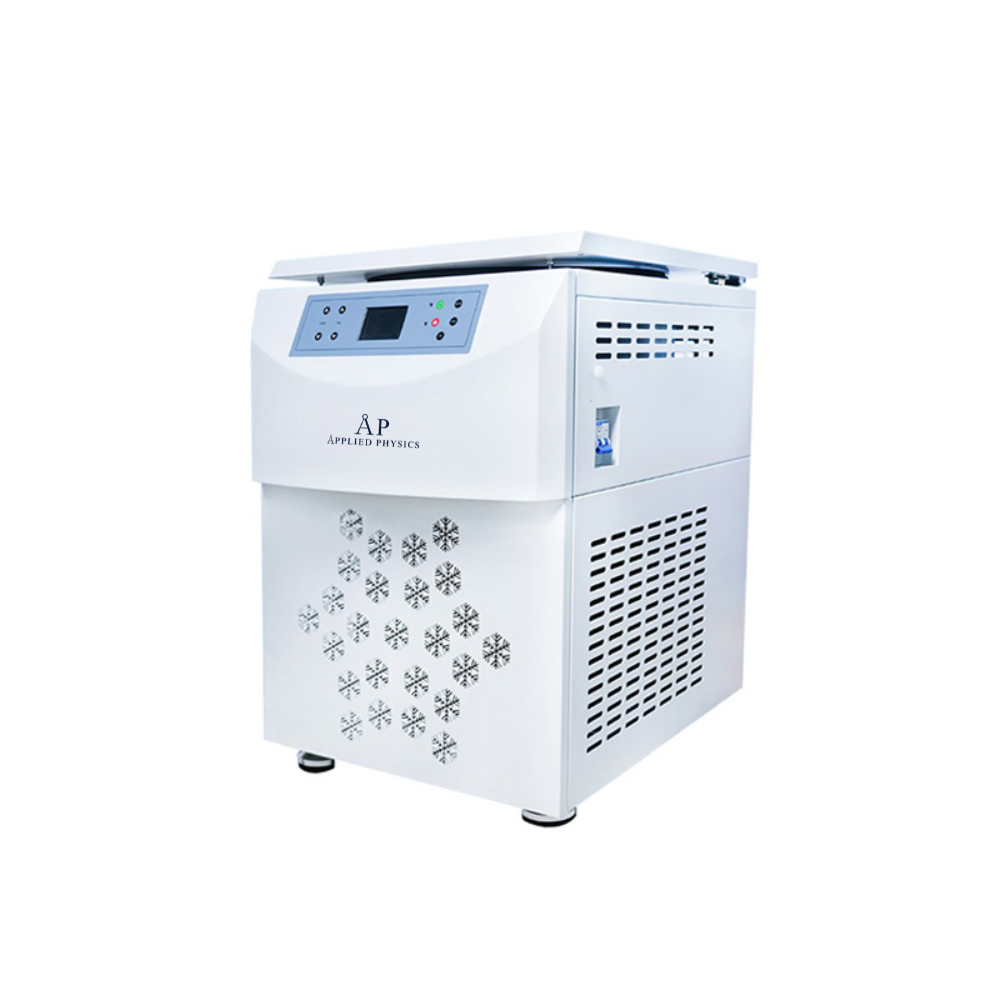

Low Speed Large Capacity Refrigerated Centrifuge BKC-VL5RML

Description

Low Speed Large Capacity Refrigerated Centrifuge BKC-VL5RML

Features:

1. Embedded microprocessor control, precise control of speed, time, temperature and relative centrifugal force.

2. The entire unit is constructed with a full steel structure, featuring a stainless steel centrifuge chamber.

3. Push-button programming design, real-time display of all operating parameters, intuitive and easy to operate.

4. With door cover protection, over-speed and advanced electronic unbalance detection system, the centrifuge process is monitored in real time to ensure the safe operation of the instrument.

5. Adopt imported fluorine-free compressor unit, R404a refrigerant.

Technical Parameters:

Model

BKC-VL5RML

Max Speed

5000rpm

Max RCF

5100×g

Max Capacity

4*800ml

Speed Precision

±20rpm

Timing Range

1s~999min

Noise

≤65dB

Consumption

2000W

Power Supply

AC110~220V, 50/60Hz

External Size(W*D*H)

550*680*820mm

Package Size(W*D*H)

860*650*1120mm

Net Weight

150kg

Gross Weight

175kg

Rotor:

No.

Rotor

Capacity

Max. Speed(rpm)

Max. RCF(×g)

Adapter

No.1

Swing Rotor Support

4*500ml

/

/

/

Hanging Cup

4*500ml

/

/

/

Adapter

4*250ml

4000

3023

/

4*2*100ml

3023

/

4*100ml(▲)

3023

/

4*100ml

3023

/

4*3*50ml

3023

/

4*2*50ml

3023

/

4*50ml

2808

/

4*4*30ml PP tube

2808

/

4*9*15ml

2808

/

4*8*15ml(▲)

2808

/

4*8*15ml

2808

/

4*12*10ml

3184

/

4*12*5ml blood collection tube

2808

48*2ml

Tube Rack

4*16*10ml

4000

2810

/

4*20*7ml PP tube

3139

/

4*30*5ml blood collection tube(80mm)

3150

/

4*30*5ml blood collection tube(106mm)

3150

120*2ml

4*24*5ml blood collection tube(106mm)

3032

96*2ml

4*24*5ml blood collection tube(100mm)

3032

96*2ml

4*20*5ml blood collection tube(106mm)

3050

80*2ml

4*24*2ml blood collection tube

2585

/

4*20*2ml blood collection tube(80mm)

3050

/

4*25*1.5ml

2808

/

No.2

Swing Rotor

Support

4*750ml

/

/

/

Hanging Cup

4*750ml

/

/

/

Adapter

4*3*100ml

4000

3380

/

4*2*100ml

3360

/

No.3

Swing Rotor

Support

4*250ml

/

/

/

Hanging Cup

4*250ml

/

/

/

Adapter

4*1*100ml

4000

2379

/

4*1*50ml

2379

/

4*9*10ml

2379

/

Tube Rack

4*4*50ml

4000

3500

/

4*2*50ml(▲)

3023

/

4*20*5ml

3139

/

4*18*5ml blood collection tube(L106mm)

2808

72*2ml

4*12*5ml blood collection tube(L75mm)

2808

/

4*12*5ml blood collection tube(L100mm)

2808

48*2ml

4*12*5ml blood collection tube(L106mm)

2808

48*2ml

4*10*5ml blood collection tube(L106mm)

2808

40*2ml

No.4

Swing Rotor Support

SUS304 Support

/

/

/

Hanging Basket

4*2*100ml

4000

3175

/

4*1*100ml

3007

/

4*2*50ml

3022

50ml(▲),15ml(●)

4*1*50ml

2846

4*8*15ml

3030

15ml(▲),10ml(▲),10ml blood collection tube, 5ml blood collection tube, 2ml blood collection tube(L75)

4*6*15ml

2705

4*4*15ml

2705

4*8*10ml

3030

/

4*6*10ml

2705

/

4*4*10ml

2705

/

No.5

Microplate Rotor

2*2*96well

4000

2300

/

No.6

Auto Uncap Swing Rotor

4*12*5ml

4000

3580

/

4*12*2ml

3580

/

4*20*5ml

3580

/

4*20*2ml

3580

/

4*24*5ml

3580

/

4*24*2ml

3580

/

No.7

Angle Rotor

12*10ml

5000

3440

12*5ml

No.8

Angle Rotor

18*10ml

5000

3516

18*5ml

No.9

Angle Rotor

24*10ml

5000

2200

24*5ml

No.10

Angle Rotor

8*15ml

5000

3300

/

No.11

Angle Rotor

12*15ml

5000

2200

/

No.12

Angle Rotor

12*20ml

5000

3360

/

No.13

Angle Rotor

4*50ml

5000

3400

/

No.14

Angle Rotor

6*50ml

5000

3400

/

No.15

Angle Rotor

4*100ml

4000

2800

/

Note: The default is round-bottom tube, with mark (▲) is sharp-bottom tube. The swing rotor should select support+hanging cup+adapter or support+tube rack.
