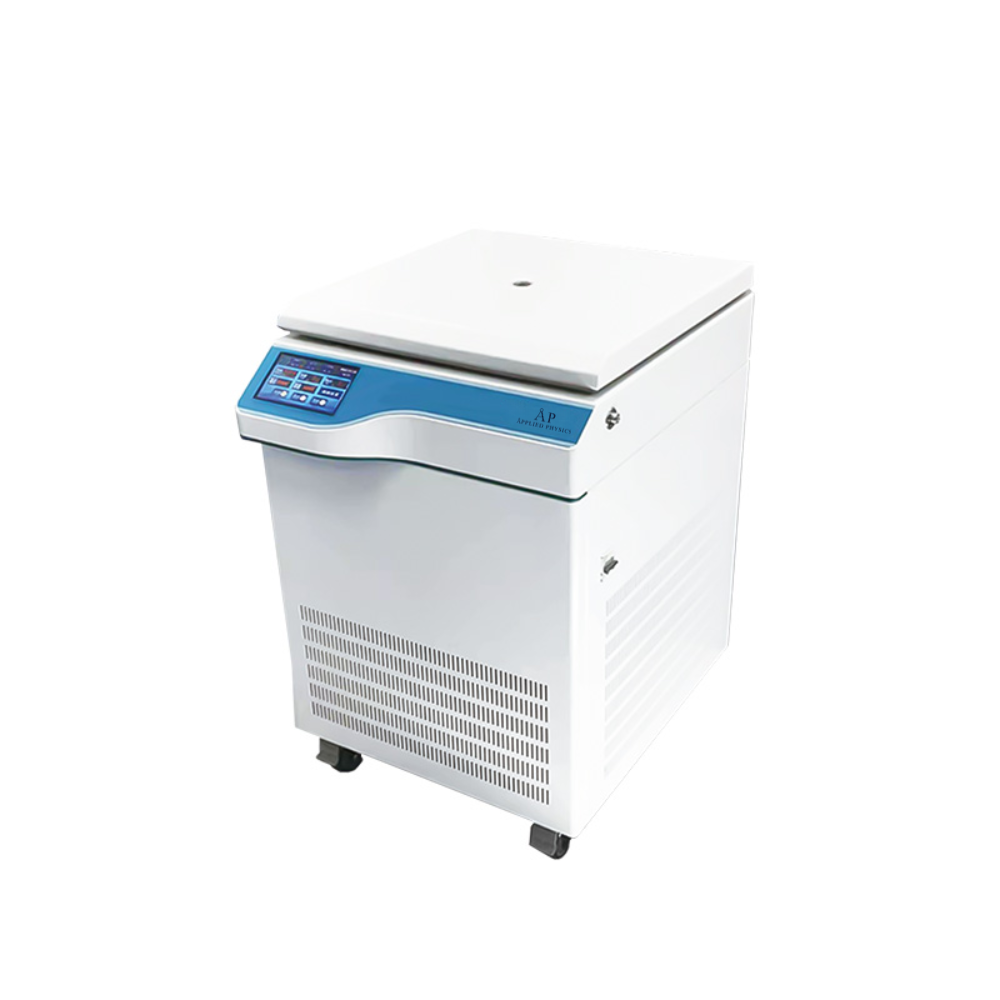

Low Speed Refrigerated CentrifugeBKC-TL5RIII

Description

Low Speed Refrigerated CentrifugeBKC-TL5RIII

Features:

1. Microcomputer control, large screen color LCD, full touch screen operation interface.

2. Brushless AC variable frequency motor drive.

3. Double door cover lock system, ensure running safety.

4. Provide 20 kinds of working program storage, easy to use and improve work efficiency.

5. Provide 15 kinds of acceleration/deceleration.

6. It has two timing functions: setting and jog.

7. Differential centrifugation: five differential centrifugation procedures are reserved.

8. Double layer steel structure, spray anti-corrosion coating surface of centrifugal chamber.

9. Automatic balance and unbalance protection.

10. Soft braking function, it can effectively prevent sample resuspension and protect sensitive samples.

11. Countdown function: the countdown in seconds, real-time display of remaining working time.

12. The centrifuge can customize 485 communication interface function and operate through remote control.

13. Condensate drainage holes are provided in the centrifugal chamber.

14. Pre-cooling function: In standby mode, the centrifuge can continuously cool to the set temperature.

15. Automatic standby function: When the temperature drops to the set temperature, the compressor automatically stands by.

16. Quick cooling function: When the temperature drops from 21°C to 4°C, the biological zero point, the cooling time is less than 5 minutes.

17. The rotor can withstand high temperature and pressure sterilization at 121°C for more than 2 hours, airtight angle rotor, high biological safety.

18. Automatic magnetic rotor recognition.

19. Famous brand compressor, fluorine-free refrigeration technology.

Technical Parameters:

Model

BKC-TL5RIII

Max. Speed

6000rpm

Max. RCF

5502xg

Maximum Capacity

4*750ml

Speed Precision

±10rpm

Noise

≤62dB

Timing Range

1s~99h59min59s/jog

Temperature Range

-20~40℃

Temperature Accuracy

±1℃

Power Supply

AC220V, 50/60Hz(standard); AC110V, 50/60Hz(optional): External transformer

External Size(W*D*H)mm

760*590*890

Package Size(W’D*H)mm

803*700*1060

Net Weight(kg)

130

Gross Weight(kg)

166

Rotor:

Rotor No.

Max. Capacity

Max. Speed(rpm)

Max. RCF(xg)

No.1 Swing Rotor

4*750ml

4200

3727

Adapter

4*500ml

4200

3727

Adapter

4*250ml(corning tube)

Adapter

4*250ml

Adapter

12*100ml

Adapter

20*50ml(▲)

Adapter

56*15ml(▲)

Adapter

76*15ml

Adapter

96*3/5/7ml vacuum blood tube

Adapter

148*5ml(RIA tube)

Adapter

28*50ml(●)

No.2 Uncapped Swing Rotor

96*3/5ml vacuum blood tube

4200

3727

Uncapped Adapter

96*3/5ml vacuum blood tube

No.3 Anti-pollution Swing Rotor

4*750ml

4200

3727

N0.4 Swing Rotor

148*5ml vacuum blood tube

4200

3727

No.5 Angle Rotor

6*50ml

6000

5502

No.6Microplate Rotor【DWP/MTP】

2*96-well /2*2*96-well

5000

3530

No.7 Microplate Rotor【DWP/MTP】

4*96-well/2*4*96-well

5000

3667

Note: The default is round-bottom tube, with mark (▲) is sharp-bottom tube.
