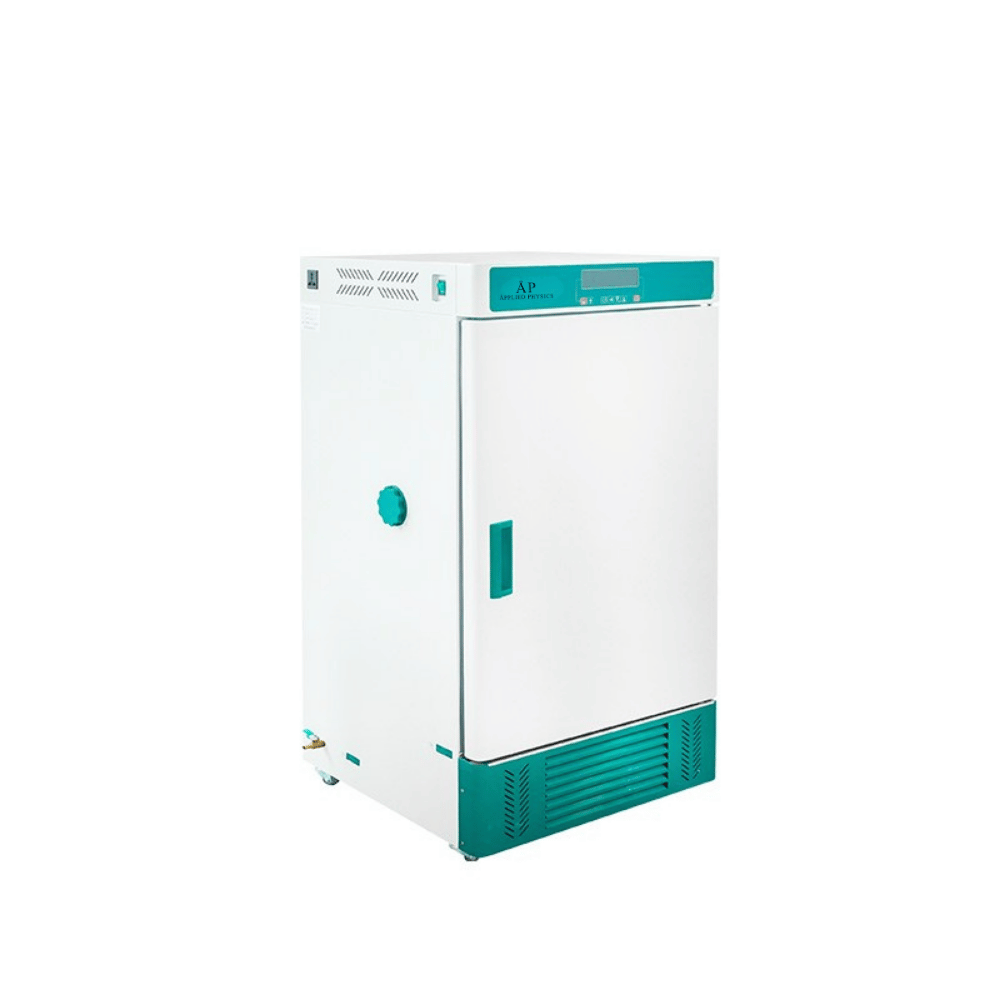

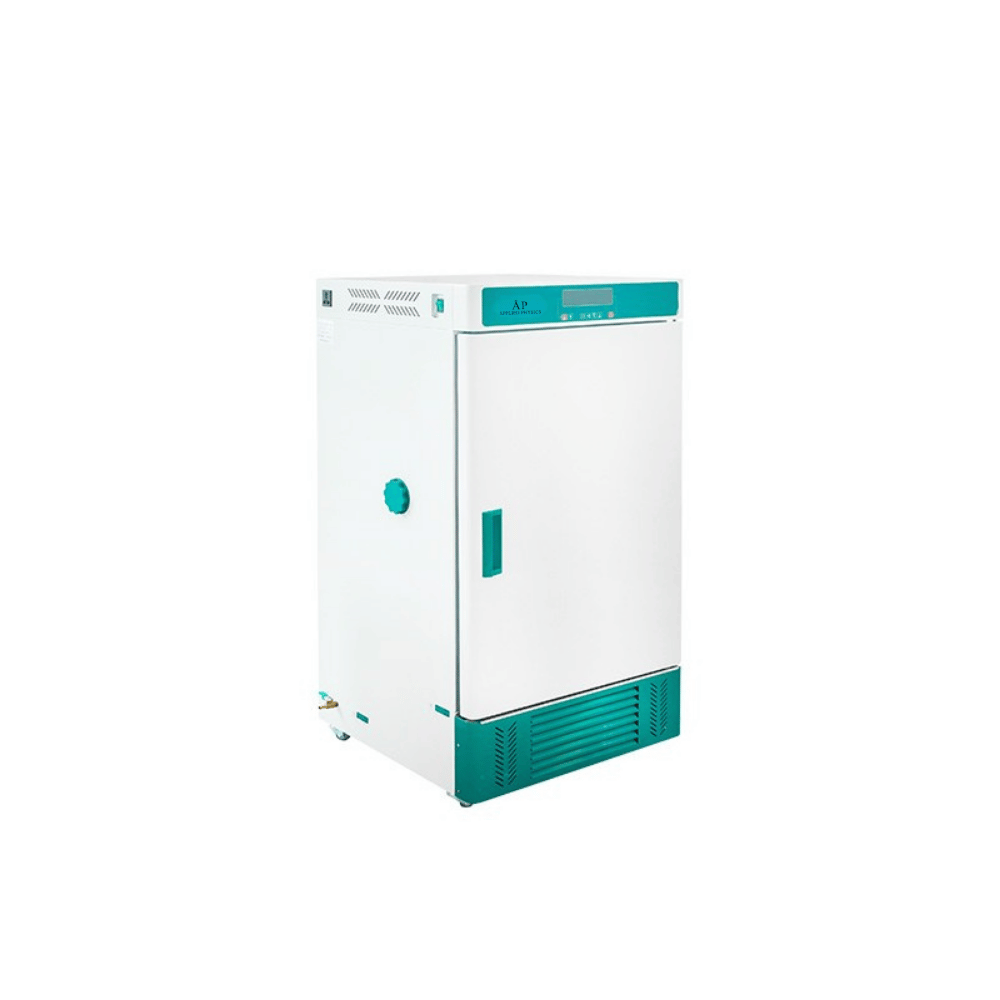

Mould Incubator BJPX-M70PF BJPX-M150PF BJPX-M250PF

Description

Mould Incubator BJPX-M70PF BJPX-M150PF BJPX-M250PF

Features：

1. Unique internal wind circulation structure design, breeze circulate fan make inner chamber temperature uniformity.

2. LCD display 30-stage program control, round move, ladder operating, intelligent PID temperature control system, high precise temperature control PT100 sensor equipped, high precise and stability import humidity sensor component to control humidity automatically.

3. Double door structure, with high quality stalinite to observe samples, out er door with magnetic strip, convenient to on and off, good sealing.

4. Intelligent defrosting function ensure device long-time run without frost.

5. Inner humidifying system with small particles , good humidity uniformity, low water consumption and function of alarm when is short of water.

Technical Parameters:

Model

BJPX-M70PF

BJPX-M150PF

BJPX-M250PF

Cycle Mode

Forced convection

Temp. Range

No humidification: 0~65℃; Humidification: 10~65℃

Temp. Resolution Ratio

0.1℃

Temp. Motion

High Temp.: ±0.5℃    Low Temp.: ±1℃

Temp. Uniformity

±1℃

Humidity Range

45%~95%RH

Humidity Stability

±5%RH

Inner Chamber

Mirror stainless steel

Outer Shell

Cold rolling steel electrostatic spraying exterior

Insulation Layer

Polyurethane

Heater

Stainless steel heater

Consumption

1.8KW

2KW

2.2KW

Compressor

Air cooled hermetic compressor

Cryogen

R134a

Defrost Structure

Automatic control intelligent defrosting

Humidifying Method

External

Test Hole

Plastic test hole Ф43mm

Sterilizing Lamp

Standard ozone-free type

Controlled External Power Supply

Universal socket(one)

Temp. Control Mode

30 segment lcd program

Temp. Setting Mode

Touch button setting

Temp. Display Mode

Measuring temperature: LCD upper row

Setting temperature: the lower row

Humidity Control Mode

Auto

Timer

0~99.9h*30 segment(with timing wait function)

Operation Function

Fixed value operation, timing function, auto stop, program operation

Sensor

PT100

Humidity Sensor

High precision anti-condensation

Additional Function

Deviation correction, Menu key lock

Power failure parameter memory

Additional character: UV light, loop self diagnosis

Safety Device

Over temperature alarm, over humidity alarm, water shortage alarm

Volume

70L

150L

250L

Load Per Rack(kg)

15

Shell Number

5

9

12

Shell Space

35mm

Supply(50/60Hz) Current Rating

AC220V/8.2A

AC220V/9.1A

AC220V/10A

Shell

2

Shelf Rack

4

Optional Accessories

Spare shell, Touche screen controller, RS485 interface USB interface and software, Printer, Recorder, Remote control, U-disk storage

Inner Chamber Size(W*L*H)(mm)

415*350*500

490*400*750

500*515*950

Exterior Size(W*L*H(mm)

571*591*1051

646*641*1301

656*741*1501

Packing Size(W*L*H(mm)

680*676*1235

751*730*1490

761*830*1690

Net Weight(kg)

69

86

100

Gross Weight(kg)

92

114

139
