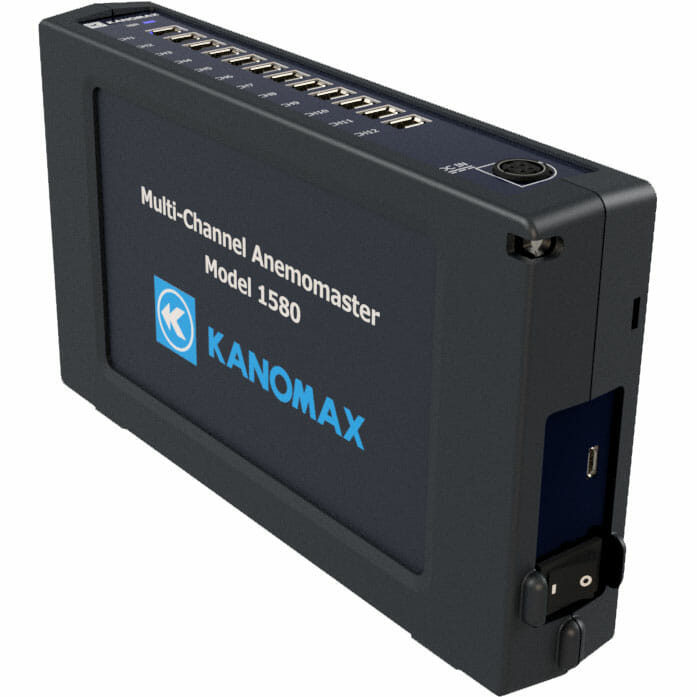

The Kanomax Multichannel Anemomaster – Model 1580 is the world’s most accurate and responsive multichannel anemometer. Perfect for measuring airflow in semiconductor manufacturing. Measure up to 12 channels with the industry’s most accurate and smallest miniature probes. Features high heat resistance and temperature measurement. Multi-point measurement has never been easier.
Features & Benefits
- 15 types of compatible probes for various applications
- The smallest class probes in the industry
- High heat resistance enables precise measurement even in tough environments
- Highly portable main body makes it easy to use in vehicles
- Improved probe response and accuracy, micro air velocity limit of 0.01 m/s
- Support analog output via optional Analog Unit - Model 1592-00
- Windows measurement software simultaneously measures air velocity, temperature, and humidity via the real-time graph display. Measurement data is saved in text format and can be easily imported into table measurement software such as Excel
Applications
- Thermal management of automobile electronic control unit (ECU)
- Electronic component heat evaluation
- Indoor airflow management for semiconductor manufacturing equipment
- Data center thermal management
Specifications
Main Unit Specifications
| Product | Multi-Channel Anemomaster | |
|---|---|---|
| Model | 1580-00 | |
| Number of Channels | Up to 12 channels | |
| Communication Function | Between PC | USB Micro-B |
| Between Probe | Serial communication (standard cable) | |
| Between Probe | Serial communication (connector) | |
| Power Supply | DC12 to 24V (Select either one of 3 options below)
1) Connection with other unit, 2) AC adaptor (90W), 3) DC power cable |
|
| Power Consumption | Up to 50W | |
| Operating Environment | 5~40℃, 0~85% RH (No Condensation) | |
| Storage Environment | -10~60℃, 0~90% RH (No Condensation) |
|
| Dimensions | W220mm × D130mm × H40mm | |
| Weight | 0.6 kg | |
| Standard Accessories | AC Adapter (90W), Software (CD), Operation manual, USB cable, Rubber cap | |
| Warranty | 1 year | |
Analog Unit Specifications
| Product | Analog Unit | ||
|---|---|---|---|
| Model | 1592-00 | ||
| Number of Channels | 12 | ||
| Communication Function | Between units | Serial communication {connector} | |
| Analog Output | Voltage output | Range | 0 ～ 5 V |
| Output resistance | 1 kΩ | ||
| Current output | Range | 4 ～20 mA | |
| Load resistance | 250 Ω | ||
| Power Supply | DC12 to 24V (Select either one of 3 options below)
1) Connection with other unit, 2) AC adaptor (90W), 3) DC power cable |
||
| Power Consumption | 10W | ||
| Operating Environment | 5~40℃, 0~85% RH (No Condensation) | ||
| Storage Environment | -10~60℃, 0~90% RH (No Condensation) | ||
| Size | W220mm × D130mm × H40ｍｍ | ||
| Weight | 0.5kg | ||
| Standard Accessories | Setup guide, Connecting clips (2pcs), Rubber cap (2pcs), Terminal block (3pcs) | ||
| Warranty | 1 year | ||
Probe Specifications
| Model Number | Measurement Target | Directivity | Air Velocity | Wind Temperature | Humidity | Operating Temperature |
Temperature Compensation Sensor |
||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Measurement Range | Measurement Accuracy | Responsivity | Measurement Range | Measurement Accuracy | Measurement Range | Measurement Accuracy | |||||
| 0972-00 0973-00 |
Wind Speed |
Yes | 0.01~50.0m/s | The larger of ± 2% or ± 0.02 m/s of the displayed value |
1 Second | ー | ー | ー | ー | 0-100℃ | ± 5% of displayed value at 0-100 ℃ |
| 0975-00 | No | 0.01~25.0m/s | 3 Seconds | ||||||||
| 0975-09 0975-10 |
0.01~50.0m/s | ||||||||||
| ± 5% of displayed value at 0-120 ℃ |
|||||||||||
| 0976-03 0976-04 0976-07 |
0.01~30.0m/s | The larger of ± 3% or ± 0.02 m / s of the displayed value |
0-120℃ | ||||||||
| 0976-13 0976-14 0976-17 |
The larger of ± 2% or ± 0.02 m/s of the displayed value |
0-100℃ | ± 5% of displayed value at 0-100 ℃ |
||||||||
| 0976-05 | Air Velocity and Temperature | The larger of ± 3% or ± 0.02 m/s of the displayed value |
0～120℃ | ±0.5% | 0-120℃ | ± 5% of displayed value at 0-120 ℃ |
|||||
| 0976-15 | 0～100℃ | 0-100℃ | ± 5% of displayed value at 0-100 ℃ |
||||||||
| 0975-21 | The larger of ± 2% or ± 0.02 m/s of the displayed value |
||||||||||
| 0975-31 | Air Velocity, Temperature and Humidity |
0.01~25.0m/s | 0～60℃ | 5～95%RH | 5～80% RH：3% RH 80～90% RH：5% RH |
||||||
Resources
User Manual
Data Sheet
Accessories
- Flat Probe (V) - Model 0972-00
- Uni-Directional Probe (V) - Model 0973-00
- Needle Probe (V) - Model 0975-00
- Needle Probe (V) - Model 0975-09
- Long Needle Probe (V) - Model 0975-10
- Spherical Probe (V) - Model 0976-03
- Spherical Angled Probe (V) - Model 0976-04
- Mini Probe (V/T) - Model 0976-05
- Mini Probe (V) - Model 0976-07
- Spherical Probe (V) - Model 0976-13
- Spherical Angled Probe (V) - Model 0976-14
- Mini Probe (V/T) - Model 0976-15
- Mini Probe (V) - Model 0976-17
- Needle Probe (V/T) - Model 0975-21
- Probe (V/T/H) - Model 0975-31
- Spare AC Adaptor - Model 1580-10
- DC Power Connection - Model 1580-37
- Probe Fixture Jig Pack (20pcs.; compatible w/ 0976-03/0976-04 and 0976-13/0976-14) - Model 1580-90
- Double Coated Tape (for 0976 probes) - Model 1590-92
- Standard Cable (0.5m) - 1580-30
- Standard Cable (2m) - 1580-31
- Standard Cable (5m) - 1580-32
- Standard Cable (10m) - 1580-33
- Standard Cable (20m) - 1580-34
- Standard Cable (40m) - 1580-35
