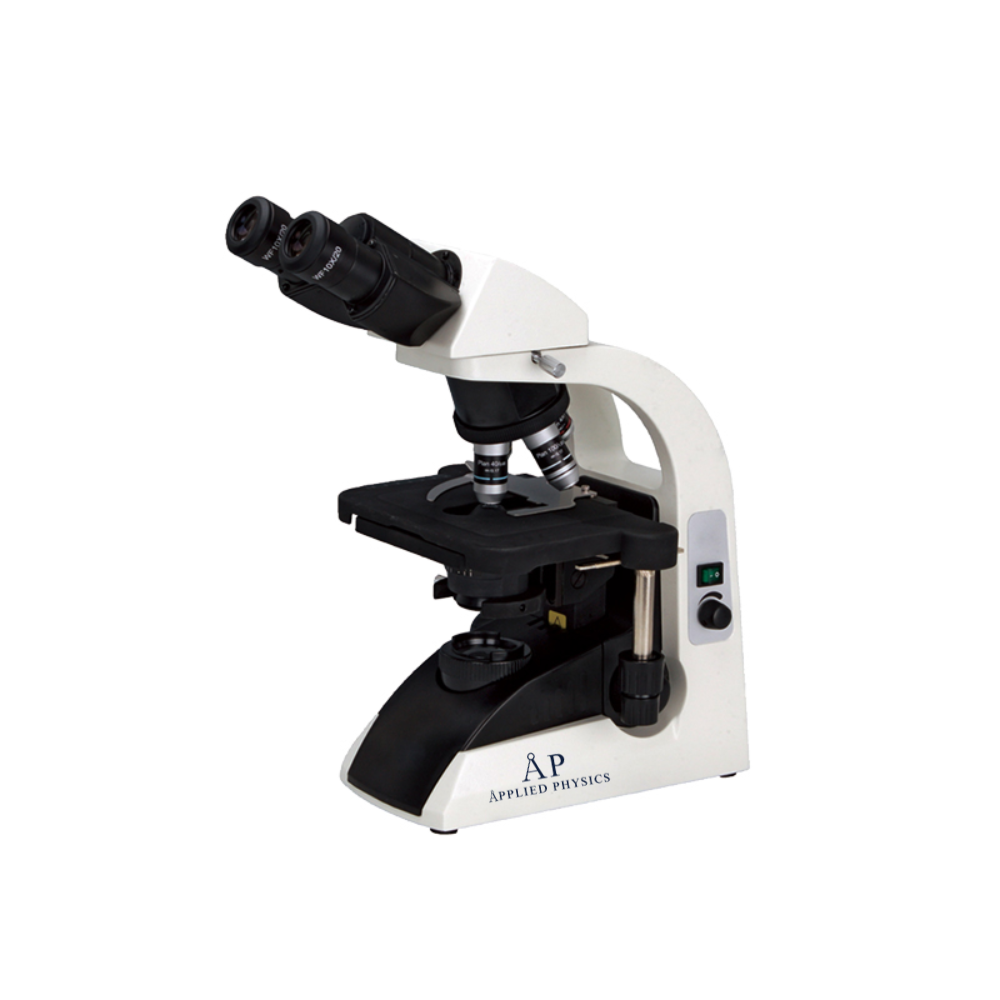

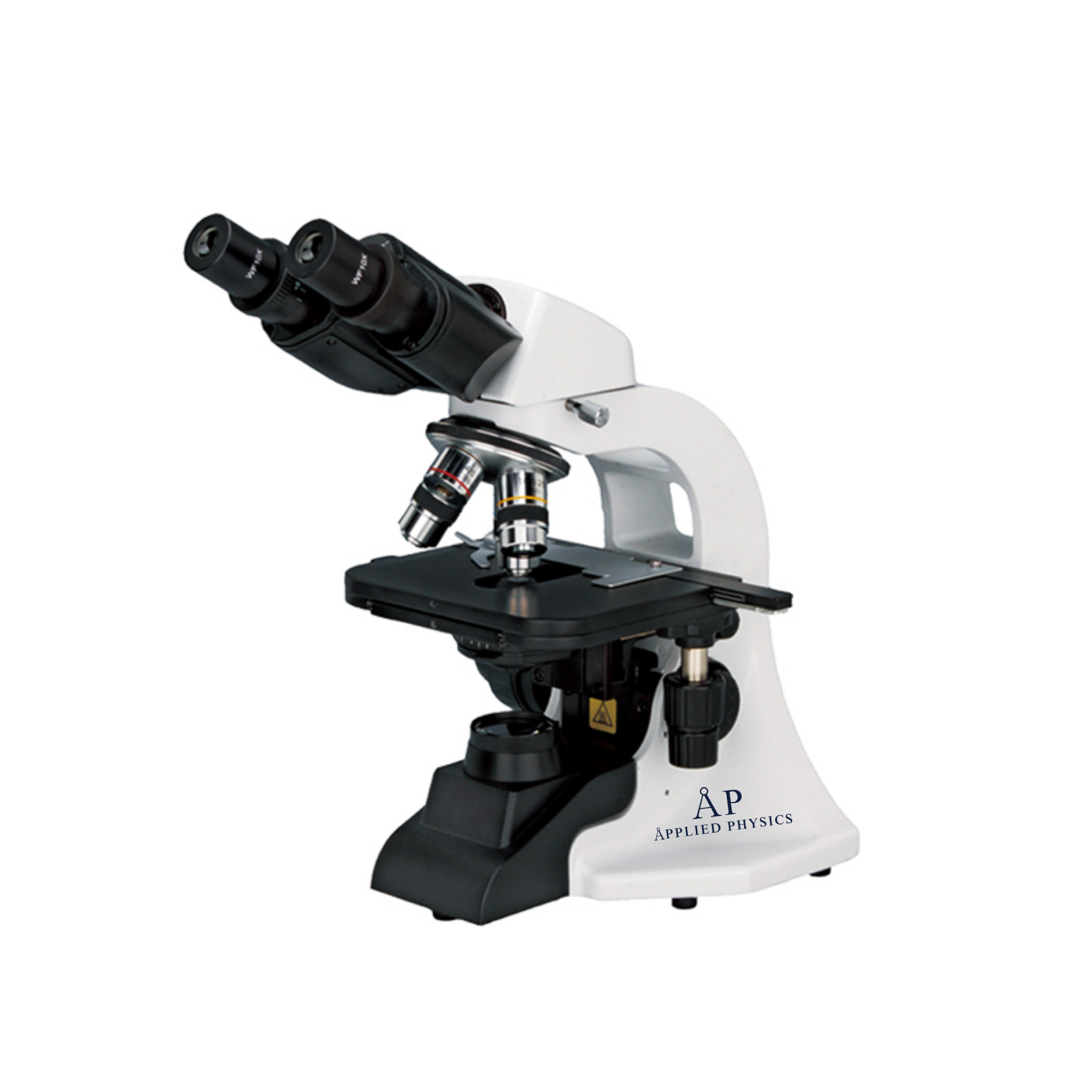

The Biological Microscope is a powerful scientific instrument for studying the microscopic world of biology. It offers high-resolution imaging, versatile observation modes, and precision controls, making it an indispensable tool for researchers, educators, and enthusiasts.
$0.00
Technical Parameters:
| Model | BMM-1000 | BMM-2000 | |
| Optical System | Infinite optical system | / | √ |
| Viewing Head | Siedentopf binocular viewing head, inclined at 30°,
360° rotatable, Interpupillary 48~75mm |
√ | √ |
| Siedentopf trinocular viewing head, inclined at 30°,
360° rotatable, Interpupillary 48~75mm |
● | ● | |
| Eyepiece | WF10X/18 | √ | |
| P16X/11 | ● | ||
| WF10X/20 | √ | ||
| WF15×/16 | ● | ||
| Objective | Achromatic objective 4X, 10X, 40X, 100X | √ | |
| Semi-plan achromatic objective 4X, 10X, 40X, 100X | ● | ||
| Infinite achromatic objective 4X, 10X, 40X, 100X | ● | ||
| Infinite semi-plan achromatic objective 4X, 10X, 40X, 100X | ● | ||
| Infinite plan achromatic objective 4X, 10X, 40X, 100X | √ | ||
| Nosepiece | Quadruple nosepiece | √ | |
| Backward quadruple nosepiece | √ | ||
| Backward quintuple nosepiece | ● | ||
| Focusing | Coaxial coarse&fine adjustment, fine division 0.002mm, coarse stroke
37.7mm per rotation, fine stroke 0.2mm per rotation, moving range 20mm |
√ | √ |
| Stage | Double layers mechanical stage: 132*142mm, moving range: 75*40mm | √ | |
| Rectangular 230*150mm stage, moving range: 78*54mm,
using low-positioned X/Y coaxial control knob |
√ | ||
| Condenser | Abbe condenser NA1.25 with aperture diaphragm | √ | √ |
| Illumination | S-LED IIlumination, brightness adjustable | √ | √ |
| 12V/20W Halogen lamp, brightness adjustable | ● | ● | |
| Kohler illumination | ● | ||
| Power Supply | 110~220V, 50/60Hz | √ | √ |
| Accessories | Photo attachment, video attachment | ● | ● |
| Dark field condenser | |||
| Polarization set, phase contrast kit | ● | ||
| Package Size | 323*264*440mm(BMM-1000), 380*260*510mm(BMM-2000) | √ | √ |
| Gross Weight | 6.5kg(BMM-1000), 10kg(BMM-2000) | √ | √ |
Note: √ Standard Outfit, ● Optional, Without this feature
| Model | BMM-1000, BMM-2000 |
|---|
