Introduction：
It can measure parameters such as gas CO₂ concentration, air temperature and humidity, leaf temperature, photosynthetically active radiation (photosynthetic photon flux density), gas flow rate, and atmospheric pressure. Additionally, it can be used independently as a CO₂ recorder. It is applicable to professional research in fields such as biology, agronomy, and microbiology, and is suitable for use in colleges and universities, research institutions, environmental protection enterprises, meteorological bureaus, and landscape architecture bureaus.
$0.00

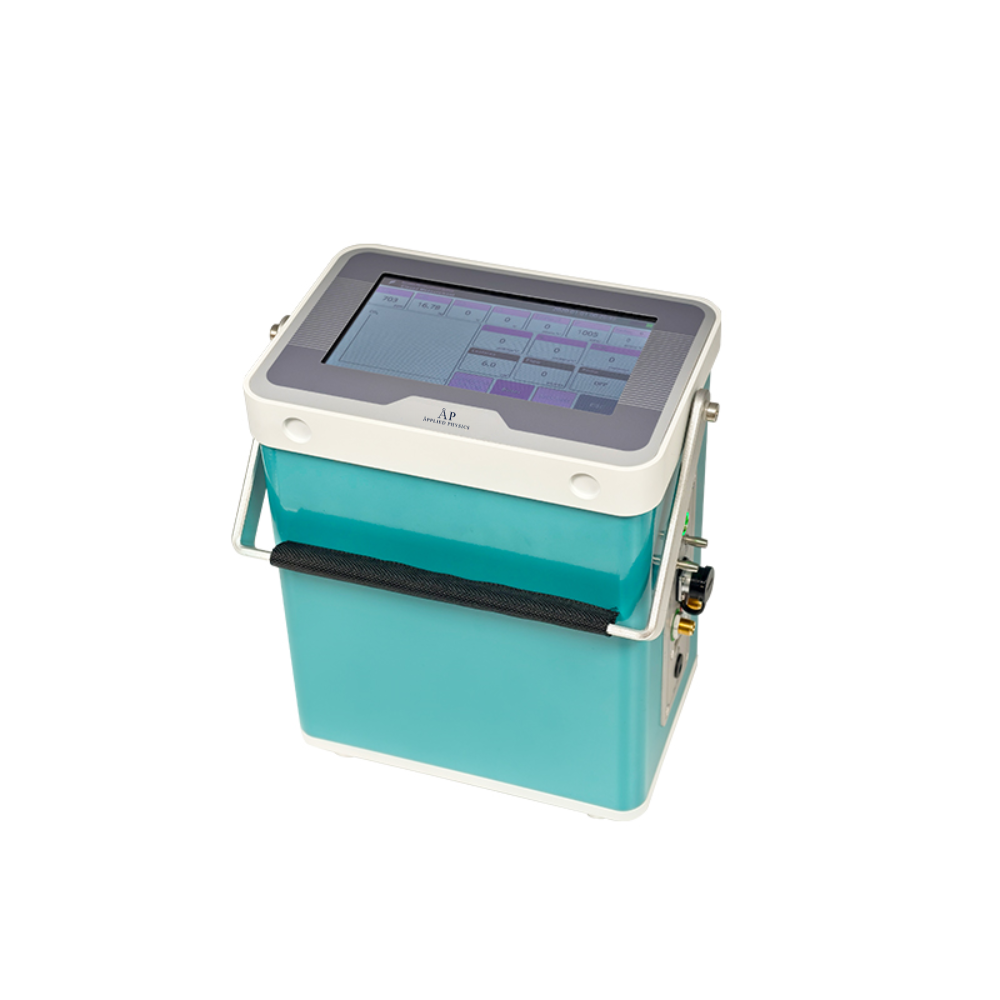

Plant Photosynthesis Meter PPM-3080D
Features:
1. 7-inch high-sensitivity touch screen
2. It can measure 16 parameters, including: carbon dioxide concentration, etc.
3. Automatic data storage: The instrument automatically saves measured data to prevent data loss caused by unexpected shutdown due to power depletion.
4. Tabular data export: Data can be exported to a computer in Excel format via a USB cable for secondary analysis.
5. Wireless transmission support: Data can be uploaded to a cloud platform.
Technical Parameters:
Model
PPM-3080D
CO₂
Measure Range
0~5000ppm
Resolution
1ppm
Accuracy
±3ppm
Leaf Temperature
Measure Range
-20~60℃
Resolution
0.01℃
Accuracy
±0.2℃
Leaf Chamber Temperature
Measure Range
-20~80℃
Resolution
0.01℃
Accuracy
±0.2℃
PARin(Optional)
Measure Range
0~3000μmol/m²·s
Accuracy
±5μmol/m²·s
Response Wavelength Range
320～730nm
PARout
Measure Range
0~3000μmol/m²·s
Accuracy
±5μmol/m²·s
Response Wavelength Range
320～730nm
Humidity
Measure Range
0~100%RH
Resolution
0.01℃
Accuracy
±0.5%
Leaf Chamber Size
Type Ⅰ：30*10mm
Type ⅠI：30*20mm (Standard)
Type ⅠII：30*30mm
Type Ⅳ：30*20mm (LED red and blue light sources)
Power Supply
13.8V 8.8AH rechargeable lithium battery
Packing Size(W*D*H)
550*400*250mm
Gross Weight
10kg
| Model | PPM-3080D |
|---|
