Description

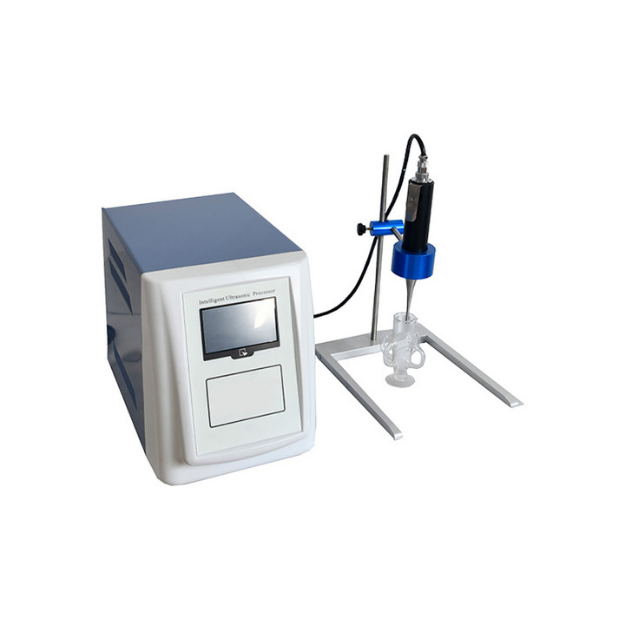

The Portable Ultrasonic Cell Disruptor is a compact, high-performance device designed for cell disruption, homogenization, and emulsification in laboratory applications.
Features:
1. LCD display.
2. Temperature alarm setting range: 0~100℃.
3. Ultrasonic time setting for on and off: 0.1~9.9s.
4. Audible alarm for: Over temperature, over power, over time.
Technical Parameters:
|
Model |
UCD-P01 |
|
Frequency(KHz) |
20~30, frequency automatic tracking |
|
Crushing Capacity(ml) |
0.1~150ml(need to choose the corresponding horn) |
|
Standard Amplitude Pole∅(mm) |
3 or 5 |
|
Optional Amplitude Pole∅(mm) |
2, 3, 5, 6 |
|
Other Optional Accessories |
Foot switch, sound proof box, bracket |
|
Ultrasonic Power(W) |
2.5~250W, adjustable |
|
Power Supply |
AC220V±10%, 50/60Hz(Standard); AC110V, 60Hz(Optional) |
|
Package Size(W*D*H) |
470*305*430mm(Main body); 350*350*550mm(Soundproof box) |
|
Gross Weight |
16(Main body); 10(Soundproof box) |
