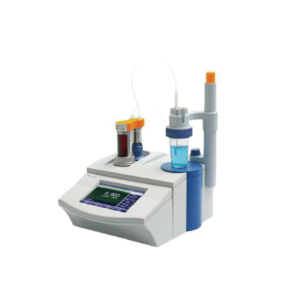

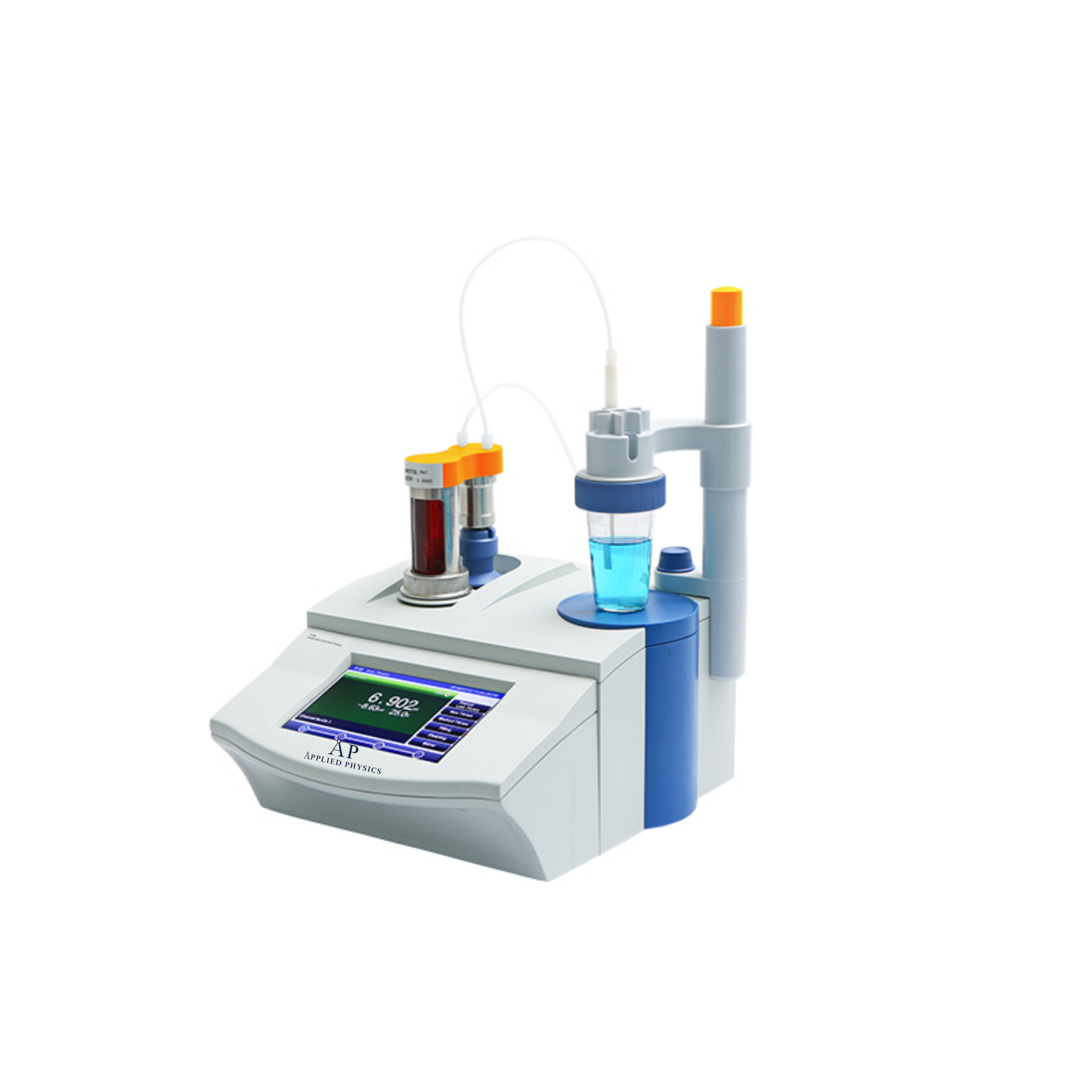

Potential Titrator Ti-50

Description

Potential Titrator Ti-50

Features:

1. 7-inch TFT color touchscreen with sliding operation and stylus, easy to use and calibrate.

2. Integrated valve-burette design (replaceable directly), supports 10mL/20mL burettes, reducing cross-contamination.

3. Optimized transmission system (compact, low noise); PWM-adjustable stirrer (45 speed levels), supports upper/lower stirrers (lower included).

4. Perchloric acid-resistant titration system, supports non-aqueous titration and dual high-impedance input.

5. Default potential measurement unit, expandable to dead-stop, conductivity, and other units.

6. 7 built-in standard titration methods; supports user-defined methods and complex process editing.

7. Stores up to 100 methods (200 via USB); enables viewing, copying, editing, and shortcut access.

8. Automatic pH electrode calibration (up to 3 points), recognizes GB/DIN/NIST buffers.

9. Manages up to 5 titrants (validity, concentration/titer); custom result calculation formulas (max 50 characters).

10. GLP-compliant, stores 200 sets of data with power-off protection.

11. Real-time display of titration curves/data; statistical analysis (avg, SD, RSD) for up to 20 results.

12. Multiple titration start modes; supports batch titration (max 20 samples) with autosampler.

13. RS232/USB interfaces for printer/PC connection; firmware upgrade via USB.

14. 8-user account management with password; Chinese/English support; built-in operation guide.

15. Independent device management (titration unit, stirrer, etc.); supports electrode/burette calibration and maintenance.

Technical Parameters:

Model

Ti-50

Measuring Range

pH: 0.000~14.000pH

mV: -1999.90~1999.90mV

Temp: -5.0~105.0°C

Measuring Resolution

mV: 0.01mV

pH: 0.001pH

Temp: 0.1°C

Measuring Accuracy

pH: ±0.01pH ±1 bit

mV: ±0.03% (full scale)

Temp: ±0.3°C

Burette Volume Accuracy

10ml burette: ±0.025ml

20ml burette: ±0.035ml

Burette Supplementary Speed

55±10s(when burette is full scale)

Reproducibility of Titration Analysis

0.2%

Reproducibility of Electric Unit

≤0.2mV

Stability of Electric Unit

±0.3 mV±1 bit/3h

Sensitive of Control Titration

±2mV

Environments Temperature

5.0~35.0 °C

Relative Humidity

≤80%

Power Supply

AC100~240V, 50/60Hz

External Size(W*D*H)

Main Titration Device

340*400*400mm

Auxiliary Titration Device

200*110*230mm

Package Size(W*D*H)

570*520*520mm

Net Weight

10kg

Gross Weight

16kg
