Introduction：
The NTV-T2 series integrates viscosity measurement and precise temperature control, which helps to test the performance change of the sample to predict the behavior of the product. Controlling the temperature helps to ensure the accuracy of the experimental results of measuring viscosity.
$0.00

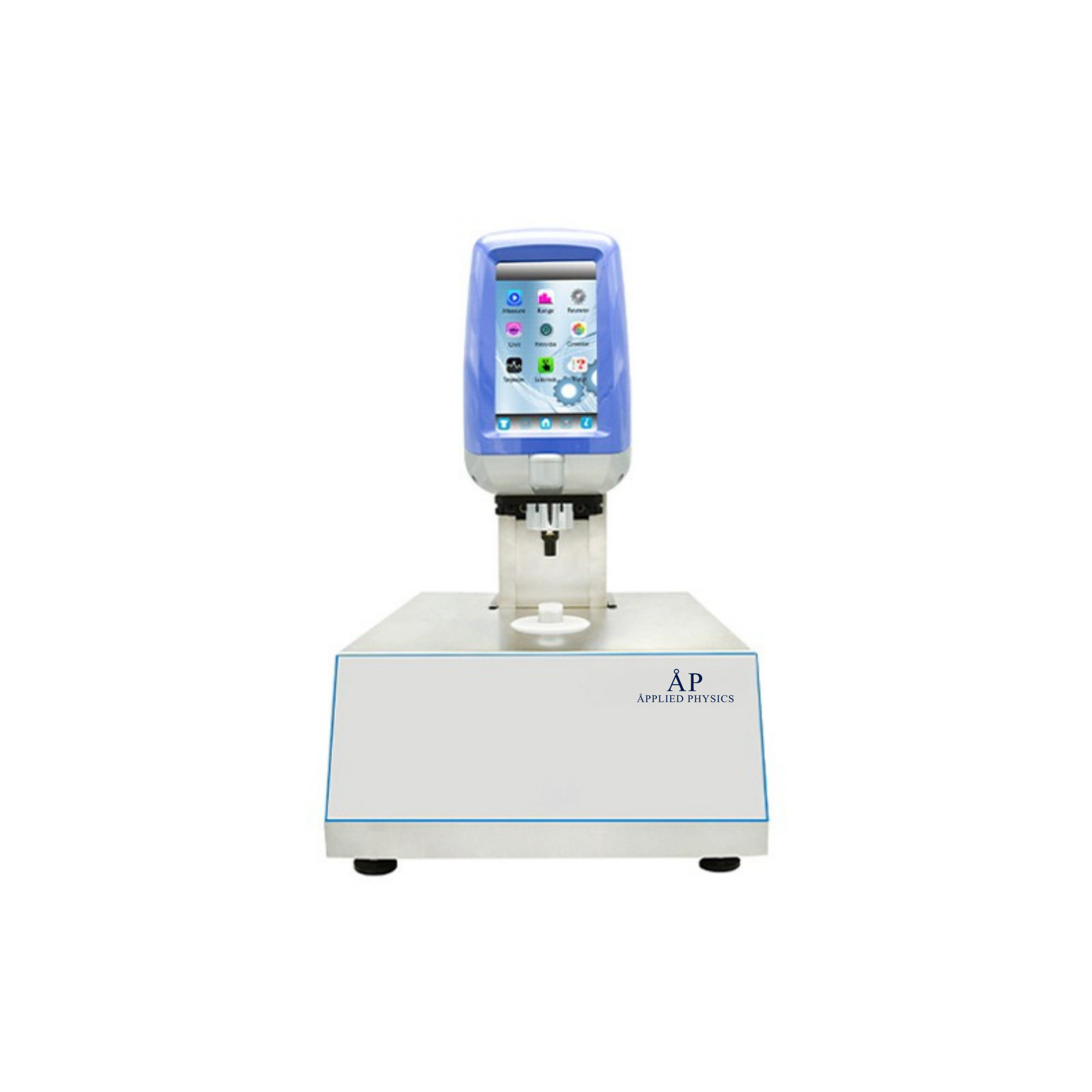

Rheometer
Features:
1. 7 inch wide touch screen.
2. Shear rate and shear stress displayed.
3. Electric lift, precise positioning.
4. Small sample bucket for easy loading, unloading and cleaning.
5. Short constant temperature time.
6. Password protected temperature and viscosity correction coefficient.
7. The rheological curve can be drawn by simple programming control.
8. Temperature control can be controlled by this all-in-one or DV software.
Technical Parameter:
Model
NTV-T2L
NTV-T2R
NTV-T2HA
NTV-T2HB
Measured Range(mPa·s)
5~1M
25~10M
50~20M
200~80M
Rotation Speed(rpm)
0.1~200(non-polar shift)
Number of Spindle
Standard: 4 types(SC4-21, SC4-27~29)
Optional: 7 types(SC4-14~16, SC4-18, SC4-25, SC4-31, SC4-34)
Sample Capacity
2~16ml
Temp. Range
-1℃~150℃
Temp. Accuracy
±0.1℃
Measurement Accuracy
±1.0%(FS)
Repeatability
0.5%(FS)
Input Power
AC100V~240V, 50/60Hz
Output Power
DC15V 1.2A
Storage
Support external USB disk data storage.
Three saving modes: single point, continuous and timed.
Standard Accessory
RS232-USB output interface, Small sample adapter, Cylindrical Sample sleeve, Temperature controller
Optional Accessory
DV Software, Standard oil, Micro printer
Package Size
500*440*650mm
Gross Weight
28kg
| Model | NTV-T2HA, NTV-T2HB, NTV-T2L, NTV-T2R |
|---|
