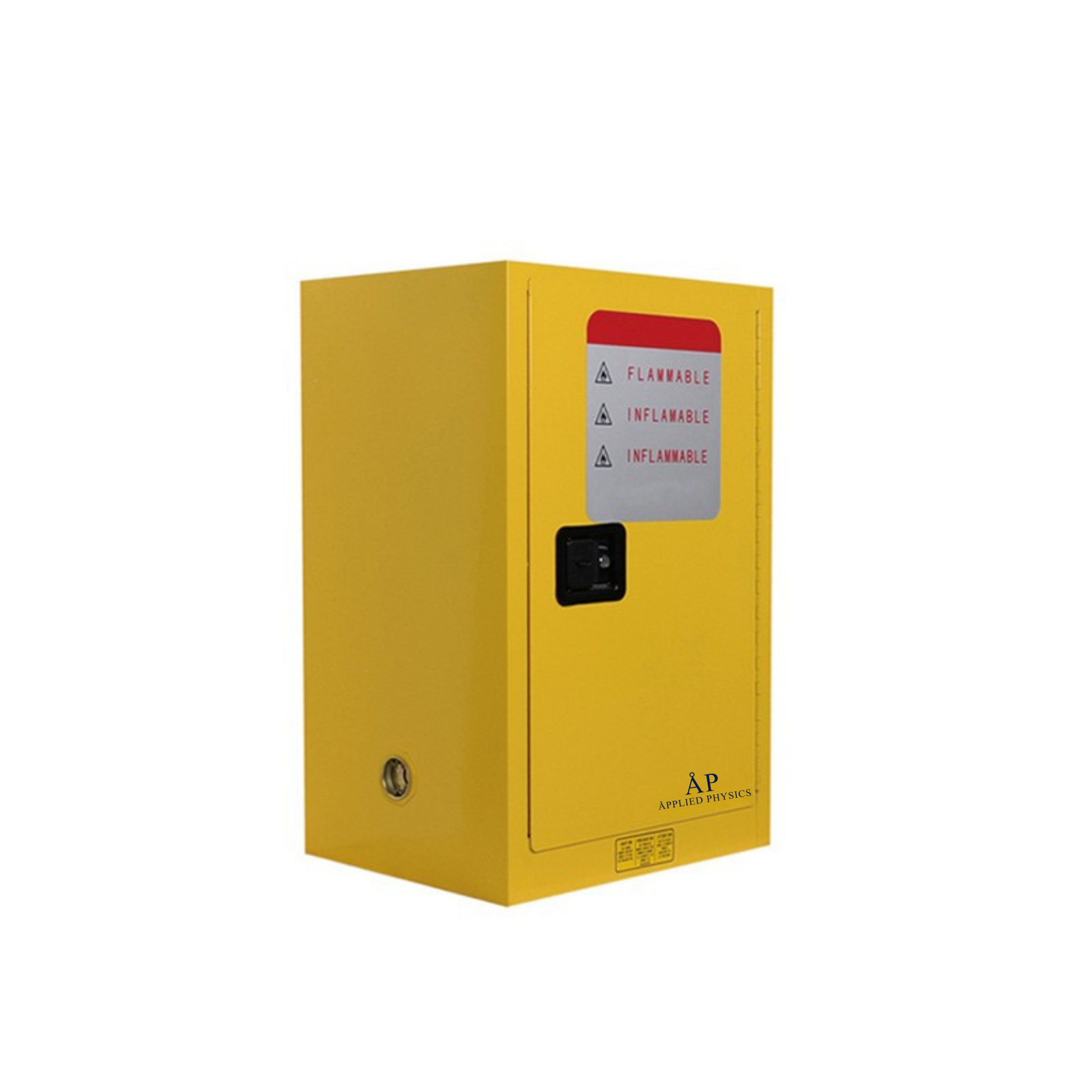

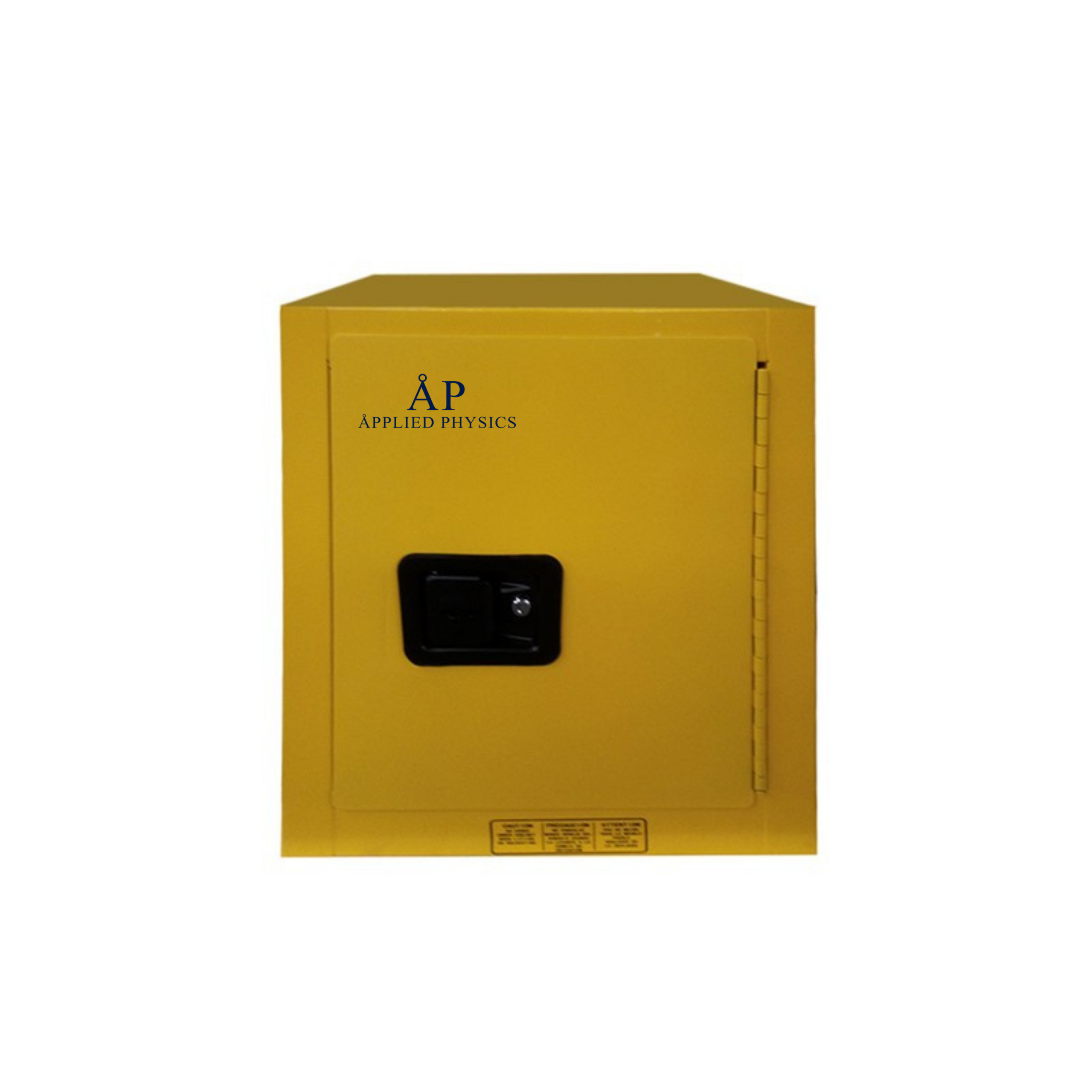

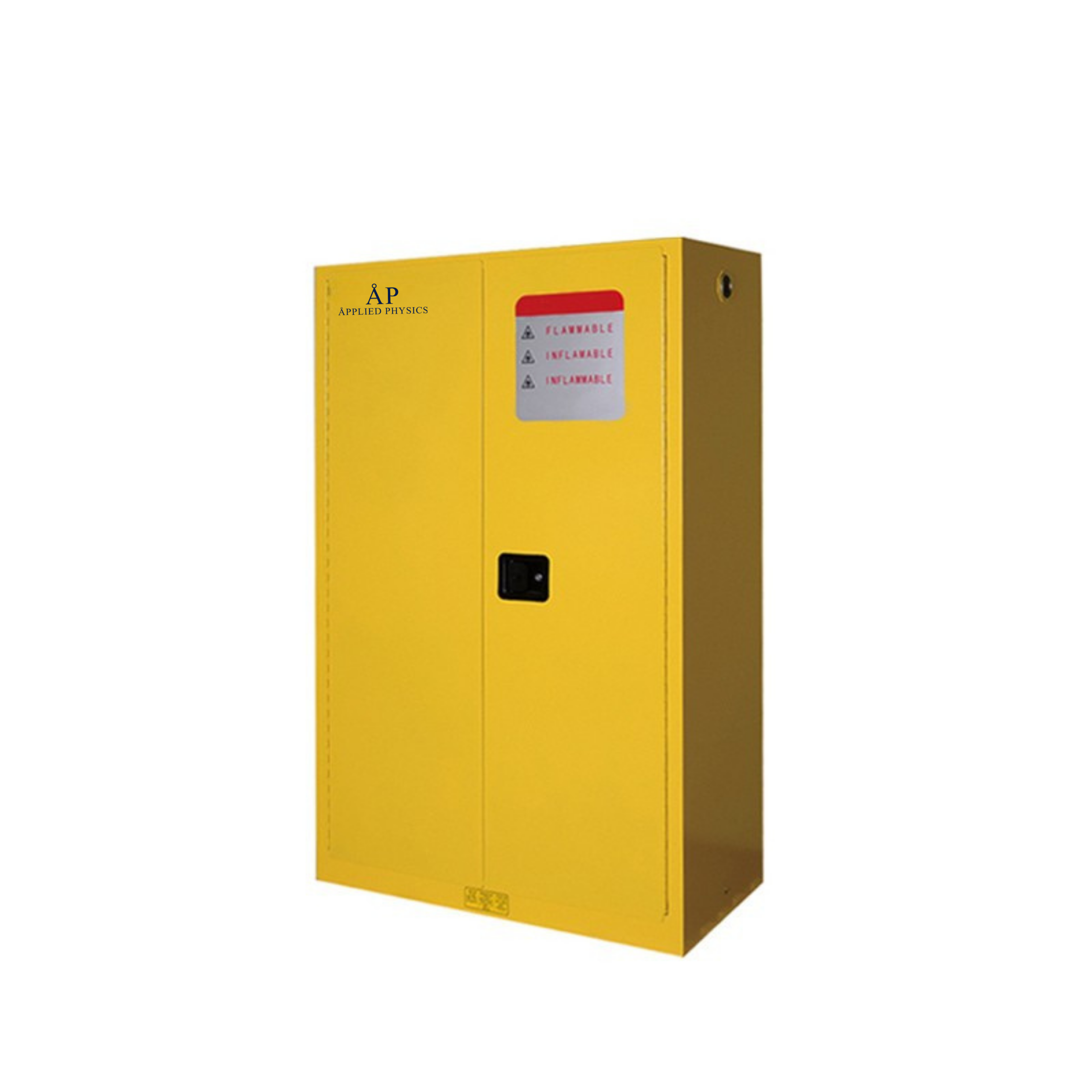

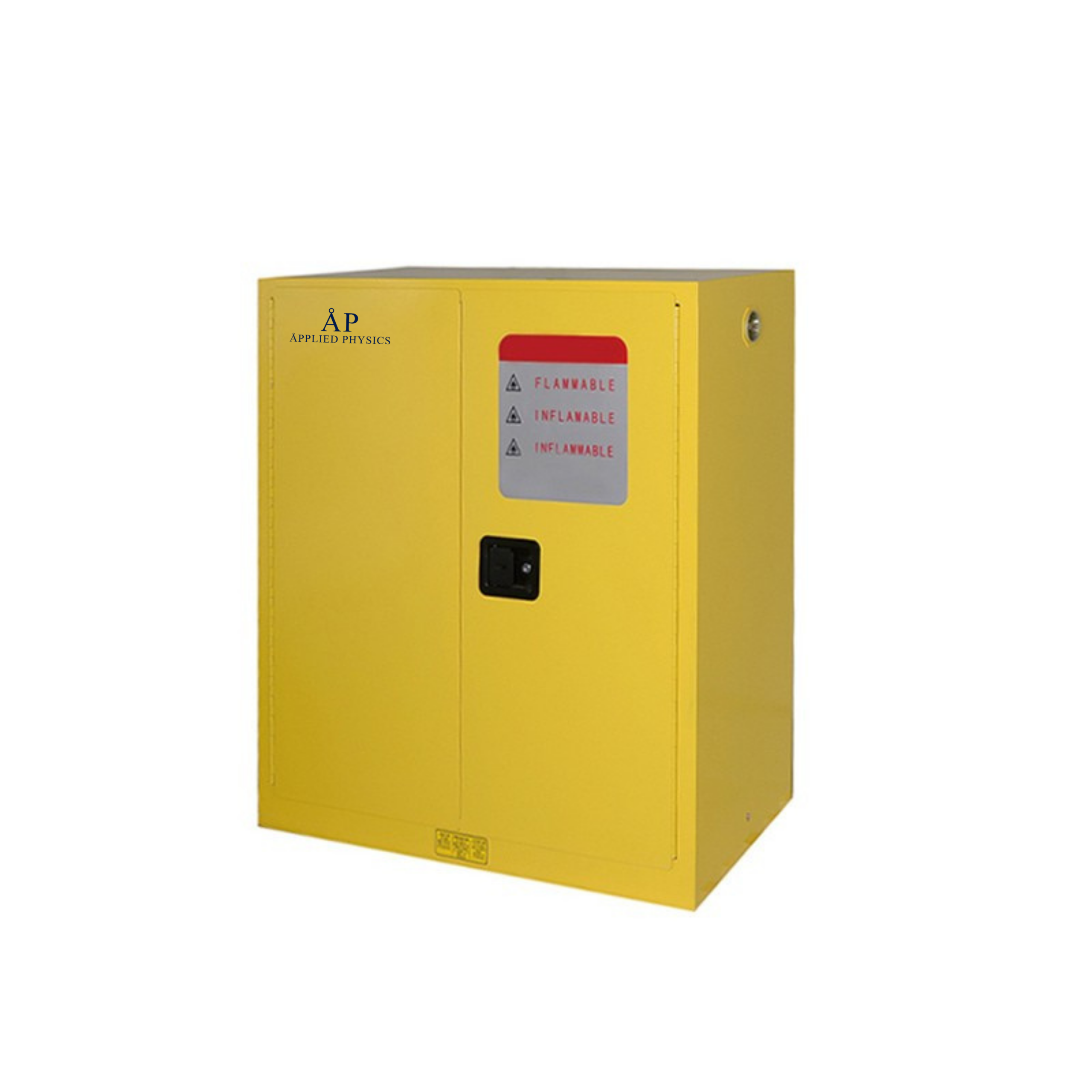

Safety Storage Cabinet BKSC-Y

Description

Safety Storage Cabinet BKSC-Y

Features:
1. Two-layer anti-fire steel plate with 38mm between two steel plates for insulation.

2. Main body material: 1.0mm steel plate painted with epoxy resin.

3. Safety: Three-linkage lock. The door has two keys and is available to use padlock which realize safe management of double-locked with two key holders.

4. 50mm height anti-leakage liquid tank ensures no liquid overflow.

5. Specific warning labels for different kinds of safety storage cabinet.

6. Installed with double air vents which are set with anti-fire devices.

7. Adjustable anti-leakage shelves.

8. An electrostatic grounded conductive port for easy connection to an electrostatic ground wire.

Flammable Chemicals Storage Cabinet

Technical Parameters:

Model

BKSC-4Y

BKSC-12Y

BKSC-22Y

BKSC-30Y

BKSC-45Y

BKSC-60Y

BKSC-90Y

Capacity

4 gallon(15L)

12 galton(45L)

22 gallon(83L)

30 gallon(114L)

45 gallon(170L)

60 gallon(227L)

90 gallon(340L)

Material

Double-layer anti-fire cold-rolled steel

Adjustable Shelf

1pc

3pcs

1pc

2pcs

Door

Single/Manual

Double/Manual

External Size(W*D*H)mm

430*430*560

590*460*890

600*460*1650

1090*460*1120

1090*460*1650

860*860*1650

1090*860*1650

Package Size(W*D*H)mm

505*505*585

665*535*915

680*540*1790

1170*540*1260

1170*540*1790

940*940*1790

1170*940*1790

Gross Weight

28kg

50kg

93kg

101kg

138kg

170kg

200kg

AP Medical series yellow safety cabinet for storing all kinds of flammable materials, with flashing point below 45°C.
