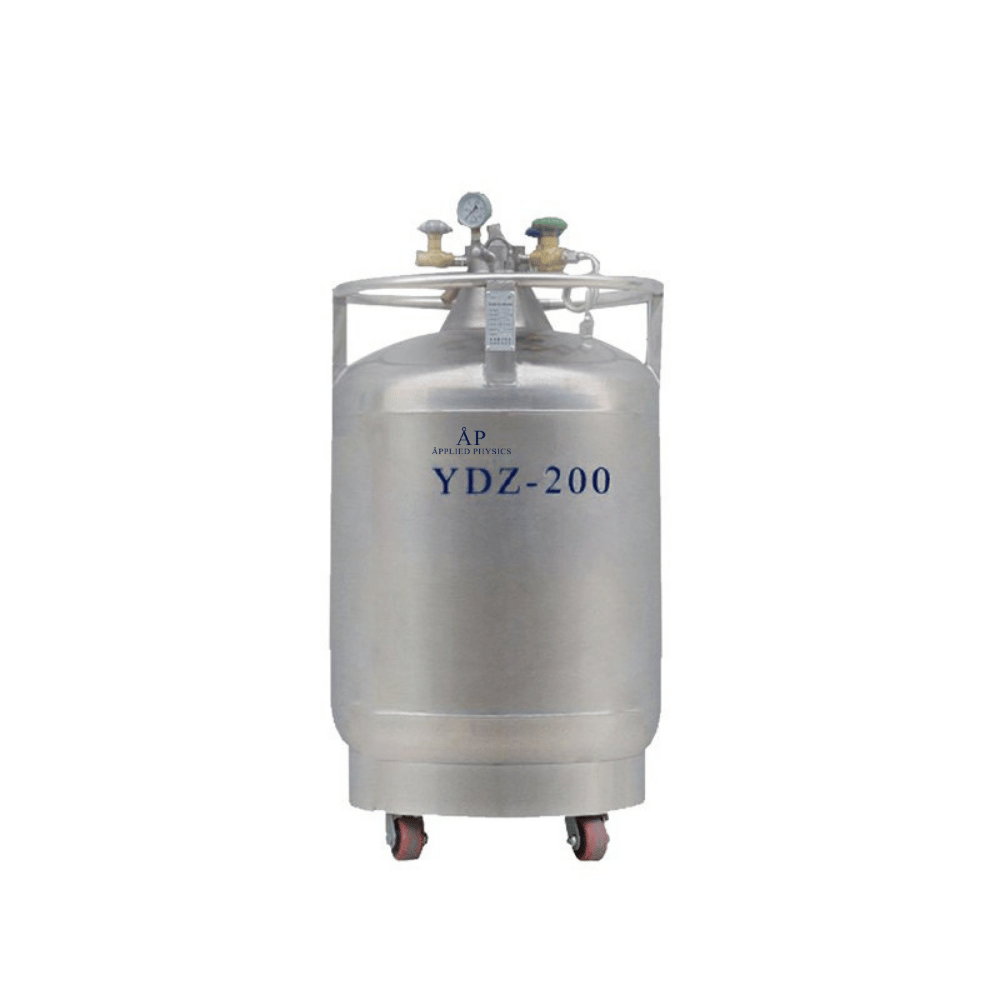

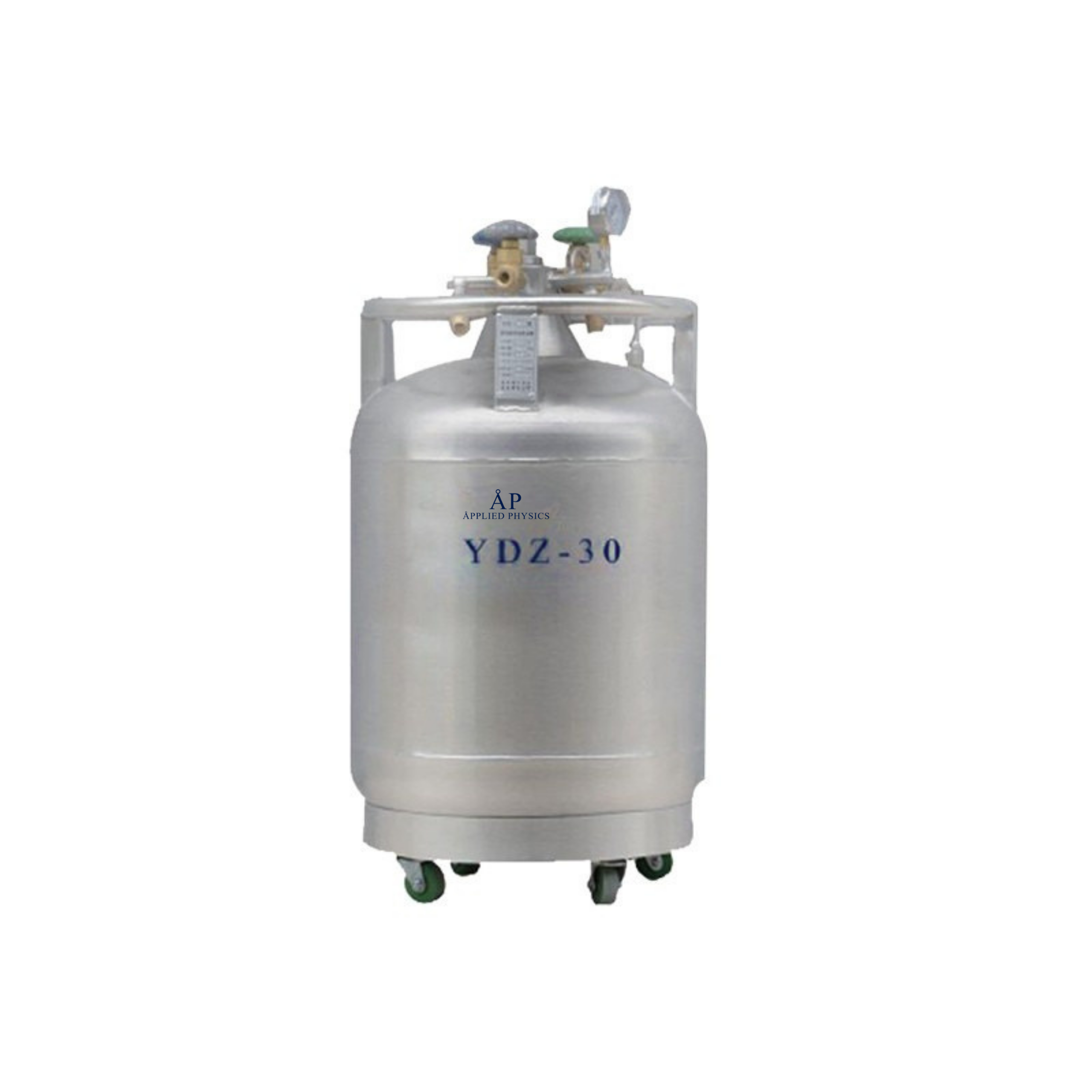

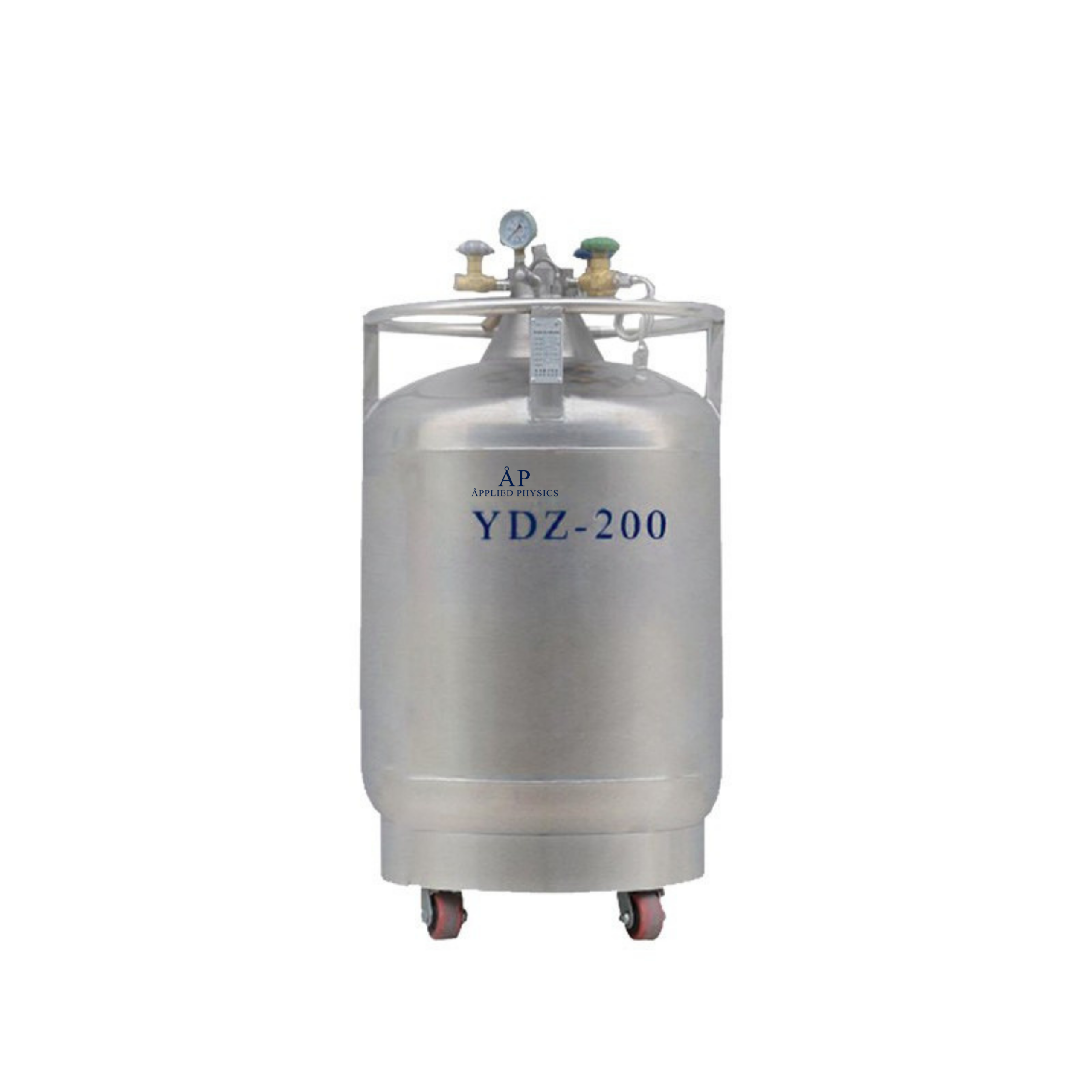

Self-pressurized Liquid Nitrogen Tank
Technical Parameters:
Model
YDZ-30
YDZ-200
Capacity（L）
30
200
Net Weight（kg）
45
120
Caliber（mm）
50
50
Height（mm）
850
1310
Static Evaporation Rate（L/d)
2.5
1.2
Outer Diameter（mm）
450
650
Standard Working Pressure（Mpa）
0.05
0.05
Maximum Working Pressure（Mpa）
0.09
0.09
Primary Safety Valve Opening Pressure（Mpa）
0.09
0.09
Second Safety Valve Opening Pressure（Mpa）
0.15
0.15
Pressure Gauge Range（Mpa）
0-0.25
0-0.25
| Model | Features:, Has a perfect safety structure, low evaporation loss rate, Optional automatic rehydration function., Optional liquid level gauge, Optional low temperature regulator, Optional low temperature solenoid valve, stainless steel tank, Unique neck design, With casters for easy movement, With liquid level gauge for, With protective operating ring, YDZ-200 |
|---|
