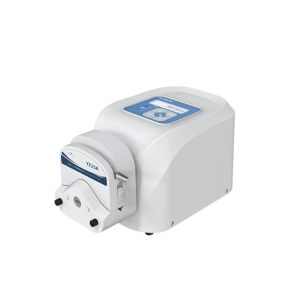

Standard Peristaltic Pump BT-S Series

Description

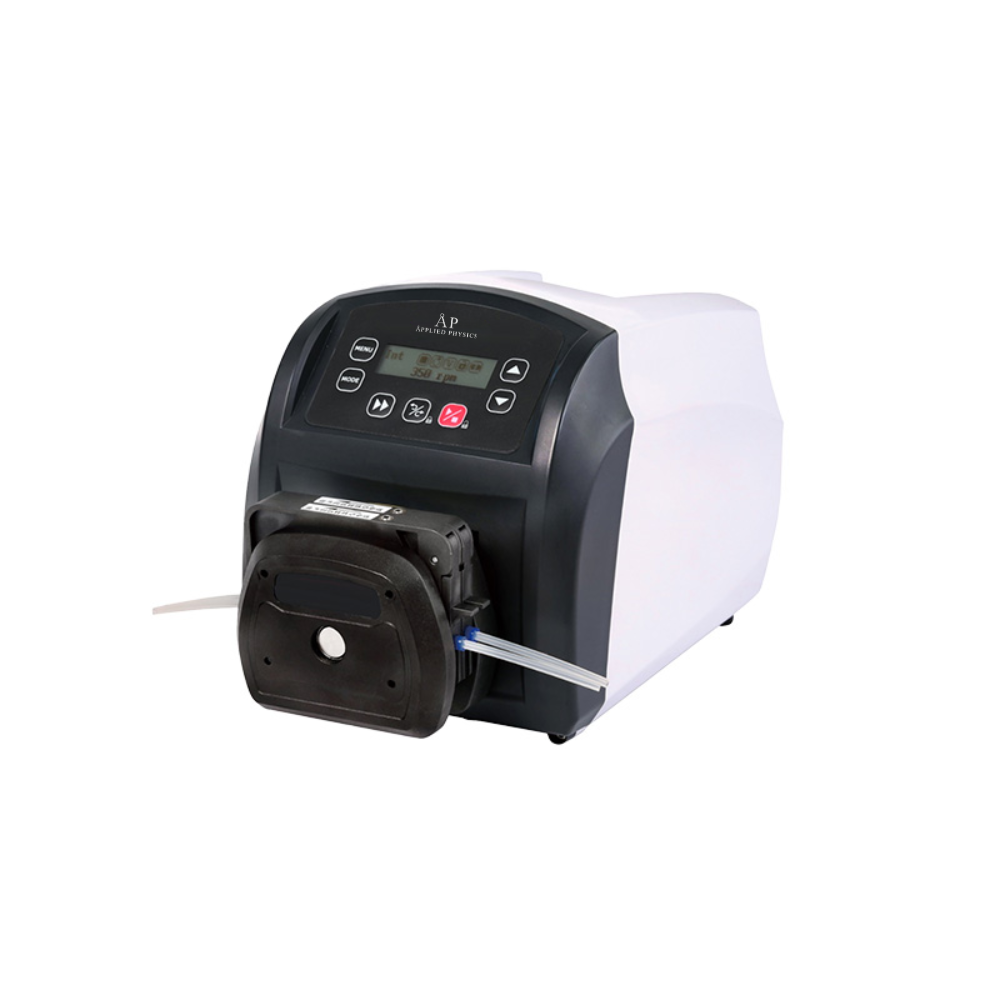

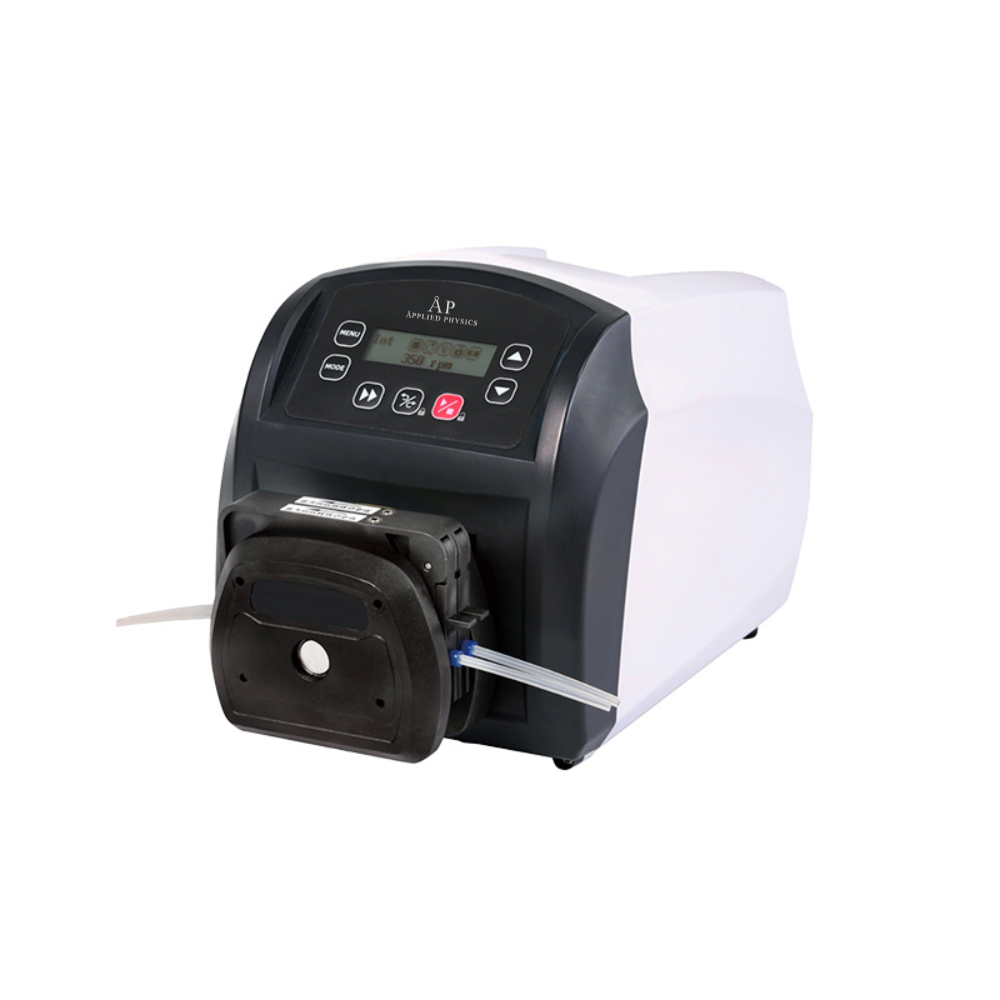

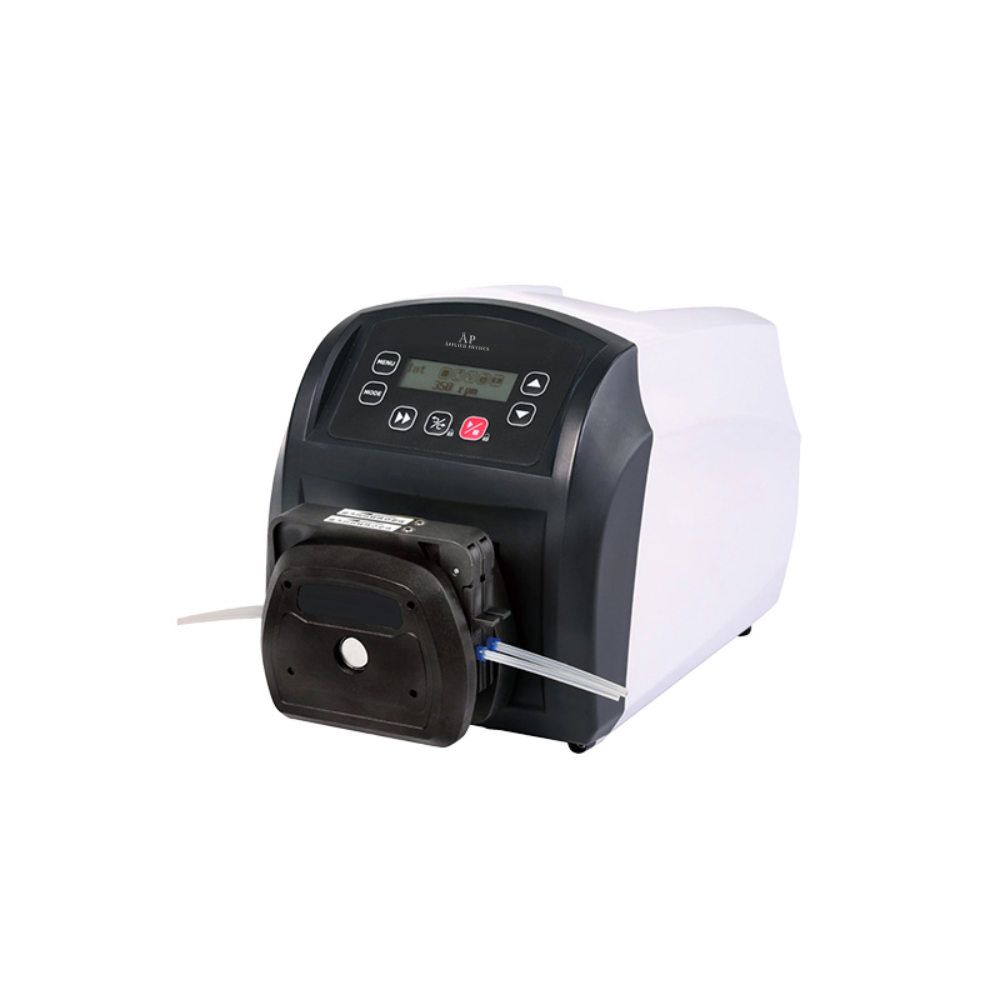

Standard Peristaltic Pump BT-S Series

Features：

1. 128*32 LCD screen, Chinese and English switching, simple parameter setting, intuitive status display.

2. It can realize start and stop, speed regulation, timing operation and other operations remotely through the Lead Fluid APP software, and has monitoring functions such as shutdown alarm, pump tube replacement reminder and so on(optional).

3. Delay start and delay stop function.

4. Start/stop, reversible direction, full speed, adjust speed, state memory(power-down-memory).

5. External analog speed regulation, external control signal control start and stop, positive and negative, physical isolation of external control signal.

6. External control signal supports 5-24v wide voltage input.

7. External speed control signal type(voltage or current) can be switched through the control panel.

8. RS485 communication interface, MODBUS protocol is available, support communication parameter setting easy to connect other equipment.

9. Set multiple control parameters for ODM customization application.

10. Circuit board with conformal coating makes it dust-proof and moisture-proof.

11. Super anti-interference feature, wide input voltage range, acceptable for the complex power environment .

12. ABS plastic housing, creative streamlined appearance, beautiful and simple.

Technical Parameters：

Model

BT101S

BT301S

BT601S

FIow Range

0.0001~720ml/min

0.005~1750ml/min

0.006~3000ml/min

Rotation Range

0.1~150rpm

0.1~350rpm

0.1~600rpm

Speed Resolution

0.1~100rpm: 0.1 rpm; 100~600rpm: 1rpm

Speed Accuracy

<±0.5%

Power Supply

AC100~240V, 50Hz/60Hz

Power

<30W

<40W

<50W

External Control Interface

External control input level 5V, 12V(standard), 24V(optional);

External control analog 0~5V(standard), 0~10V, 4~20mA(optional)

Communication Interface

RS485 communication, compatible with Modbus protocol

Working Environment

Ambient temperature 0~40°C, relative humidity <80%

Protection Level

IP31

Overall Dimensions(L*W*H)

261*180*197mm

Drive Weight

4.5kg

4.7kg

4.9kg

Packing Size

430*290*320mm

Gross Weight

8kg

Pump Head:

Applicable Pump Head, Hose& Flow Parameters:

Driver Model

Applicable

Pump Head

Number

Of Channels

Applicable Hose

Single Channel

Flow Rate(ml/min)

BT101S

DG/DS(6 rollers)

1, 2, 4

Wall 0.8~1mm, ID≤3.17mm

0.00016~49

DG/DS(10 rollers)

1, 2, 4

Wall 0.8~1mm, ID≤3.17mm

0.00011~32

DT10-18/28

1, 2

13#14#, Wall 0.8~1mm, ID≤3.17mm

0.00023~64

YZ15/YZ15T

1, 2

13#14#19#16#25#17#18#

0.005~641

YT25

1

114#116#15#24#35#36#

0.024~750

BT301S

YZ15/YZ15T

1, 2

13#14#19#16#25#17#18#

0.005~1495

YT25

1

114#116#15#24#35#36#

0.024~1750

BT601S

YZ15/YZ15T

1, 2

13#14#19#16#25#17#18#

0.005~2562

YT25

1

114#116#15#24#35#36#

0.024~3000

Remark: Customers can choose any one model hose as the standard configuration and the standard length is 2 meters.
