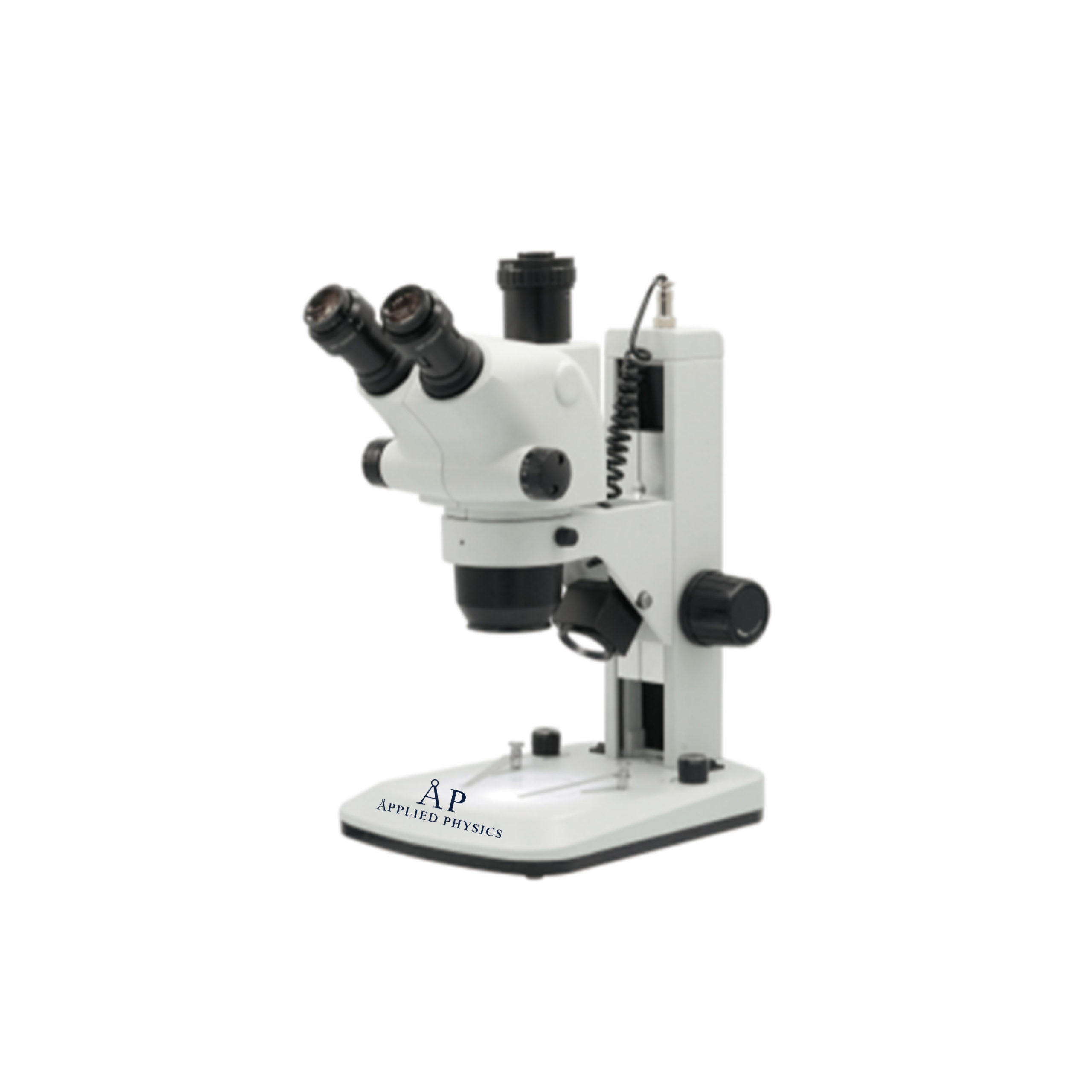

Stereo Zoom Microscope BM-9T(Customized)

The stereozoom microscope ‌ is a microscope that combines zoom technology and stereoscopic microscopy, which allows the user to view the sample in different focal planes, resulting in a sharper and three-dimensional image. The stereo zoom microscope adjusts the focal length through the zoom technology to observe different levels of the sample, while the stereo microscopy technology combines multiple view images of the sample into a stereo image to display the three-dimensional structure of the sample.

$0.00

SKU AP-Stereo-Zoom-Microscope-BM-9T-Customized Categories , Tag

Description

Stereo Zoom Microscope BM-9T(Customized)

Technical Parameters:

Adjustable Eyepiece

working distance110mm

10Xφ22mm

magnification

field diameter

6.5X

32.2mm

65X

3.4mm

Zoom Ratio

1:10(0.65X-6.5X)

magnification

6.5-65X

Interpupillary Distance

55mm~75mm

Focus arm

76mm Diamator32mm pole size

Working distance

255mm

Light Source

Upper and Lower 2WLED light source,yellow and white light control alone,Adjustable Brightness

Stage

Black/White plate,Glass plate for option

Additional information

Model

BM-9T
