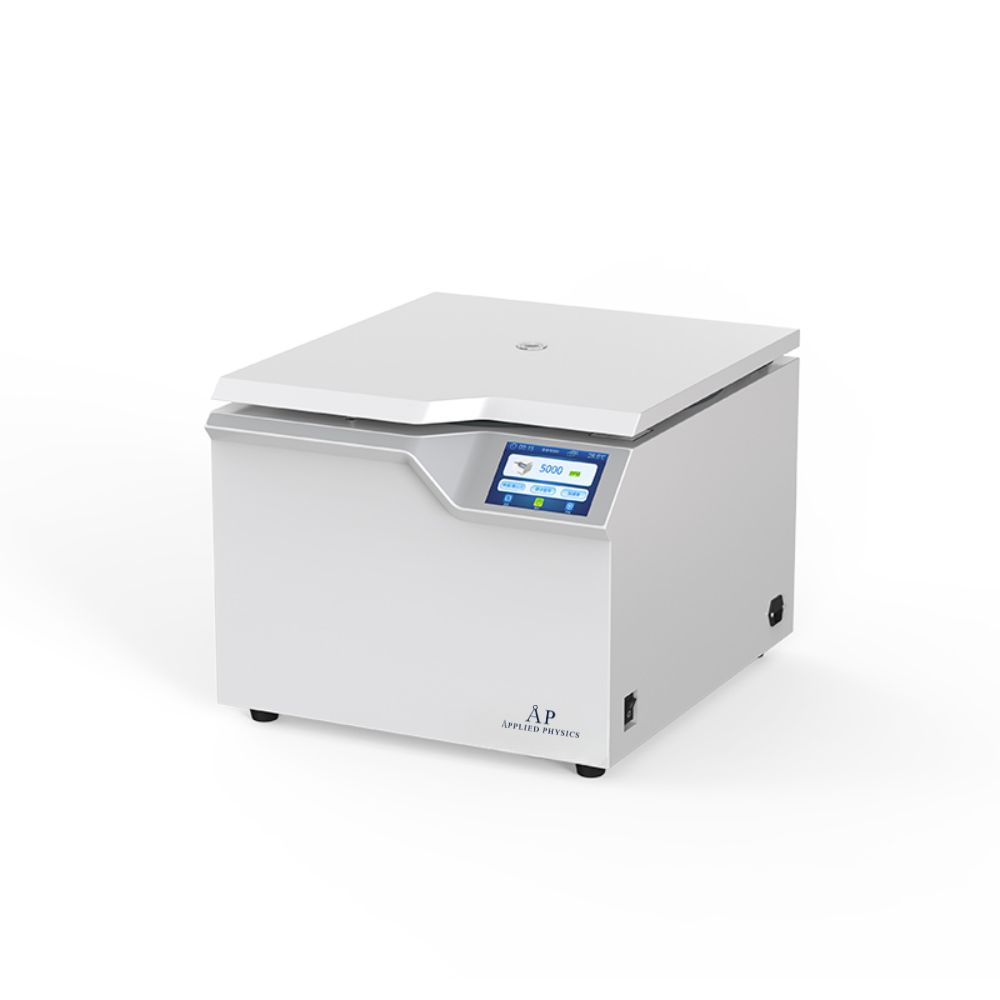

Table Top Low Speed Centrifuge-BKC-TL5B

Description

Table Top Low Speed Centrifuge-BKC-TL5B

Features:

1. It can store 100 programs, automatic memory form the lasting running programs.

2. Adjustable acceleration levels: 20, deceleration levels: 20.

3. All-metal structure multi-layer explosion-proof design, strong and durable.

4. Embedded microprocessor control, DC brush less motor drive, maintenance free, smooth operation.

5. 5 inch touch LCD screen, real-time display all running parameters, the operation interface is intuitive and simple.

6. Support small language customization.

7. Mechanical and electrical integration door lock, easy to use, safe and reliable.

8. Silicone integral sealing ring to avoid aerosol overflow.

9. With self-test, block, over speed, imbalance, over temperature detection and alarm functions, excellent shock absorption device.

10. Store multiple groups of user-defined programs, boot for the last program.

11. Optional automatic rotor recognition.

Technical Parameters:

Model

BKC-TL5B

Max.Speed

5000rpm

Max.RCF

3962×g

Max.Capacity

4*300ml

Speed Precision

±10rpm

Time Range

1s~99h59min/Continuous/Short-span

Power Supply

Standard: AC220V, 50/60Hz

Optional: AC110V, 50/60Hz

Noise

≤65dB(A)

External Size(L*W*H)

430*565*410mm

Package Size(L*W*H)

596*736*650mm

Net Weight

43kg

Gross Weight

55kg(220V), 60kg(110V)

Rotor:

Type

NO.

Volume

Max. Speed(r/min)

Max. RCF(×g)

Adapters

Swing Rotor

5M00024

48*2/3/4/5/7ml

4000

2952

/

5M00025

48*5/7ml

2952

2/3/4ml

blood collection tube

5M00026

72*2/3/4/5/7ml

2808

/

5M00029

16*10/15ml

2957

2/3/4ml blood collection tube, 5/7ml blood collection tube, 15ml(▲)

5M00030

24*10/15ml

2957

5M00031

32*10/15ml

2952

5M00032

4*50ml

4500

3962

50ml(▲), 20ml, 15ml, 10ml, 5ml, 1.5/2ml

5M00033

8*50ml

4000

2952

5M00034

4*100ml

4500

3962

16*2/3/4ml blood collection tube, 16*5/7ml blood collection tube

5M00036

8*100ml

4000

3077

32*2/3/4ml blood collection tube, 32*

5/7ml blood collection tube

5M00038

4*250ml(flat bottom)

2780

48*1.5/2ml, 40*2/3/4/5/7ml

blood collection tube,
48*2/3/4/5/7ml blood collection tube, 24*10ml(▲), 28*10ml, 20*15ml, 4*50ml(▲), 8*50ml(●), 4*100ml

5M00053

4*250ml(biosafety)

3041

5M00058

4*300ml

3220

/

Microplate Rotor

5M00045

2*2*96 well

2361

/

Angle Rotor

5M00072

12*20ml

5000

3516

15ml, 10ml, 5ml, 1.5/2ml

5M00073

12*15ml

3354

1.5/2ml,

2/3/4ml blood collection tube

5M00074

8*15/20ml

2655

5M00069

24*10/15ml

3494

2/3/4ml blood collection tube, 5/7ml blood collection tube, 15ml(▲)

5M00075

24*10ml

3354

1.5/2ml, 2/3/4ml blood collection tube

5M00076

18*10ml

3354

5M00077

12*10ml

3354

5M00084

6*50ml

2711

50ml(▲), 20ml, 15ml, 10ml, 5ml, 1.5/2ml

Note: With mark(●) or no mark is round-bottom tube, with mark(▲) is sharp-bottom tube.
