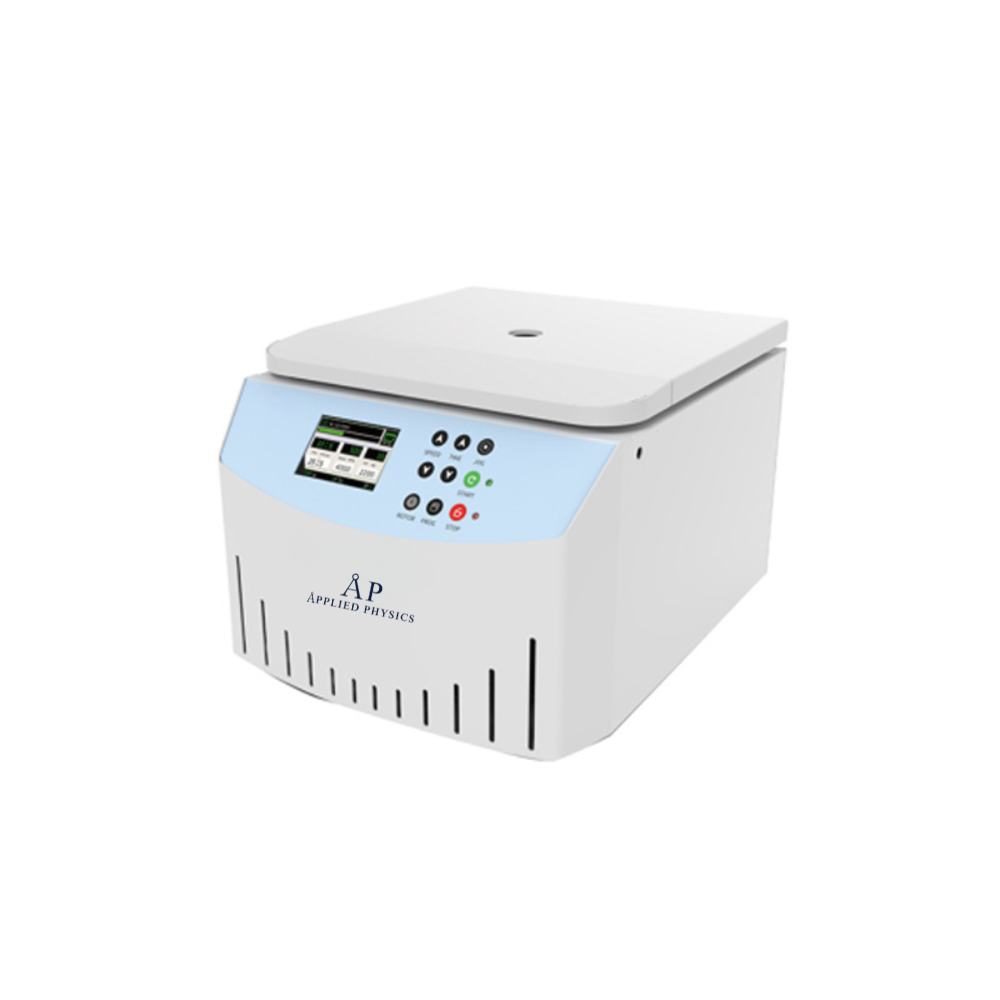

Table Top Low Speed Centrifuge BKC-TL5E

Description

Table Top Low Speed Centrifuge BKC-TL5E

Features:

1. Embedded microprocessor control, push-button programming.

2. Can store and recall 20 sets of operating programs.

3. Support speed 1rpm and time 1s fine-tuning; power-down self-recovery.

4. Adjustable parameters during operation, convenient and quick.

5. 10 lifting rates to choose from, fast lifting speeds.

6. Equipped with program memory function, automatically retains the parameters from the last run and automatically restores the set parameters before shutdown.

7. Automatic door opening and alert when centrifugation is complete.

8. Multi-stage shock absorption, multiple protection for over-speed, imbalance and door cover.

Technical Parameters:

Model

BKC-TL5E

Max Speed

5000rpm

Max RCF

3500×g

Max Capacity

4*2*100ml

Speed Precision

±1% or ±20rpm

Timing Range

1s~999min

Noise

≤65dB

Consumption

500W

Power Supply

AC110~220V, 50/60Hz

External Size(W*D*H)

540*410*330mm

Package Size(W*D*H)

666*532*522mm

Net Weight

36.5kg

Gross Weight

53kg

Rotor:

No.

Rotor

Capacity

Max. Speed(rpm)

Max. RCF(×g)

Adapter

No.1

Swing Rotor

Support

4*250ml

/

/

/

Hanging Cup

4*250ml

/

/

/

Adapter

4*1*100ml

4000

2379

/

4*1*50ml

2379

/

4*9*10ml

2379

/

Tube Rack

4*4*50ml

4000

3500

/

4*2*50ml(▲)

3023

/

4*20*5ml

3139

/

4*18*5ml blood collection tube(L106mm)

2808

72*2ml

4*12*5ml blood collection tube(L75mm)

2808

/

4*12*5ml blood collection tube(L100mm)

2808

48*2ml

4*12*5ml blood collection tube(L106mm)

2808

48*2ml

4*10*5ml blood collection tube(L106mm)

2808

40*2ml

No.2

Angle Rotor

12*10ml

5000

3440

12*5ml

No.3

Angle Rotor

18*10ml

5000

3516

18*5ml

No.4

Angle Rotor

24*10ml

5000

3516

24*5ml

No.5

Angle Rotor

8*15ml

5000

3300

/

No.6

Angle Rotor

12*15ml

5000

3438

/

No.7

Angle Rotor

12*20ml

5000

3360

/

No.8

Angle Rotor

4*50ml

5000

3400

/

No.9

Angle Rotor

6*50ml

5000

3281

/

No.10

Angle Rotor

4*100ml

4000

2100

/

Note: The default is round-bottom tube, with mark (▲) is sharp-bottom tube. The swing rotor should select support+hanging cup+adapter or support+tube rack.
