The Teaching Microscope is an advanced educational tool designed to facilitate collaborative learning in classrooms, laboratories, and training centers. It is ideal for use in educational institutions, research facilities, and medical training programs where multiple users need to observe the same specimen simultaneously.
$0.00

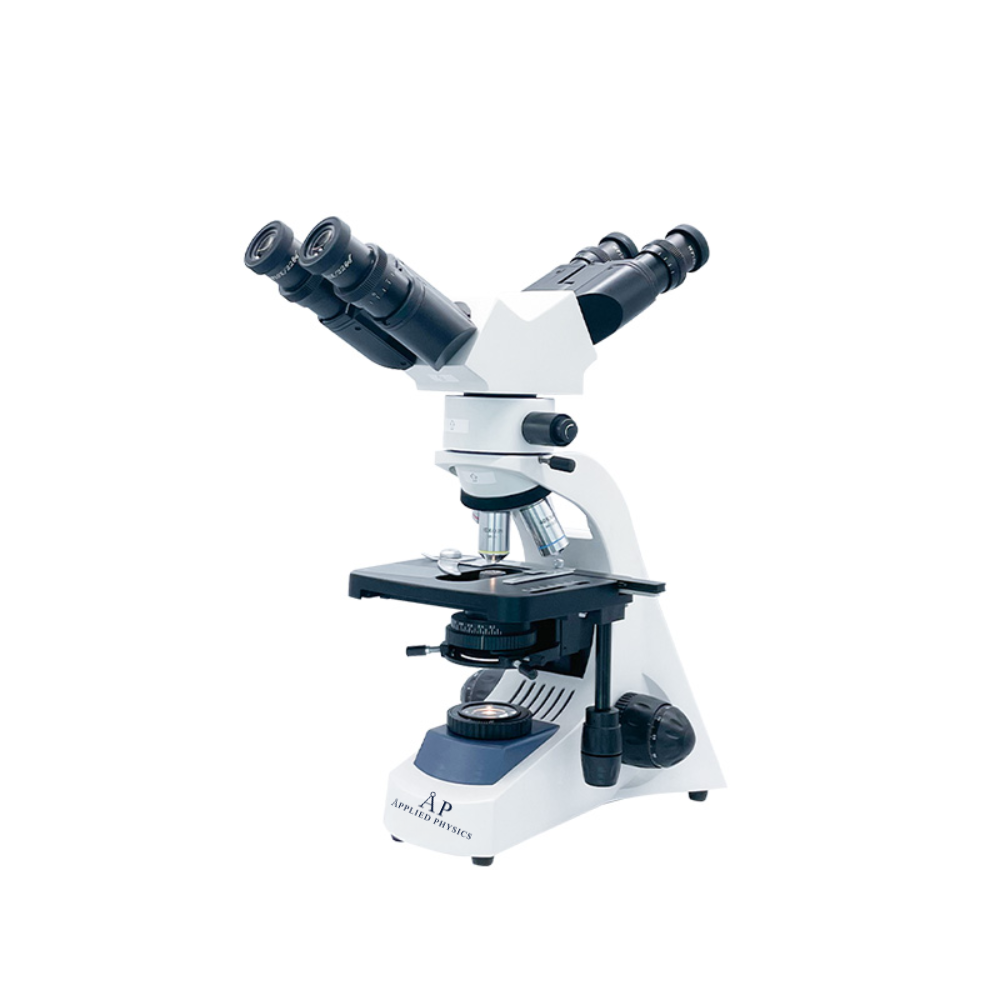

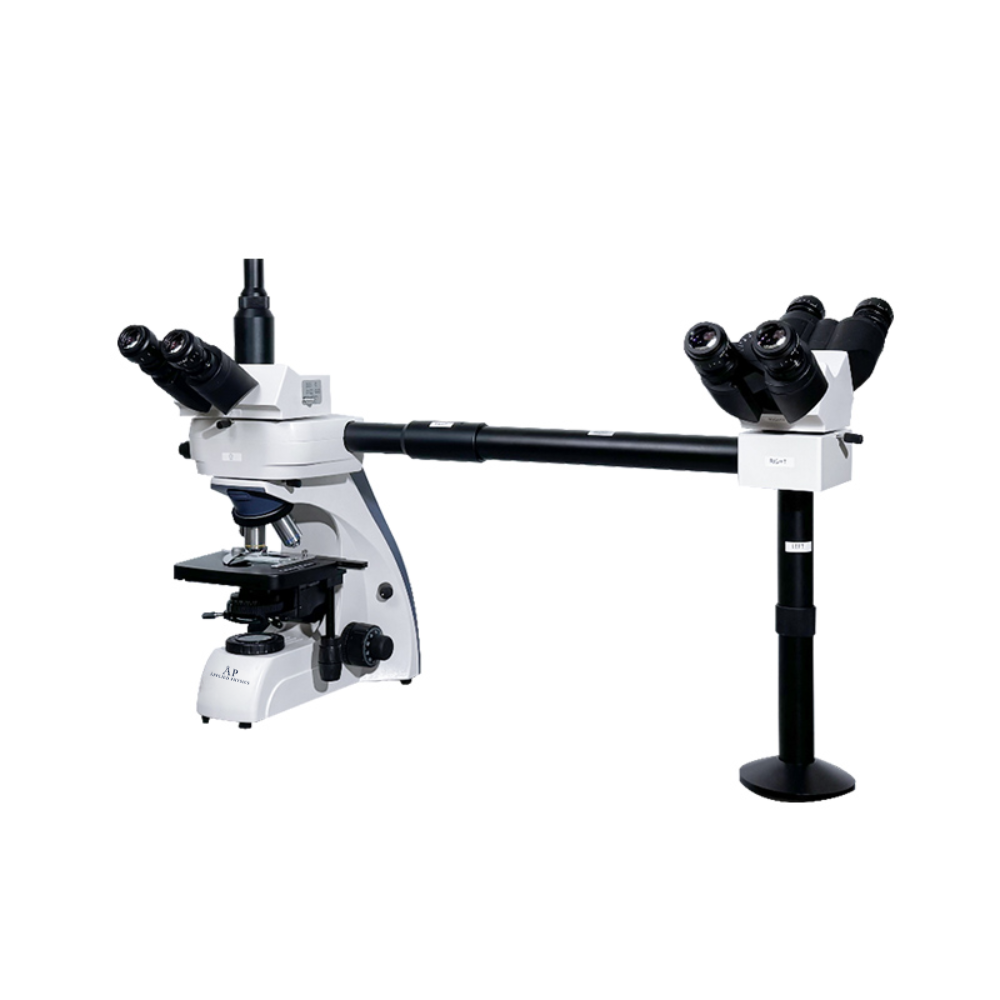

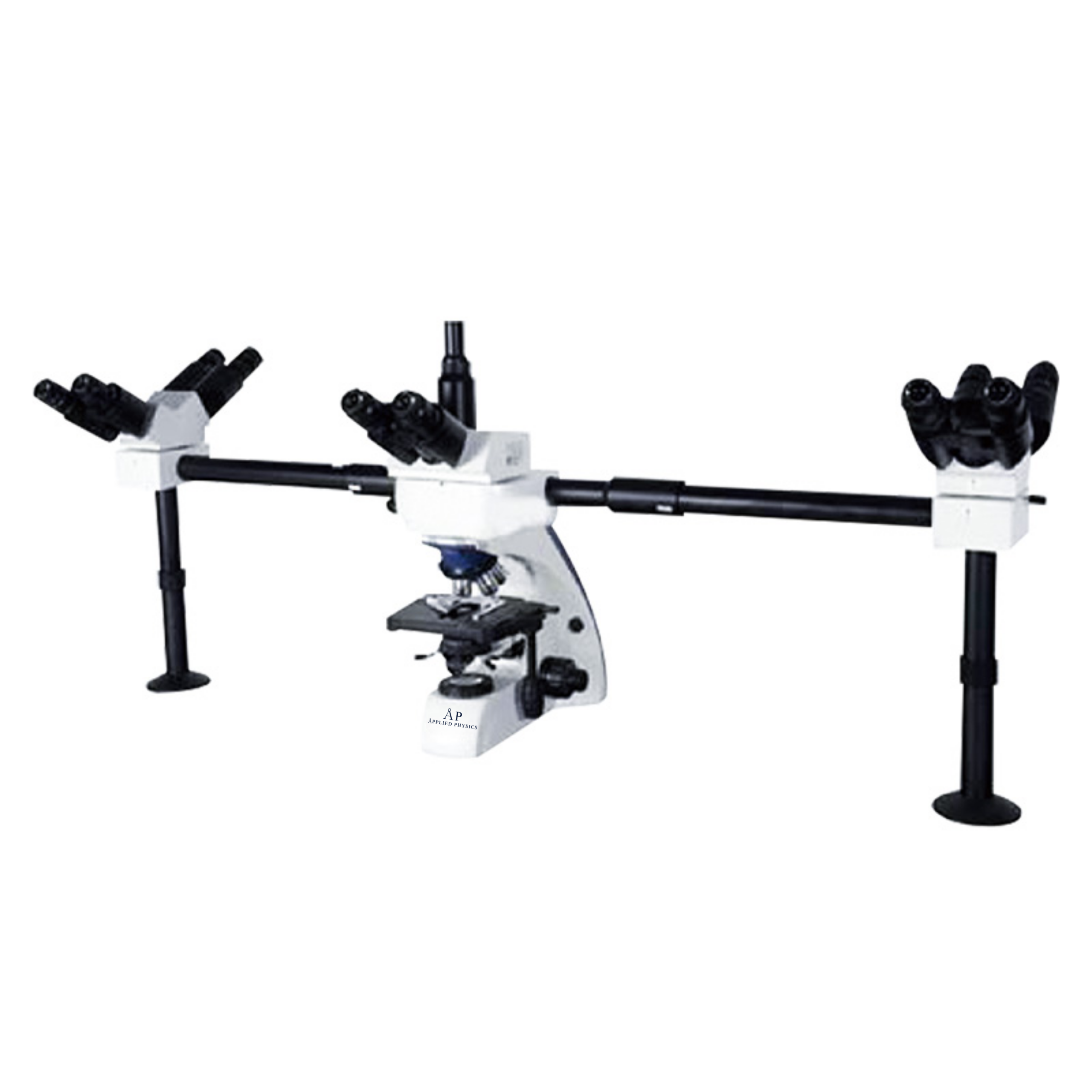

Teaching Microscope BBM-18F2 BBM-18F3 BBM-18F5
Technical Parameters：
Model
BBM-18F2
BBM-18F3
BBM-18F5
Optical System
Infinite optical system
View Head
Compensation free binocular head, Inclined at 30°, 360° rotatable, Interpupillary 55~75mm
Compensation free binocular head, Inclined at 30°, 360° rotatable, Interpupillary 50~75mm
Eyepiece
WF10X/22mm
Infinite Plan Achromatic Objective
4X, 10X, 40X(S), 100X(S, Oil)
Focusing
Coaxial Coarse & Fine Adjustable System, Fine Division 0.002mm
Stage
Double Layers Mechanical Stage 180*150mm, Moving Range 75*50mm
Double Layers Mechanical Stage 180*160mm, Moving Range 80*50mm
Condenser
Abbe NA1.25 centerable condenser with Iris Diaphragm & Filter
Indicator
LED cursor indicator
Illumination
LED lamp 5V/5W, Kohler illumination, brightness adjustable
LED lamp 5V/10W, Kohler illumination, brightness adjustable
Filter
Blue, yellow, green
Power Supply
AC85~240V, 50/60Hz
Package Size
390*290*650mm
720*550*480mm
720*550*480mm
Gross Weight
11kg
22kg
29kg
| Model | BBM-18F2, BBM-18F3, BBM-18F5 |
|---|
