The UV-Vis NIR spectrophotometer is an instrument designed for continuous scanning across the ultraviolet, visible, and near-infrared spectral regions. Its applicable fields include building energy efficiency testing, construction engineering quality inspection, automotive safety glass testing, materials science research, and scientific research in higher education institutions.
$0.00

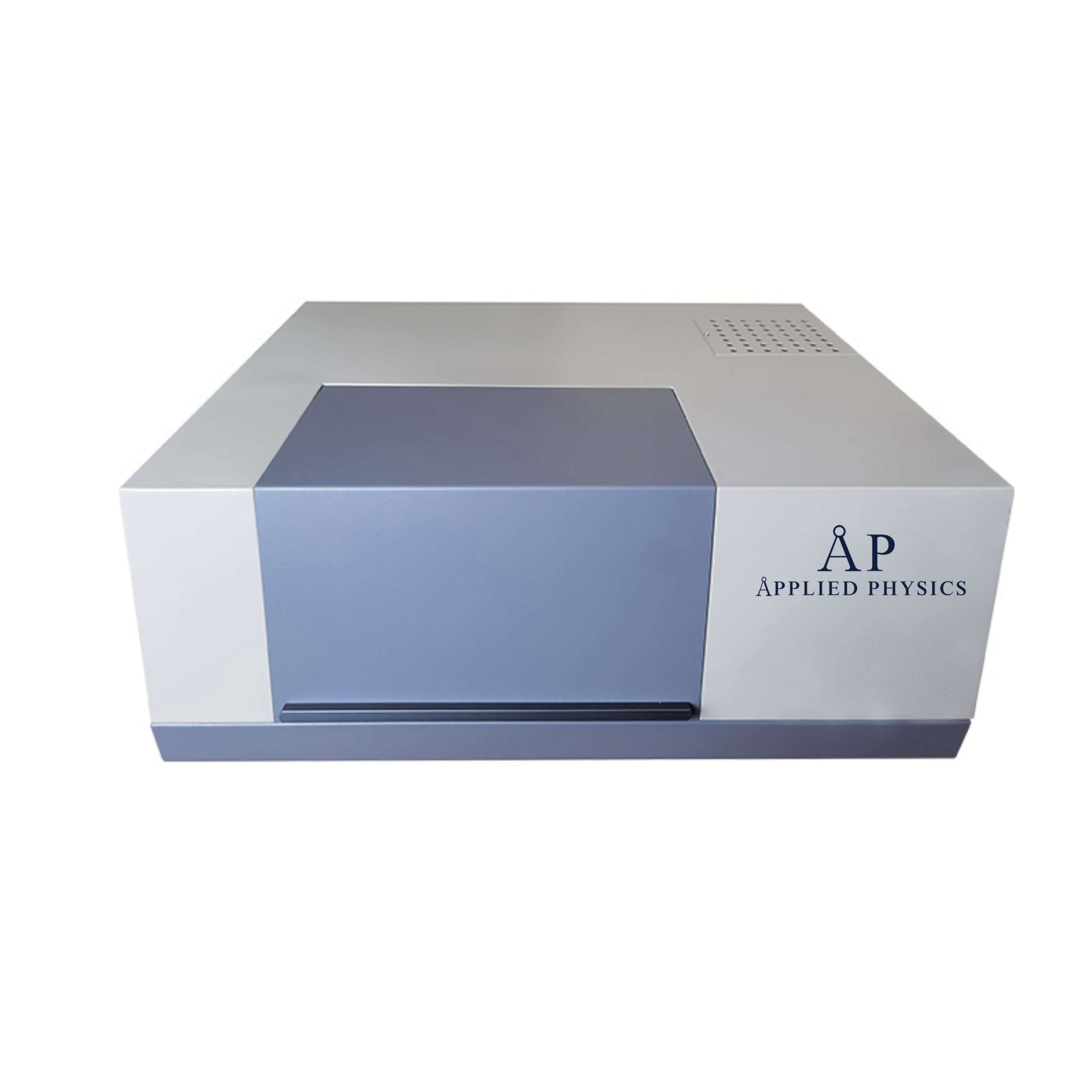

UV-Vis NIR Spectrophotometer BK-UN600PLUS
Features:
1. Featuring computer-based automatic control, automatic calibration upon startup, and automated data acquisition and processing. Dedicated to specific tasks for streamlined management.
2. Features a dual imported detector for the UV/Vis/NIR range, resulting in enhanced sensitivity for weak signals, reduced noise, and superior accuracy.
3. The control of the instrument(such as grating conversion, filter conversion, receiver conversion, wavelength scanning, etc.) is all controlled by the computer, and the interface is USB 2.0. The connection of the instrument is simple, which greatly improves the communication speed.
4. The integrated optical test system software can be selected to automatically detect the visible light transmittance, direct sunlight transmittance, direct sunlight reflectance and other related parameters of building glass.
5. The total transmittance of solar energy and the shielding coefficient of various window glass components to solar radiation heat can be obtained by cooperating with the glass hemispherical emissivity detector.
6. Special sample test accessories can be selected.
7. The software sets the import function, which can import data in text format.
8. Real time measurement of sample data, test result data can be exported.
9. The software can run under WinXP and win7 systems.
Technical Parameters:
Model
BK-UN600PLUS
Optical System
Double beam
Wavelength Range
190~3200nm(250~2500nm in integrated sphere)
Wavelength Accuracy
±0.5nm(UV/Vis)
±4nm(NIR)
Wavelength Repeatability
≤0.3nm(UV/Vis)
≤2nm(NIR)
Spectral Bandwidth
0.2~5nm(UV/Vis)
1~20nm(NIR)
Operate Mode
Transmittance, absorbance, reflectivity, energy
Raster
Diffraction grating 1200L/mm(UV/Vis)
300L/mm(NIR)
Transmittance Accuracy
±0.3%T
Transmission Specific Gravity Refolding
≤0.2%T
Stray Light
≤0.2%T(220nm, NAI)
Sampling Interval
0.1nm, 0.2nm, 0.5nm, 1nm, 1.5nm, 2nm, 5nm, 10nm
Photometric Range
0~3A
Baseline Flatness
±0.004A(200~2500nm, after preheating for 30 minutes)
Host Interface
USB2.0
Power Supply
AC 220V, 50/60Hz(Standard); 110V, 50/60Hz(Optional)
Standard Accessory
Operational software
Optional Accessory
Integrating sphere accessory(60/100/150mm); transmission accessory; reflection accessory(Only the 60mm integrating sphere accessory, transmission accessory, and reflection accessory are configurable simultaneously)
External Size(W*D*H)
700*600*260mm
Package Size(W*D*H)
860*730*400mm
Net Weight
50kg
Gross Weight
75kg
| Model | BK-UN600PLUS |
|---|
