Laboratory bottle washing machine is a kind of automatic equipment specially used for cleaning laboratory utensis, which is widely used in chemical industry, food testing, scientific research and other fields. Through high temperature, high pressure water flow and special cleaning agent, it efficiently removes residues, ensures the cleanliness of utensils meets the experimental requirements, replaces the traditional manual cleaning, improves eficiency and reduces the risk of cross contamination.
$0.00

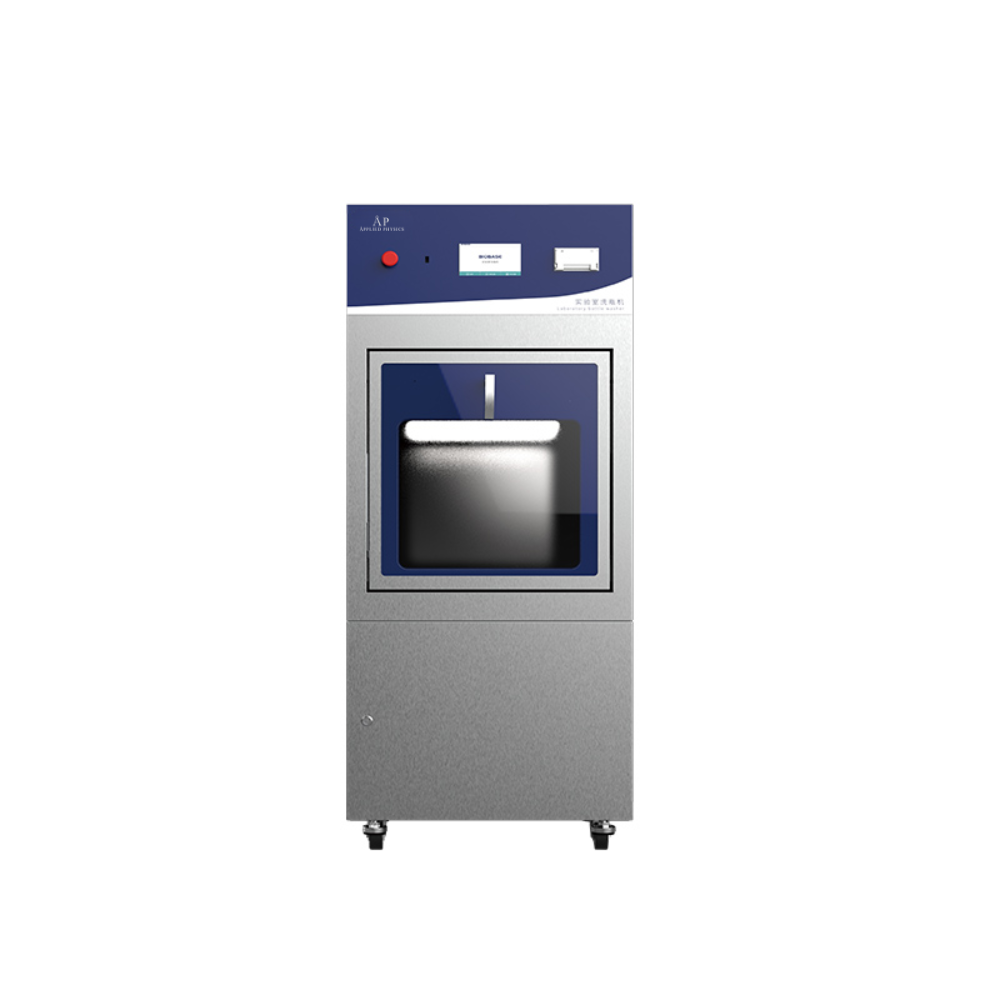

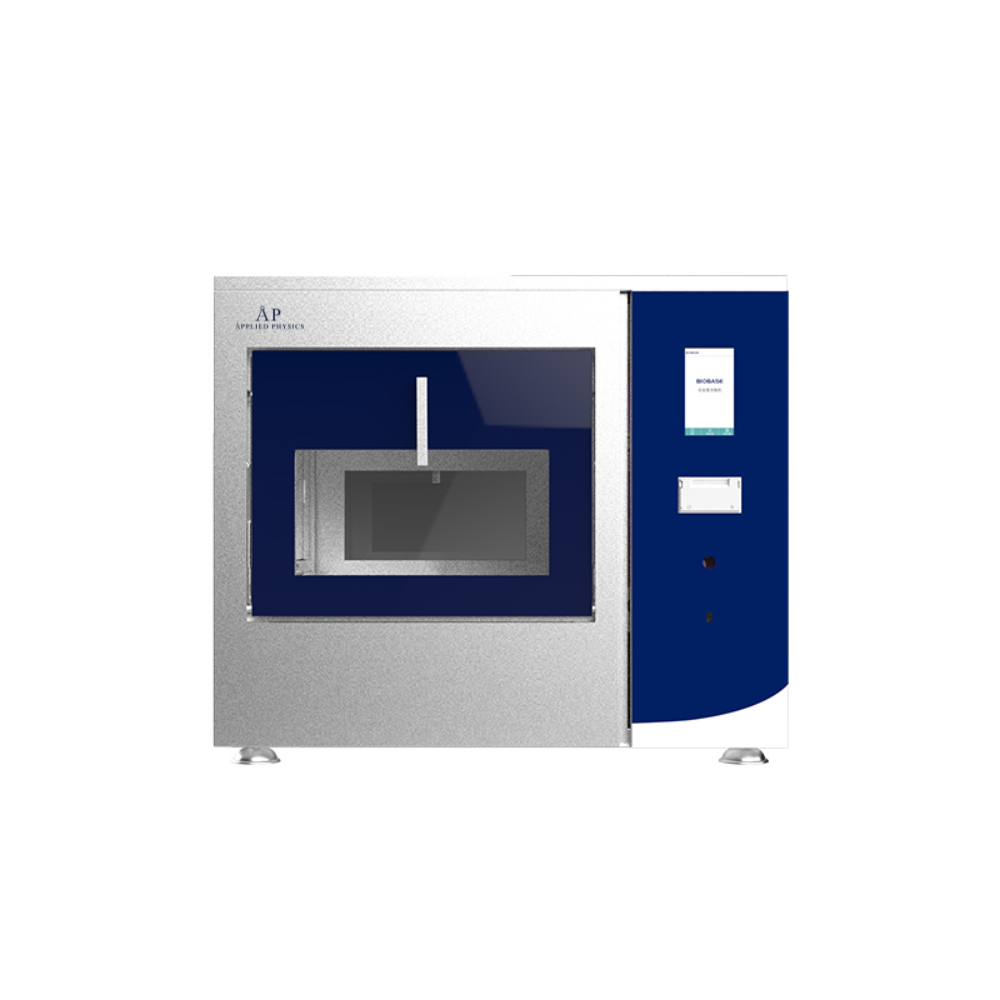

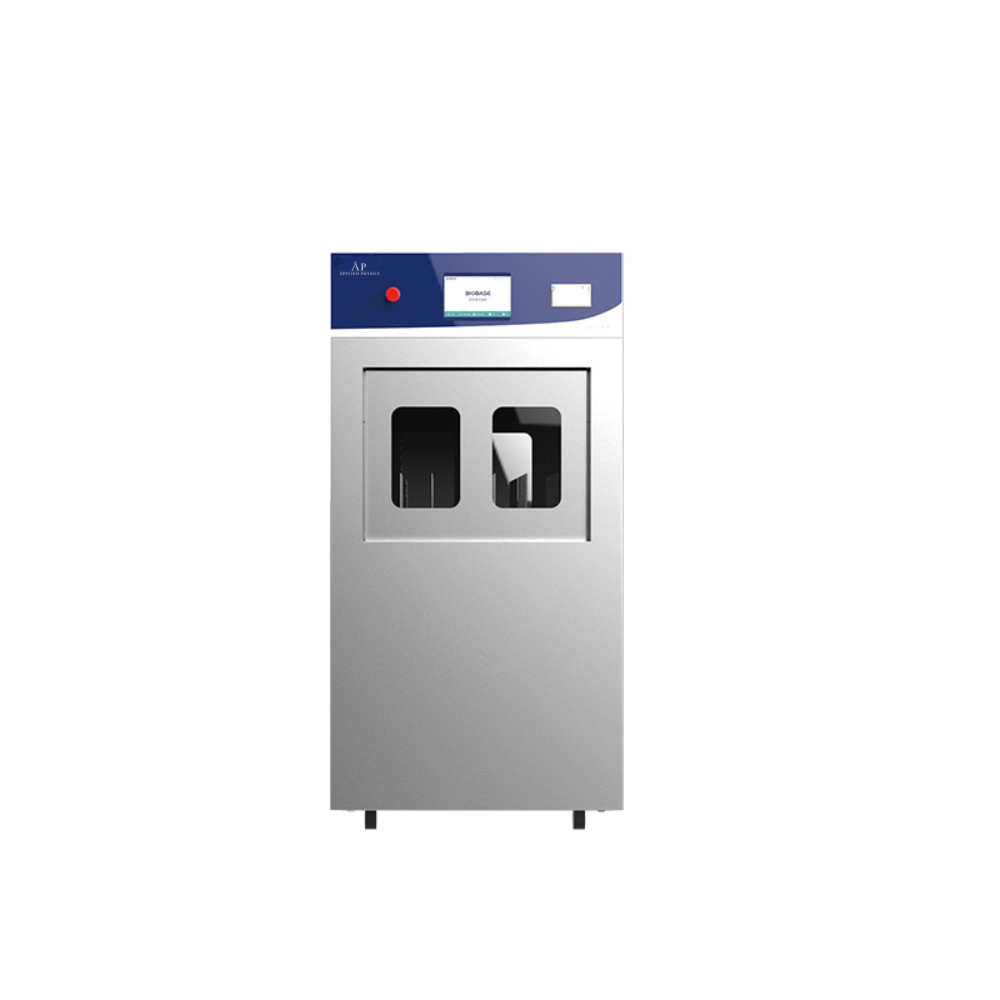

Washer Disinfector (Lab Automatic Glassware Washer) BKX-CQS-120
Features:
1. Adopt PLC microcomputer control technology. Standard printer and 7-inch color LCD touch screen.
2. Complete protection functions: The door cannot be opened during operation to ensure safe use; dual temperature protection of water temperature and air temperature; power failure protection function; water seal design of drainage pipeline to prevent reverse flow of sewage; installed with leak-proof detection, if liquid leakage is detected, The program is cancelled, the inlet valve is closed, and the drain pump is started.
Cleaning Procedure:
1. Standard procedure: Meet the general contaminant blood cleaning.
2. Quick cleaning program: Meet the cleaning of lightly polluted utensils.
3. Customized cleaning program: According to different cleaning needs, users can customize the combined cleaning program.
4. Drying program: Equipped with a high-performance drying system, which can quickly complete the drying and cleaning of various instruments.
5. Manual test procedure: Self-check the operation status of each component of the equipment.
Cleaning Racks:
Technical Parameters:
Model
BKX-CQS-120
BKX-CQZ-120
BKX-CQS-220
BKX-CQS-320
Cleaning
Capacity
120L
120L
220L
320L
Washer Load Level
1
1
2
3
Water Wash Power
0.75KW
0.75KW
1.5KW
1.5KW
Water Heater Power
5KW
5KW
7KW
7KW
MAX. Power
6KW
6KW
9KW
9KW
Water Consumption/Step (L)
15
15
20
20
Tank Internal Temperature
0~95℃
Water Supply Pressure
Tap water: 0.3~0.8Mpa
pure water: 0~0.8Mpa
Peristaltic Pump for Cleaning Agent
2
Cleaning Agent Level Sensor
YES
Washing Pump
Sweden 430L/min
Sweden 430L/min
Sweden 1000L/min
Sweden 1000L/min
Standard Cleaning Racks
BKXIR36, 1pc
Drying
Drying Function
YES
Steam Condenser
YES
Dry Power
3KW
3KW
4KW
4KW
Control System and Traceability
Control System
7″ color LCD touch screen display, microprocessor
Cleaning Program
12 pre-set programs+4 PLC free programming
Password Protection
YES
Safety Emergency Button
YES
USB port
YES
Integrated printer
YES
Online Monitor Performance of Washing
NO
Dimensions& Weight
Chamber Dimension (W*D*H)
600*620*560mm
600*650*560mm
600*630*730mm
600*630*930mm
Exterior Dimension (W*D*H)
980*740*870mm
890*800*1540mm
690*820*1800mm
690*820*2000mm
Package Dimension (W*D*H)
1150*940*1060mm
1100*970*1900mm
850*1000*2250mm
850*1000*2250mm
Net Weight (Host only)
190kg
260kg
290kg
310kg
Gross Weight (Host with rack)
220kg
290kg
330kg
350kg
Others
Door
Double-layered glass door, 304 stainless steel
Double-layered glass door, 304 stainless steel
Double-layered glass door, 304 stainless steel
Double-layered glass door, 304 stainless steel
Safety Door Lock
YES
YES
YES
YES
Built-in RO Water Pump
YES
YES
YES
YES
Noise
<50dB
Power Supply
AC220V, 50Hz（Standard）
AC220V, 60HZ; 110V, 50/60HZ（Optional）
| Model | BKX-CQS-120, BKX-CQS-220, BKX-CQS-320, BKX-CQZ-120 |
|---|
