Advanced Metrology for Sub-10nm Defect Classification on Wafers

The semiconductor industry’s march toward the angstrom era has fundamentally altered the physics of manufacturing.

As fabs transition to 5nm, 3nm, and 2nm nodes, the margin for error has effectively vanished. In this regime, a defect the size of a single DNA strand can render a chip useless.

For yield engineers, the challenge is no longer just finding defects; it is distinguishing signal from noise in an environment where the features themselves are barely larger than the wavelengths of light used to measure them.

This article explores the advanced metrology technologies, specifically the convergence of optical, e-beam, and AI, that are making sub-10nm defect classification possible.

The Triad of Sub-10nm Challenges

To understand the solution, we must first appreciate the problem. Manufacturing at the sub-10nm node introduces three critical hurdles.

Semiconductor wafer graphic showing buried defects (left), signal noise interference waves (center) and EUV stochastic variations

The Invisible Killer Defect

In planar 2D transistors, defects were largely surface-level.

stacked FinFET blocks with a glowing tungsten void; Right: GAA nanosheet transistor array with purple bridging defect visualization

In modern 3D architectures like FinFETs and GAA nanosheets, defects are often buried. A void inside a tungsten via or a bridge deep between fins is invisible to standard optical tools.

Signal-to-Noise Ratio (SNR) Degradation

As feature sizes shrink, the scattering signal from a defect weakens.

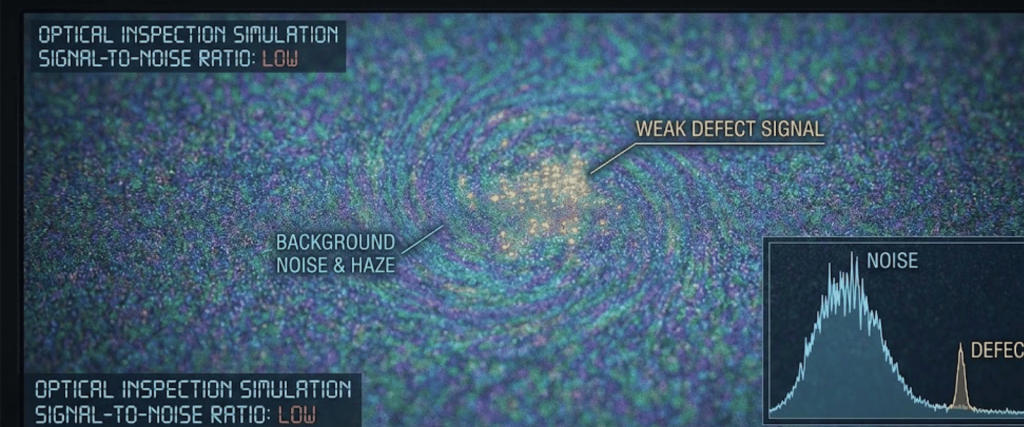

Optical inspection simulation image showing low signal-to-noise, background noise haze, and a weak defect signal highlighted

Simultaneously, surface roughness (haze) and process variations create noise. Traditional threshold-based detection struggles here, often flagging thousands of nuisance events (false positives) that drown out the real defects.

Stochastic Defects in EUV Lithography

The adoption of Extreme Ultraviolet (EUV) lithography has introduced stochastic (random) defects such as line-edge roughness and micro-bridging that are probabilistic in nature.

High-tech semiconductor wafer inspection station with purple laser scanning chips and engineers in cleanroom behind

Catching these requires inspecting vast areas of the wafer, which challenges the throughput of high-resolution tools.

Core Technologies Driving Classification

The industry has responded with a Hybrid Metrology approach, blending the speed of light with the precision of electrons.

Broadband Plasma (BBP) Optical Inspection

BBP systems remain the workhorse for high-volume manufacturing.

High-tech cleanroom workstation testing a semiconductor wafer with colorful laser beams and monitoring displays

By utilizing a super-continuum light source (ranging from DUV to visible), these tools can be tuned to specific wavelengths that resonate with the materials on the wafer.

  • Innovation: The shift to shorter wavelengths (deep UV) allows for the detection of smaller scattering cross-sections, pushing the resolution limit closer to the features of advanced logic chips.

Multi-Beam Electron Beam Inspection (EBI)

E-beam inspection offers the ultimate resolution (sub-1nm) but has historically been too slow for inline monitoring. The breakthrough lies in Multi-Beam technology.

Technicians in cleanroom suits monitor a wafer under a focused array of bright processing beams during semiconductor fabrication
  • How it Works: Instead of a single electron column, modern systems deploy arrays of thousands of beams scanning in parallel. This increases throughput by orders of magnitude, allowing fabs to use EBI not just for R&D, but for high-volume sampling of hotspots where defects are most likely to occur.

The Brains of the Operation: Deep Learning & AI

Hardware allows us to see the defect; software allows us to understand it. The sheer volume of data generated by multi-beam and BBP tools renders manual classification impossible. This is where Deep Learning enters the fab.

Automated Defect Classification (ADC)

Legacy ADC relied on rule-based algorithms (e.g., if blob is round, it is a particle). These rules break down at 5nm.

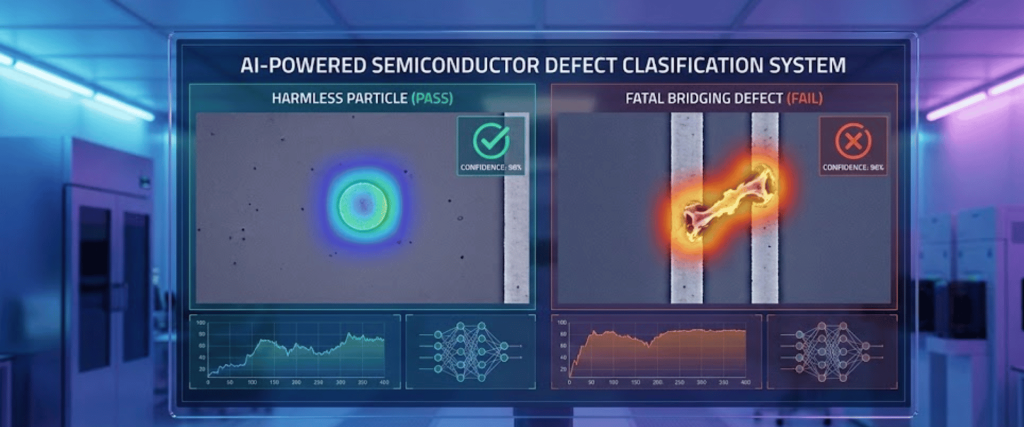

harmless particle marked PASS with heatmap and graphs; right a fatal bridging defect marked FAIL with heatmap, confidence badges, and neural network diagrams
  • The AI Advantage: Convolutional Neural Networks (CNNs) are trained on millions of labeled defect images. These networks can identify subtle correlations that humans miss. For example, an AI model can distinguish between a harmless surface discoloration and a fatal bridging defect based on texture and contrast variations that are invisible to the naked eye.

Synthetic Data Training

Training an AI requires massive datasets of defects, which are rare in a mature process.

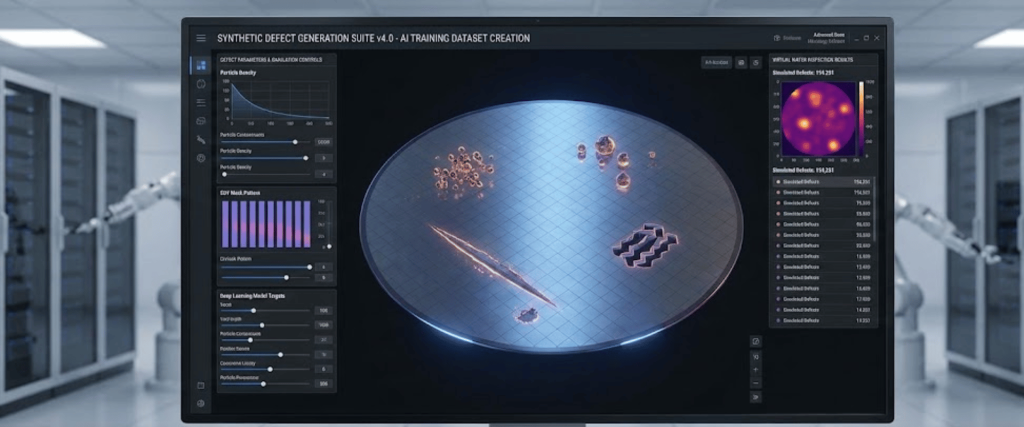

Silicon wafer inspection dashboard showing simulated defects, control panels and defect thumbnails in a server lab

Advanced metrology providers are now using synthetic data generation, creating realistic simulations of defects to train their models before the first wafer is even processed.

Future Trends: The Era of Zero Defect

As we look toward the High-NA EUV era and 3D stacking (Chiplets), metrology will move from Post-Process to In-Situ.

  • Hybrid Metrology: The integration of AFM (Atomic Force Microscopy) data with E-beam and Optical data to create a ground truth 3D model of the defect.
  • Self-Correcting Fabs: Metrology data will eventually feed directly into process tools (lithography scanners, etchers) to adjust parameters in real-time, correcting potential defects before they become permanent.

Conclusion

The survival of Moore’s Law depends as much on metrology as it does on lithography.

By leveraging the synergy of Broadband Plasma, Multi-Beam E-Beam, and Deep Learning, semiconductor manufacturers can illuminate the sub-10nm landscape, transforming raw data into the high yields required for the AI and high-performance computing revolution.

Frequently Asked Questions (FAQs)

1. Why is sub-10nm defect detection so difficult?

At the sub-10nm level, defects are often smaller than the wavelength of light used by standard tools. This creates a low signal-to-noise ratio, making it extremely hard to distinguish a killer defect from harmless surface roughness or background noise.

2. Optical vs. E-Beam: What is the main difference?

Optical inspection (Broadband Plasma) is fast and best for scanning entire wafers. E-Beam inspection offers much higher resolution (sub-1nm) to see the tiniest details, but it is naturally slower. Modern Multi-Beam systems bridge this gap by using thousands of beams at once to increase speed.

3. How does AI improve the classification process?

AI uses Deep Learning to automatically analyze thousands of images in real-time. It can instantly tell the difference between a fatal bridge or a short and a harmless particle, allowing engineers to fix production issues much faster without manual review.
