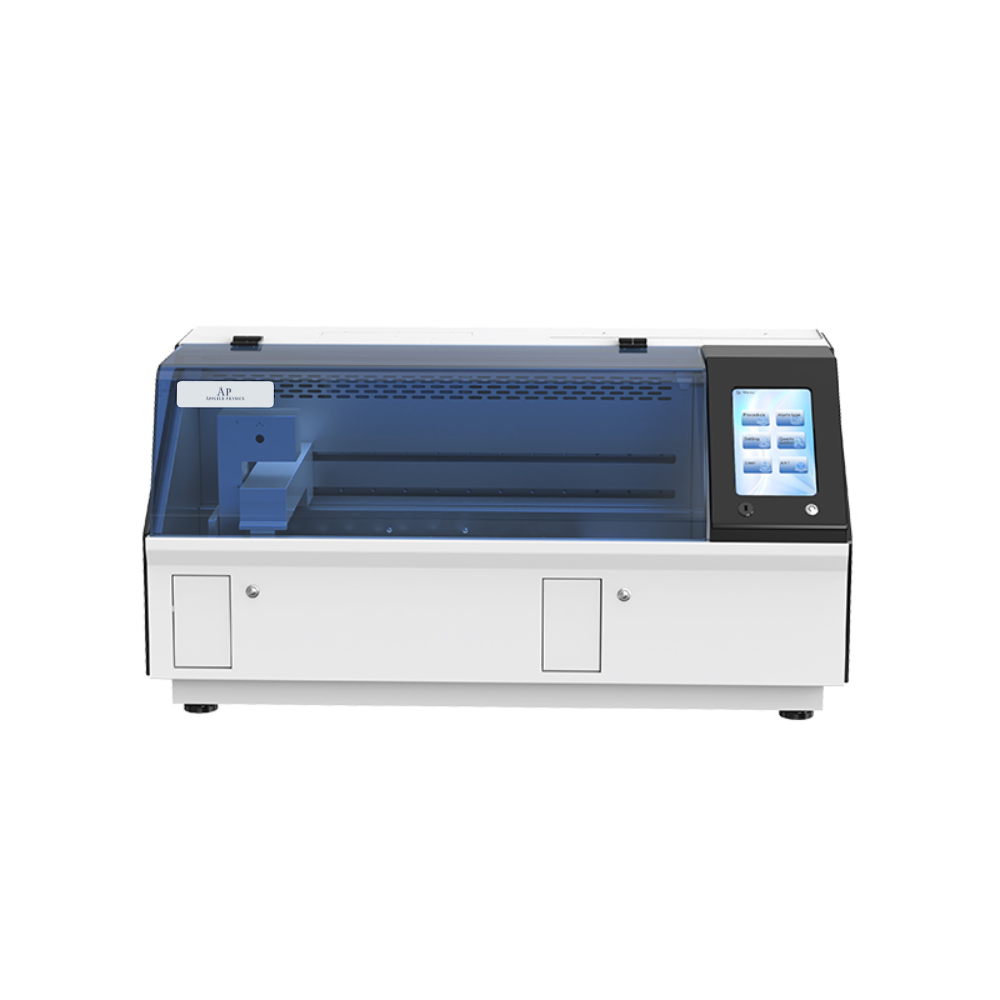

Automated Tissue Stainer

Description

Automated Tissue Stainer

Features:

1. With a high-definition color LCD touch screen that switches between Chinese and English interfaces easily.

2. Equipped with stain quality control and an AAT function to adjust staining time based on usage, ensuring consistent results.

3. Offers audio-visual alerts and automatic screen/LED light control.

4. Supports multiple staining methods(e. g. , HE, Pap), programs, and an open reagent system.

5. USB Port: Enables easy file upgrades and data export.

6. Program-controlled to prevent specimen damage, with infrared detection for operation guidance.

7. Automatically adjusts water supply during operation, with a rear water pressure valve for cleaning needs.

8. Fully automated from sample transfer to staining and washing, enhancing work efficiency.

9. Processes up to 600 slides/hour, with a 30-rack capacity and support for 15 concurrent programs.

10. Hydrophobic racks reduce reagent carry-over and cross-contamination, with a tank shaking function to minimize residue.

11. Monitors exhaust and includes activated carbon filtration to reduce air pollution.

Technical Parameters:

Model

BK-RS3

Cup Number

26

Reagent Stations

19

Washing Stations

4

Oven Chamber

1

Single Cup Capacity

380ml

Single Cup Processing Time

0~59min59s

Oven Temperature Range

RT~70℃

Loading Capacity

Up to 15 staining racks

Slides per Rack

30

Loading/Unloading Stations

1/1

Programs Storage

15

Noise

≤60dB(A)

Consumption

400W

Power Supply

AC220V, 50/60Hz(Standard);

AC110V, 60Hz(Optional)

Standard Accessories

Reagent cups*19; washing cups*4; staining racks*10; inlet pipe assembly*1; PVC water pipe 4m; ventilation pipe*1; activated carbon filter*1

External Size(W*D*H)

1200*640*600mm

Package Size(W*D*H)

1350*780*830mm

Net Weight

110kg

Gross Weight

140kg
