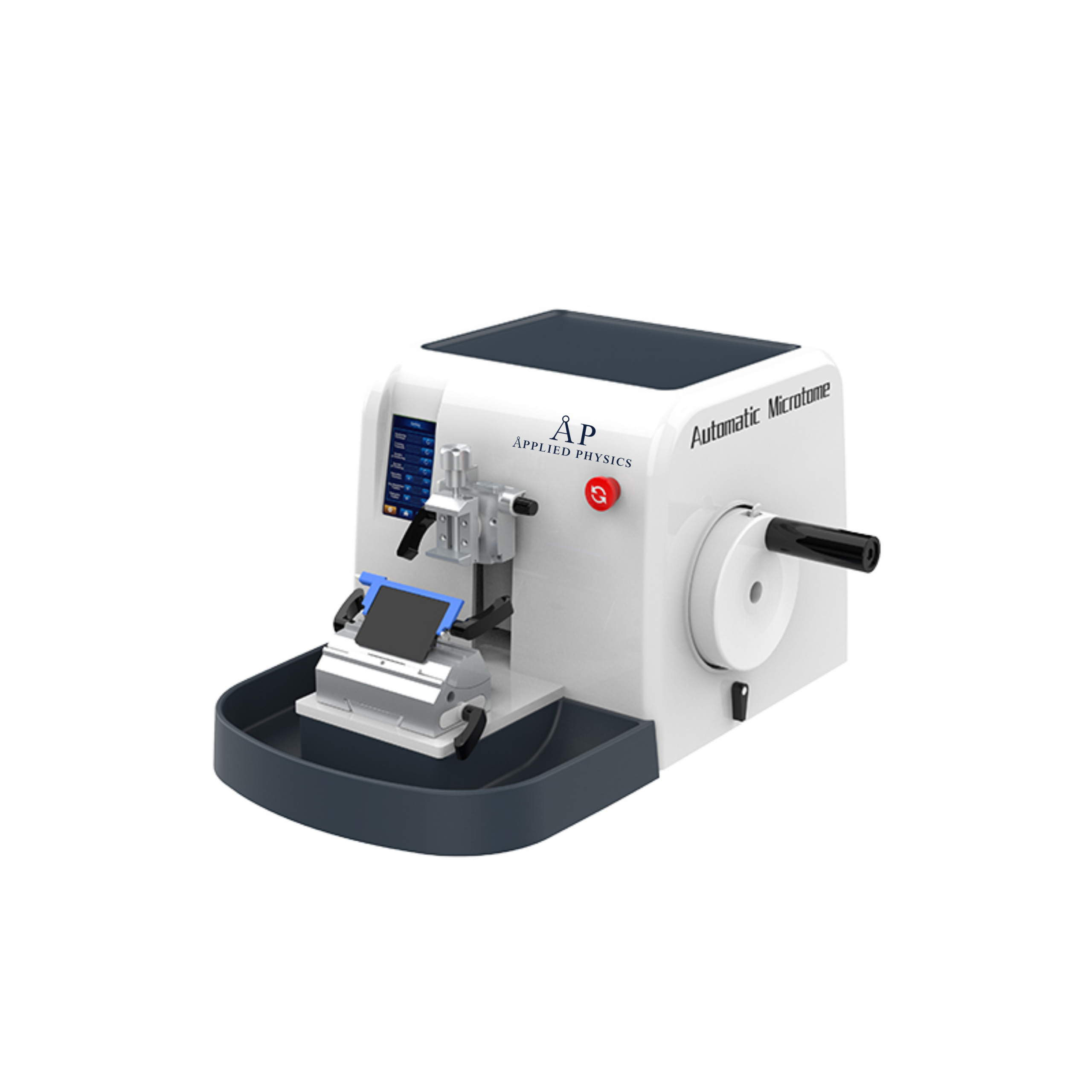

Microtome is used for sectioning thin and uniform tissue slices. The BK-2228 Microtome can section slices between 0 and 100μm and and trimmings between 0 and 600μm with a minimum adjustable index value of 0.25μm, which enables fast and accurate slicing operations. Equipped with a lengthening blade adapter and tool post to protect the safety of the operator and enable better tool retracting.
$0.00
Features:
1. Precision cross-roller guide, equipped with stainless steel holder, to ensure long-lasting operation of the equipment.
2. Equipped with multi-angle adjustment device, easy to use.(Optional embedding chuck)
3. Magnetic removable waste chute, easy to clean.
4. Two-piece storage board, which can place blade embedding box and other related disposable items.
5. Large hand wheel double lock, and can be single-locked at any point, also double-locked at the highest point and any point, to ensure the safe exchange of knives and samples.
Technical Parameters:
| Mode | BK-2228 |
| Sectioning Thickness Range | 0.25~100μm |
| Trimming Thickness Range | 1~600μm |
| Retraction Range | 0~200μm |
| Mini. Sectioning Thickness | 0.25μm |
| Automatic Sectioning Speed | 35~140pcs/min |
| Precision | ±5% |
| Max Specimen Size | 70*70mm |
| Specimen Stroke | Horizontal: 28mm, Vertical: 70mm |
| Tool Holder Stroke | The maximum movement of the tool holder base is 60mm, and the maximum left and right movement of the tool holder is 23mm |
| Sample Adjustment Direction | Horizontal 8°
Vertical 8° Rotation 90° |
| Power Supply | AC110/220V, 50/60Hz |
| Power | 150W |
| External Size(W*D*H) | 500*470*340mm |
| Net Weight | 45kg |
| Packing Size(W*D*H) | 730*620*590mm |
| Gross Weight | 65kg |
