Application:
Differential scanning calorimeter can be used to test glass transition temperature, phase transition, melting and thermal enthalpy, product stability, oxidation induction period, specific heat, etc. It is mainly used in the chemical, energy, metallurgy, mining, polymer materials, metal materials and other industries.
$0.00

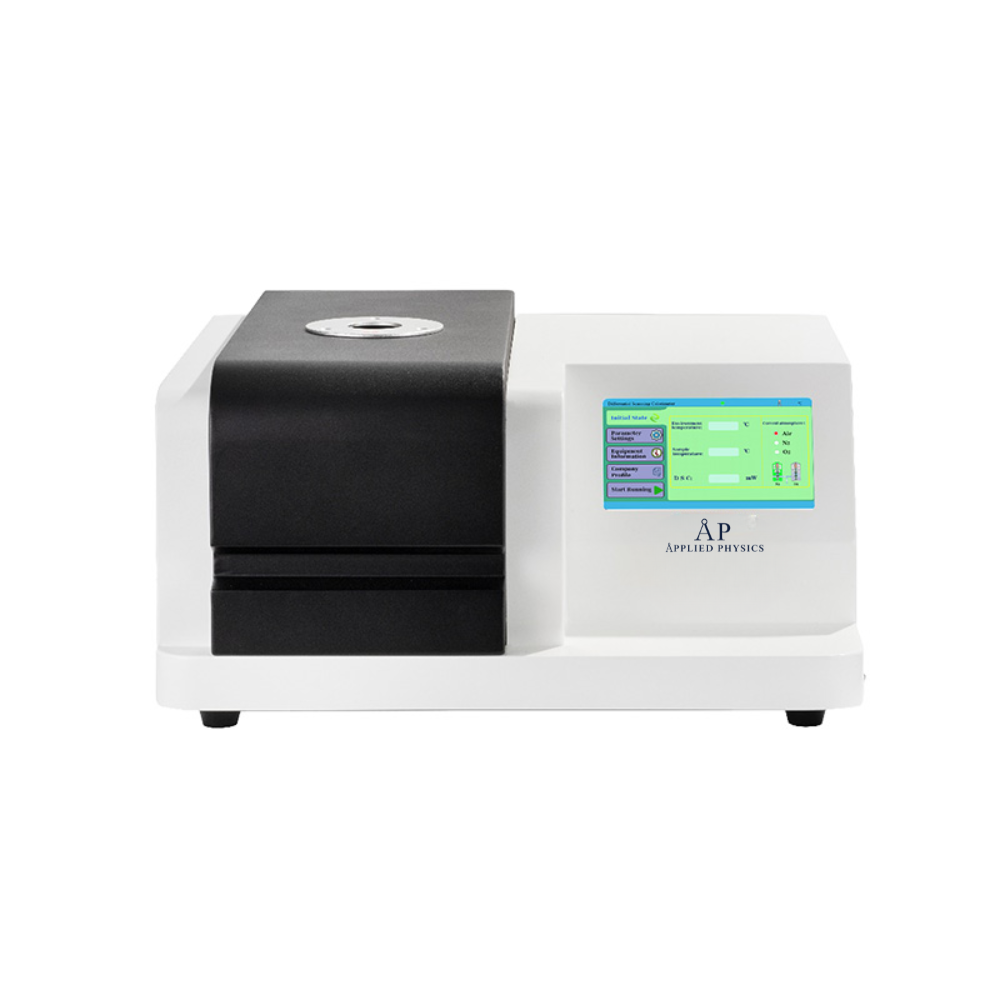

Differential Scanning Calorimeter BK-DSC300 BK-DSC300C B K-DSC300L
Features:
1. Industrial-grade 7-inch touch screen displays rich information.
2. Brand-new metal furnace structure provides a better baseline and higher accuracy.
3. USB communication interface for versatility, reliable and uninterrupted communication, and supports self-recovery.
4. Automatically switches between two atmosphere flow rates with fast switching and short stabilization time. Also includes an additional shielding gas input.
5. Simple and easy-to-use software.
Technical Parameters:
Model
BK-DSC300
BK-DSC300C
BK-DSC300L
Temperature Range
RT~600℃
-35~600℃

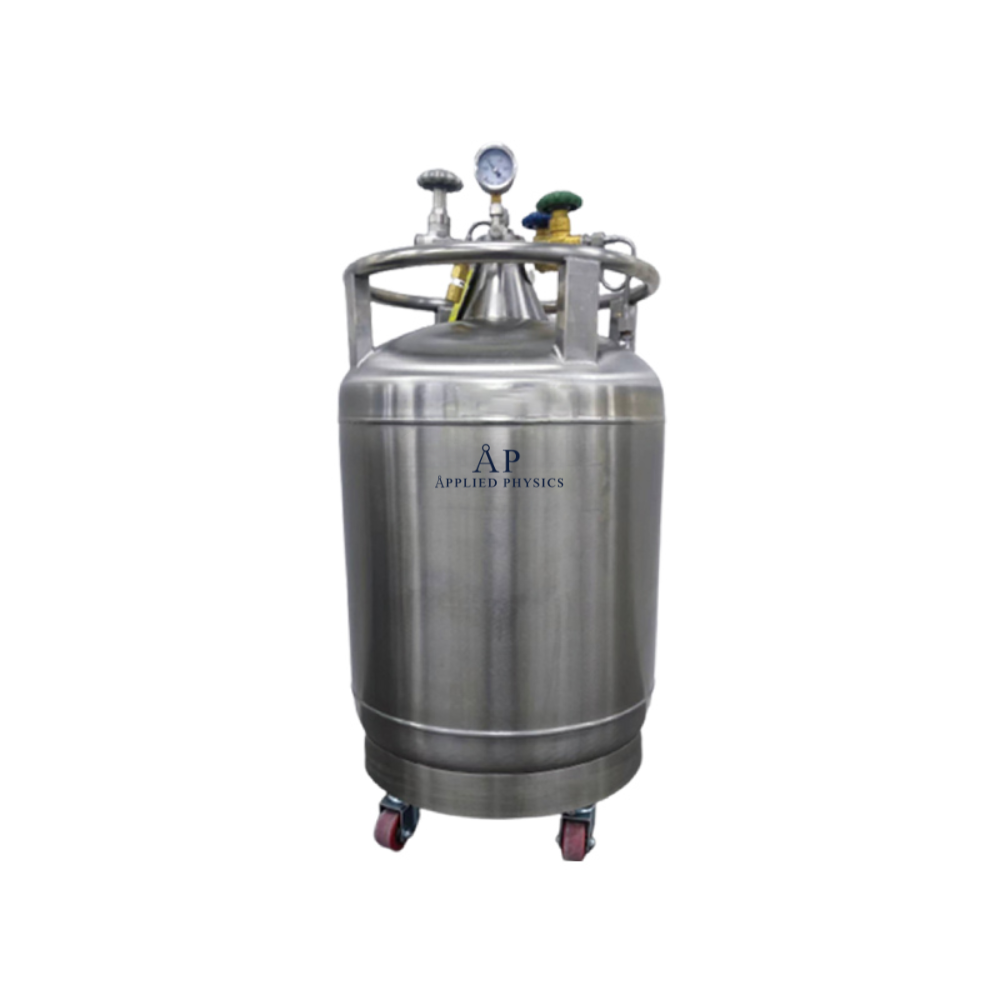

-150~600℃(Optional of the liquid nitrogen container); RT~600℃(Not optional of the liquid nitrogen container)
Temperature Resolution
0.001℃
Temperature Fluctuation
±0.001℃
Temperature Repeatability
±1℃
Heating Speed
0.1~80℃/min
0.1~100℃/min
0.1~100℃/min
Cooling Speed
/
0.1~20℃/min
0.1~40℃/min
Constant Temperature Time
Program setting≤24h
Program setting≤24h
0~400min
Temperature Control Method
Heating, constant temperature, cooling
DSC Range
0 to ±600mW
0 to ±800mW
0 to ±600mW
DSC Resolution
0.01uW
DSC Sensitivity
0.001mW
Gas Flow
0~200mL/min
0~200mL/min
0~300mL/min
Gas Pressure
≤0.5MPa
≤0.5MPa
≤0.2MPa
Power Supply
Standard: AC220V, 50/60Hz; Optional: AC110V, 50/60Hz
External Size(L*W*H)
488*428*237mm
Net Weight
13.4kg
15kg
15.3kg
Packing Size(L*W*H)
615*545*490mm
Main Unit: 615*545*490mm; Accessory: 540*455*815mm
615*545*490mm
Gross Weight
26.2kg
Main Unit: 28.5kg;
Accessory: 41.6kg
29.6kg
| Model | BK-DSC300, BK-DSC300C B K-DSC300L |
|---|
