Application:
Jacketed glass reactors are designed for synthetic reaction of different types of materials in a controlled temperature and vacuum environment. Each reactor features adjustable stirring speeds and a constant pressure feeding funnel that allows you to add material to the vessel at a uniform and controlled speed. The built-in condenser makes it possible to recover some materials, also at a controlled rate of speed.
$0.00

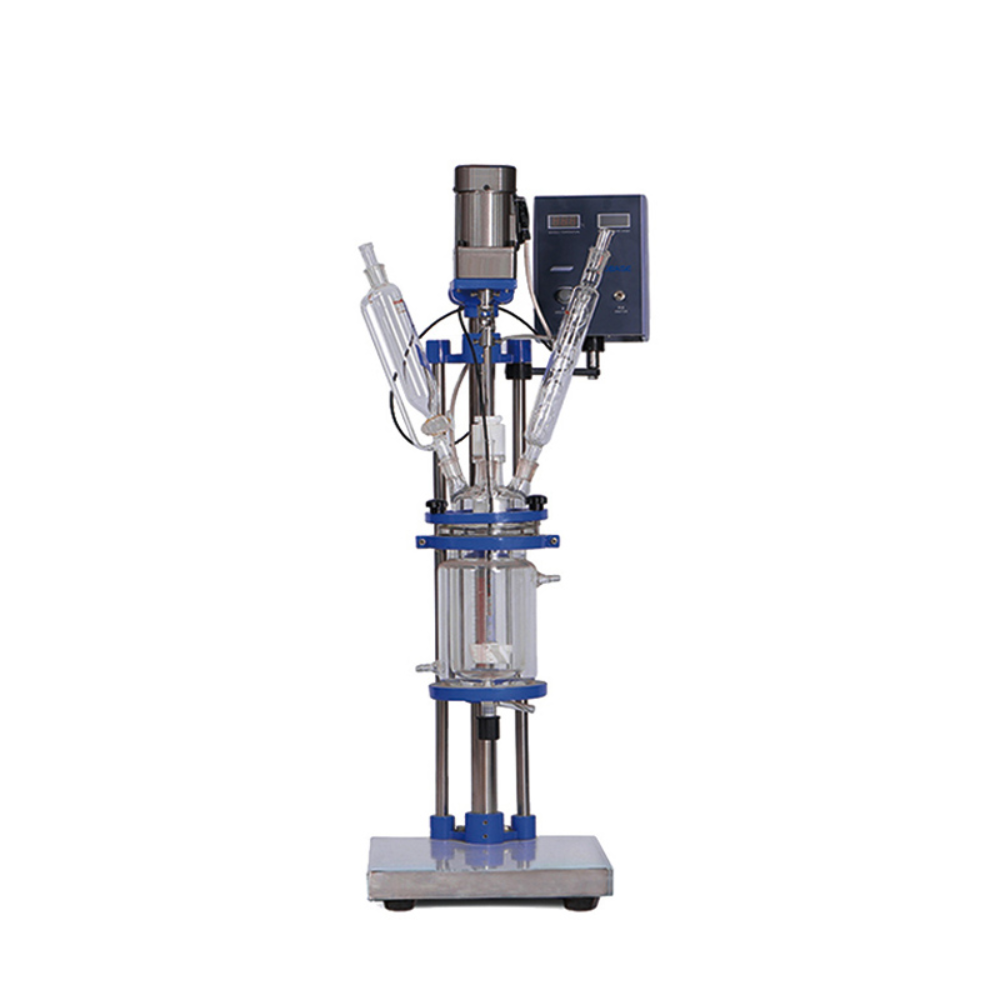

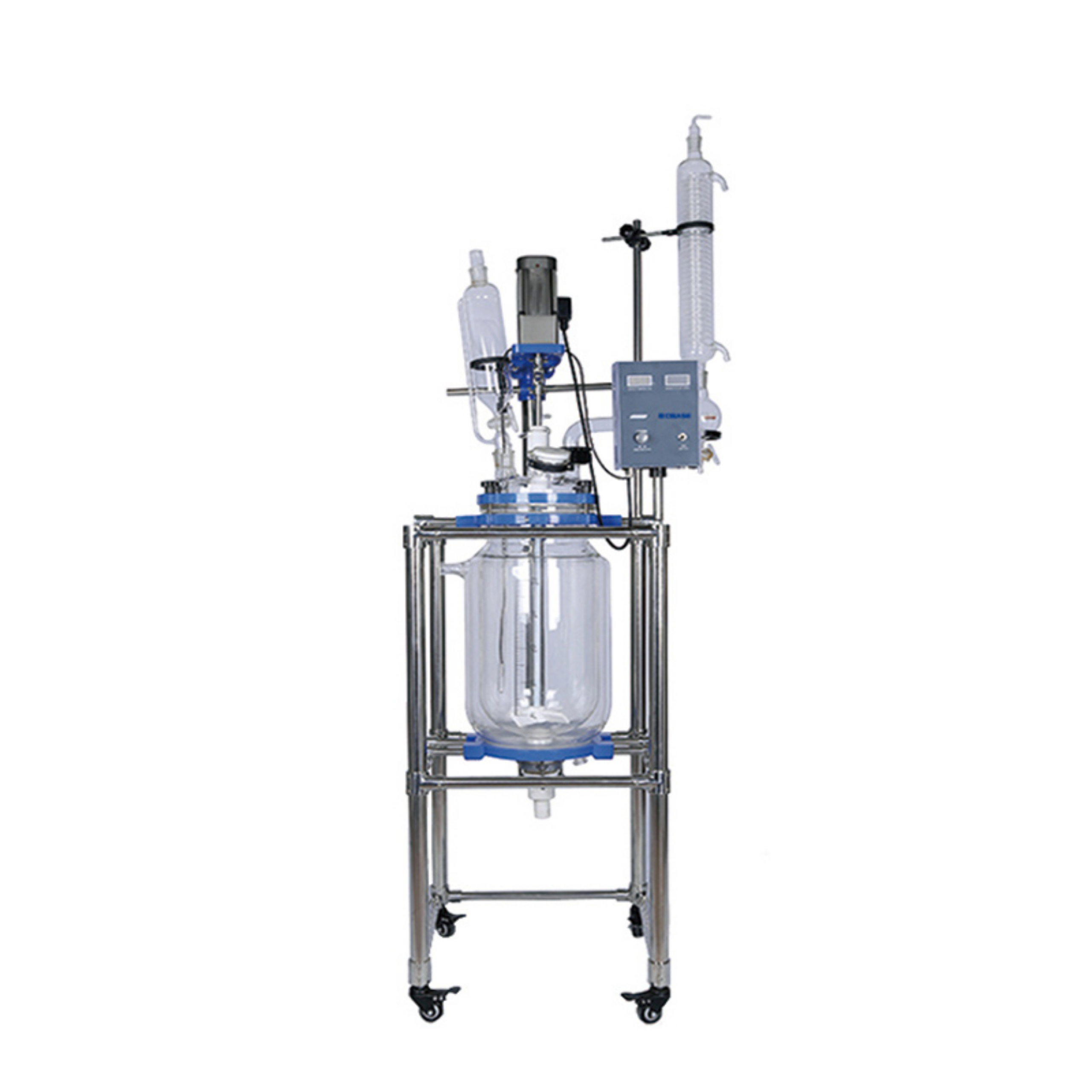

Jacketed Glass Reactor
Features:
1. GG17 high borosilicate glass, with good chemical and physical properties.
2. The evaporation and back-flow of reaction material can be controlled.
3. The heat of reaction could be taken away quickly through water, cycling in the jacketed glass.
4. The design of large bottle mouth, easier to clean.
5. It can be used as a distillation syntheses device.
6. The sealing performance is 0.098MPa.
7. LED display, easier and more convenient to measure temperature.
Optional Equipment:
1. Circulating water vacuum pump: (JGR-1L~5L, recommend mode SHZ-DIII, JGR-10L~50L, recommend model SHZ-95B).
2. Refrigerated circulator.
3. Circulating water/oil bath.
Technical Parameters:
Model
JGR-1L
JGR-2L
JGR-3L
JGR-5L
JGR-10L
JGR-20L
JGR-30L
JGR-50L
Reaction Flask Capacity
1L
2L
3L
5L
10L
20L
30L
50L
Stirring Power
60W
120W
Stirring Speed
0~600rpm (Max. 1300 customized)
Stirring Shaft Diameter
14mm
Motor Torque
1.27N.m
2.42N.m
Power Supply
AC110/220V, 50/60Hz
Package Size (W*D*H)
1260*430*460mm
1300*580*540mm
1310*600*540mm
1230*610*750mm
1320*630*750mm
1650*660*780mm
Gross Weight
50kg
50kg
51kg
56kg
81kg
85kg
100kg
108kg
| Model | JGR-10L, JGR-1L, JGR-20L, JGR-2L, JGR-30L, JGR-3L, JGR-50L, JGR-5L |
|---|
