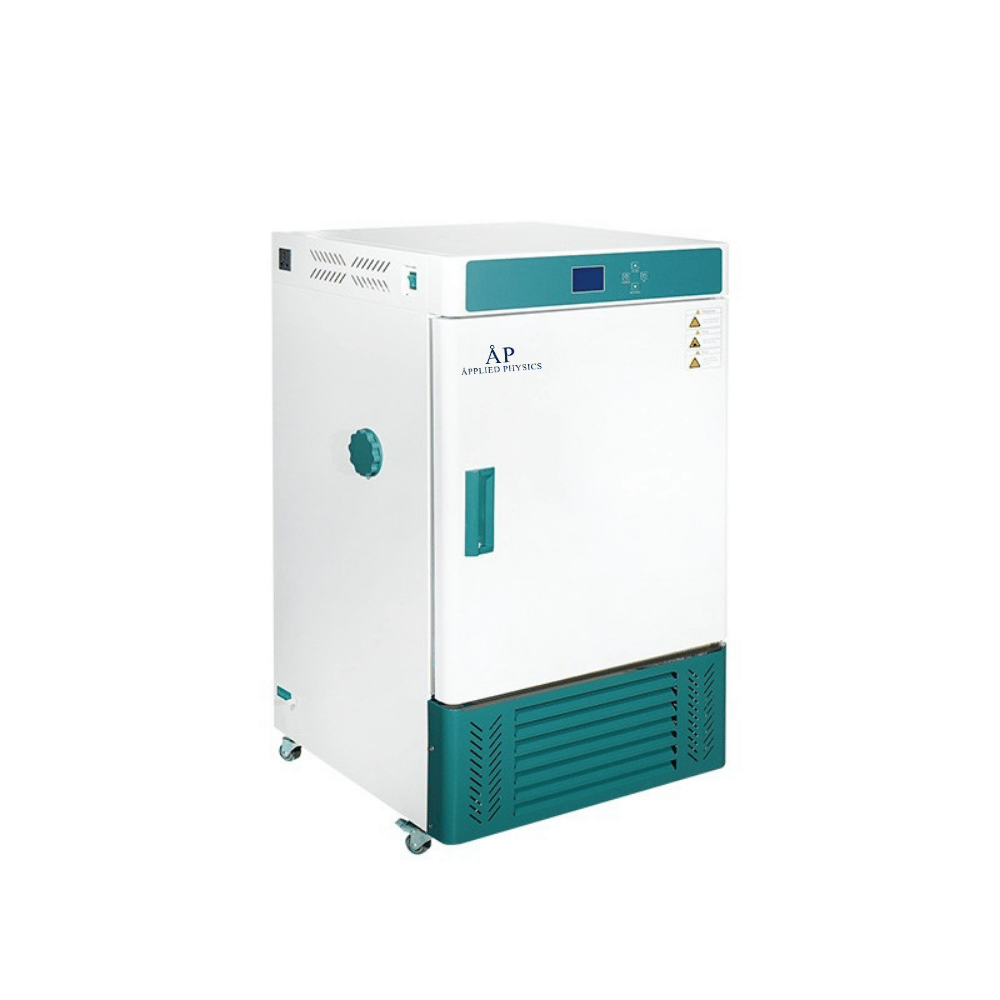

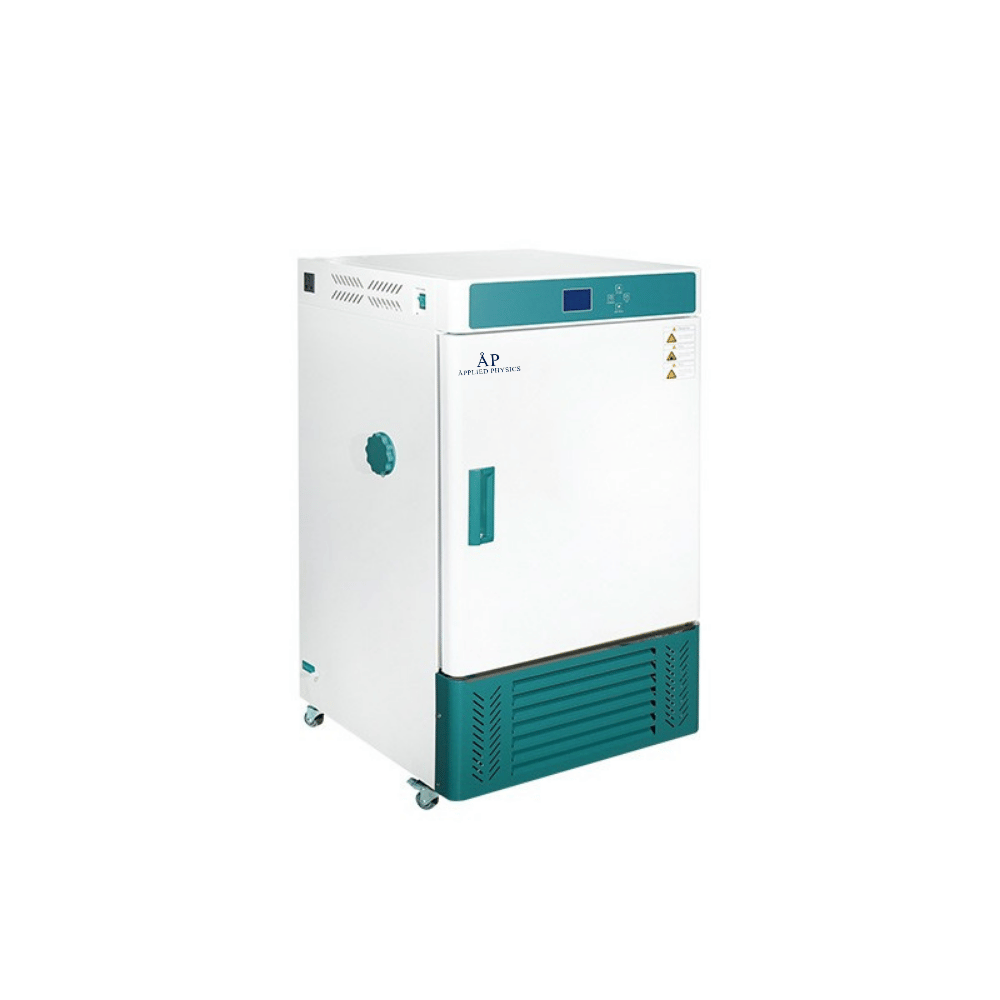

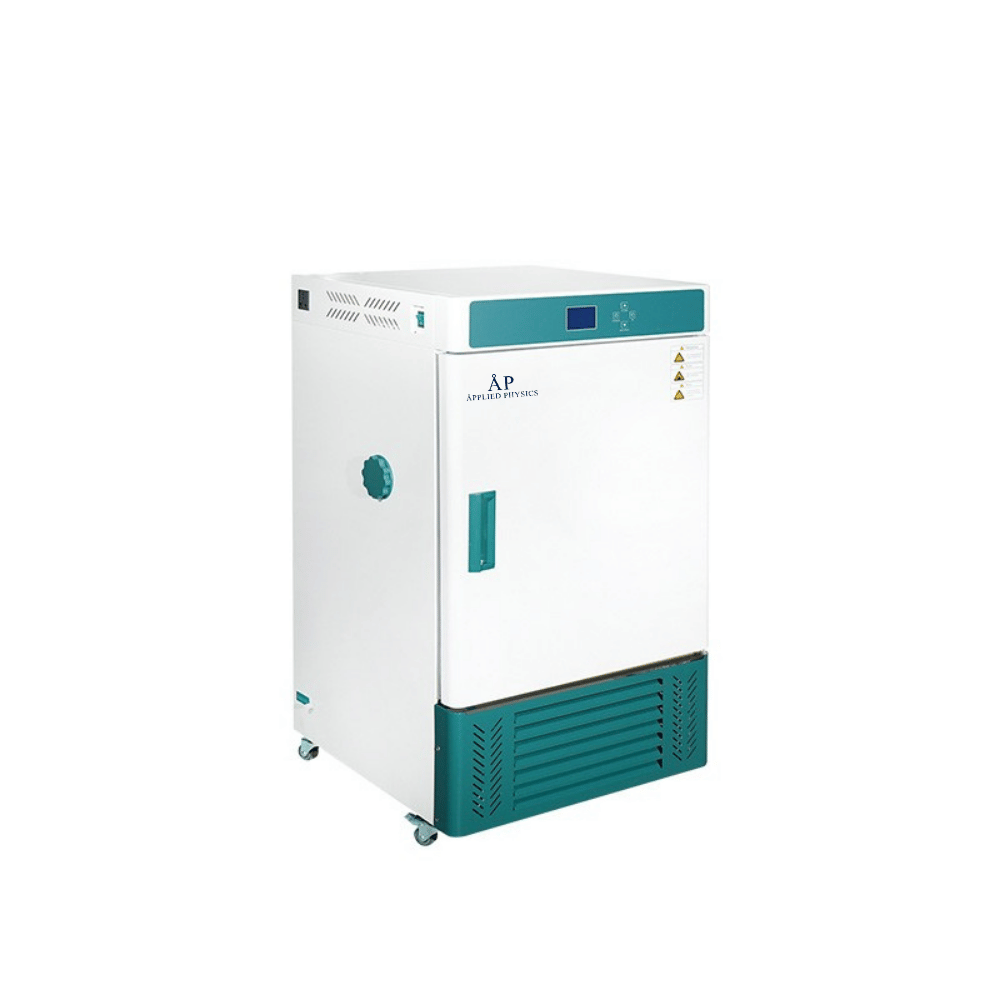

Multi-program BOD Incubator BJPX-B70P BJPX-B150P BJPX-B250P

Description

Multi-program BOD Incubator BJPX-B70P BJPX-B150P BJPX-B250P

Features:

* Unique internal wind circulation structure design, breeze circulate fan make inner chamber temperature uniformity.

* Double door seal; tempered glass silicon rubber seal inner door and magnetic rubber seal outer door, which are convenient to on/off; inner chamber with light for convenient observation.

* Intelligent defrosting function ensure device long-time run without frost.

* Fluoride-free refrigeration and gentle breeze circulation.

* Test hole of c 52mm at left side of container.

* LCD scree 30-stage program controller,round move,ladder operating.

* Sensor failure alarm.

Model

Model

BJPX-B70P

BJPX-B150P

BJPX-B250P

Forced Convection

Function

Temp. Range

0-65℃

Temp. Resolution Ratio

0.1℃

Temp. Motion

High Temp:±0.5℃      Low Temp:±1℃

Temp. Uniformity

±1.5℃

Structure

nner Chamber

Mirror Stainless Steel

Outer Shell

Cold rolling steel electrostatic spraying exterior

Insulation Layer

Polyurethane

Heater

Stainless steel heater

Power Rating

0.8kW

1.0kW

1.2kW

Compressor

Air cooled hermetic compressor

Cryogen

R134a

Defrost Structure

Automatic control intelligent defrosting

Test Hole

Inner diameter 43mm(one)

Controlled External Power

Supply

Outer universal socket(one), inner waterproof socket(one)

Control

Temp. Control Mode

30-stage LCD program

Temp. Setting Mode

Touch button setting

Temp. Display Mode

Measuring temperature:LCD upper row;Setting temperature:LCD lower row

Timer

0-99.9h*30 segment(with timing wait function)

Operation Function

Program operation

Sensor

PT100

Additional Function

Loop self diagnosis, sensor fault alarm

Safety Device

Over temperature alarm

Specification

Inner Chamber Size(W*L*H)(mm)

415*350*500

490*400*750

500*515*950

Exterior Size(W*L*H)(mm)

571*591*1051

646*641*1301

656*741*1501

Packing Size(W*L*H) (mm)

680*676*1235

751*730*1490

761*830*1690

Volume

70L

150L

250L

Load Per Rack

15kg

Shelf Number

5

9

12

Shelf Space

60mm

Supply(50/60Hz) Current Rating

AC220V/2.3A

AC220V/3.6A

AC220V/5.5A

NW/GM(kg)

69/92

86/114

100/139

Accessory

Shelf

2

Shell Frame

4

Optional Accessories

shelf，RS485 port， printer， recorder， Remote Control， wireless  messaging alarm.

U-Disk data storage
