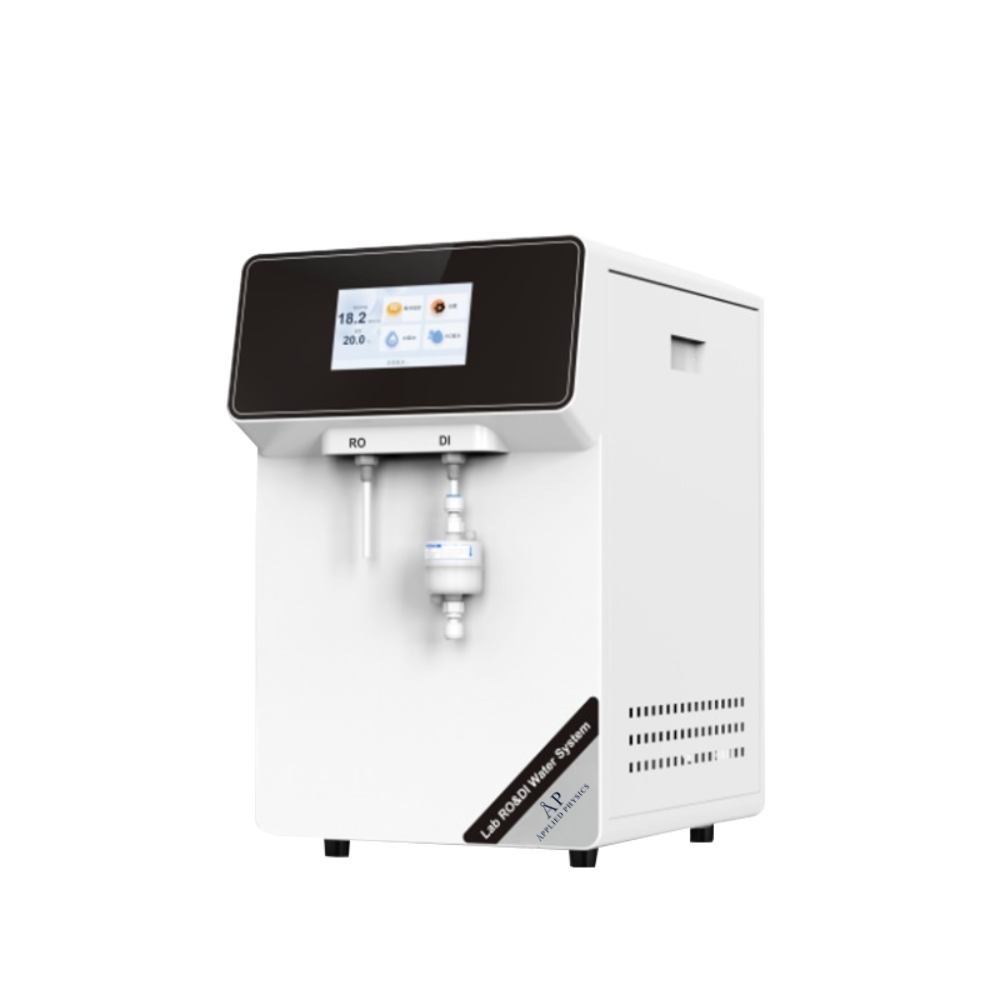

Provide ultra-pure water for biochemical room, laboratory department and laboratory water points.
$0.00
*Production of three types of water from a single system:
Type I: ultrapure water in accordance with ASTM D1193 Type I and ISO 3696 Grade 1
Type II: laboratory grade water
Type III: water based on reverse osmosis for general washing and autoclave supply
*Direct operation from tap water without the need for pre distilled water
*Integrated UV oxidation and ultrafiltration technologies
*Ozone based purification is not acceptable
*7LInternal storage tank, connect to an 15L external storage tank
*Automatic periodic recirculation of purified water to prevent biofilm formation
*LCD display screen showing resistivity or conductivity, temperature, water level, date and time in real time
*Volumetric dispensing function:
Flow rate for Type I water 1 L/m
Daily production capacity 10L for Type I and II water, 30L for Type III water
*Water quality for Type I:
Resistivity: 18.2 MΩ cm at 25°C
TOC: ≤5 ppb
Bacteria: ≤ 0.1 CFU/per ml
RNase: ≤ 1 pg/per ml
DNase: ≤ 5 pg/per ml
Endotoxins up to 0.001 EU per ml
Process
*Support Type III water as a separate output.
*System is supplied with an external pre-treatment unit adapted to local tap water condition: Main active ingredients: PP cotton + activated carbons.
*Supply the system with an external storage tank and full installation kit.
Technical Parameters:
| Model | BK-CUWP-30L | |
| Water Output Type | UP water outlet*1, RO water outlet*1, DI water outlet*1 | |
| Water Output Speed(25℃) | 30L/H | |
| Purifying Procedure | PF+AC+RO+AC+UV+UP+TF | |
| Water Supply Requirement | When working, the inlet water pressure is 0.1~0.3Mpa, and the water quality meets the requirements of GB5749, 5~45°C | |
| Purification System | PP filter element*1
Granular activated carbon filter*1 High quality coconut shell activated carbon filter*1 Large T33 filter*1 RO membrane*2 Ultra purification column*4 Capsule filter*1 |
|
| UP Water Quality | Resistivity | 18.1MΩ.cm@25℃ |
| Sodium Ion | <0.1μg/l | |
| Chloride Ion | <0.1μg/l | |
| Heavy Metal Ion | <0.1μg/l | |
| Si | <2μg/l | |
| Bacteria | <1cfu/100ml | |
| TOC | 20μg/L | |
| DI Water Quality | Resistivity | 10~18.1MΩ.cm@25℃ |
| Absorbance(254nm, 1 cm optical path length) | ≤0.001 | |
| Soluble Silicon (SiO2) | ≤0.01 | |
| RO Water Quality | Ion Rejection Rate | 96%~99% |
| Organic Rejection Rate | >99% | |
| Particles and Bacteria Rejection Rate | >99% | |
| Consumption | 74W | |
| Power Supply | AC100~240V, 50/60Hz | |
| Instrument Size(L*W*H) | 400*485*480mm | |
| Package Size(L*W*H) | Main body: 540*455*540mm, 25kg
Accessory kit: 425*295*475mm, 5kg |
|
| Gross Weight | 30kg | |
