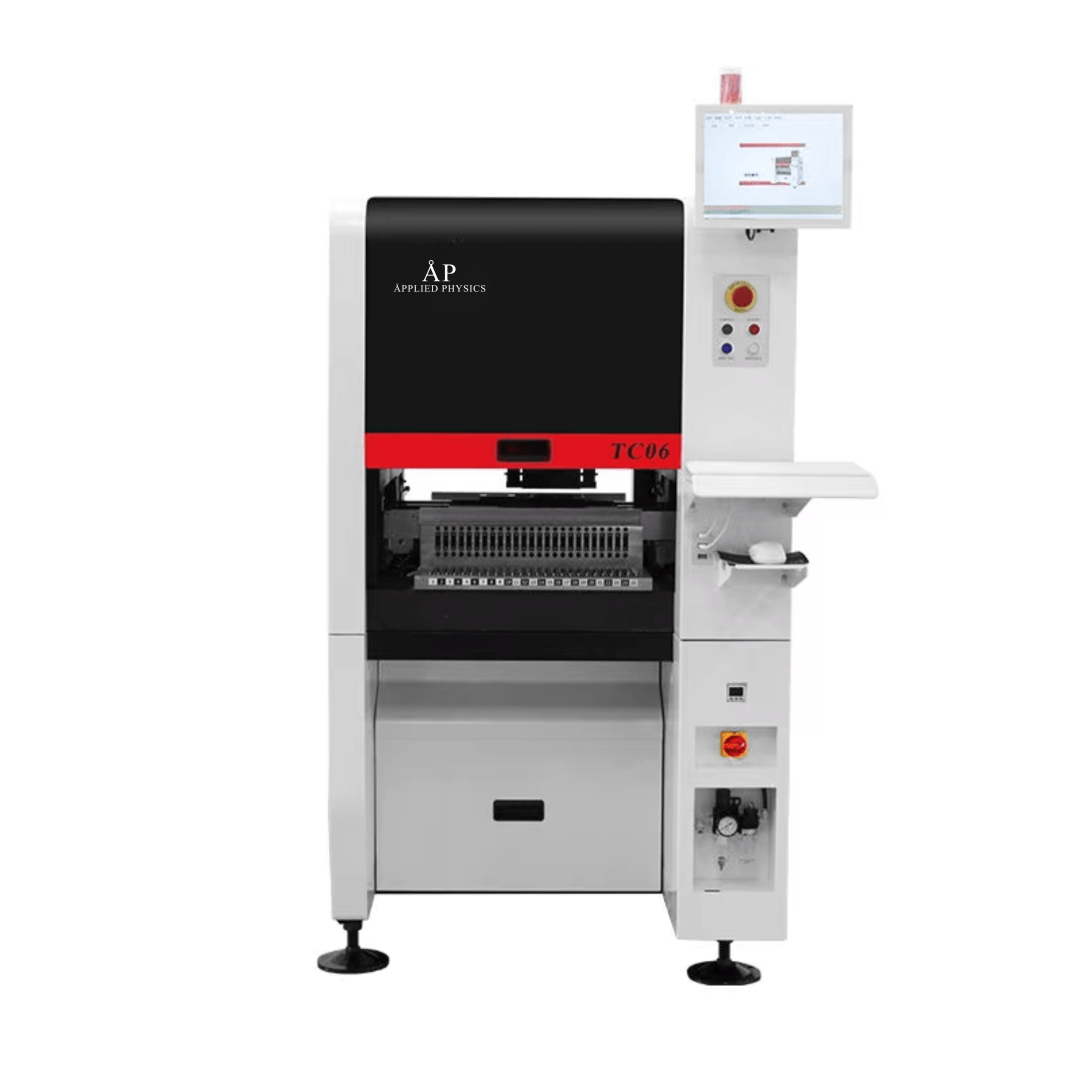

The Applied Physics TC06 is a high-performance, six-head SMT placement system engineered for small and medium-scale production environments that demand accuracy, speed, and reliability.

Its compact 890 mm-wide design allows effortless elevator transport and workspace integration, making it ideal for labs, studios, or modular manufacturing setups. Despite its small footprint, the TC06 delivers industrial-grade performance with consistent accuracy and long-term stability.

Overview

Every detail of the TC06 is developed to address real-world production pain points faced by electronics manufacturers. From automatic calibration and nozzle changing to preloaded component libraries and thermal stabilization, this system simplifies complex SMT operations into a smooth, repeatable, and highly efficient workflow.

Smart Engineering — Solving Production Challenges

Common Challenge

Integrated Applied Physics Solution

Inconsistent placement yields

CPK ≥ 1.0 process stability ensures precise, repeatable mounting results.

Reduced accuracy over time

Rigid cast-iron frame, Panasonic servo motors, and THK ball screws maintain long-term precision.

Manual nozzle swaps slowing production

Automatic nozzle changer replaces 6 nozzle types in under 30 seconds.

Limited workshop access or transport space

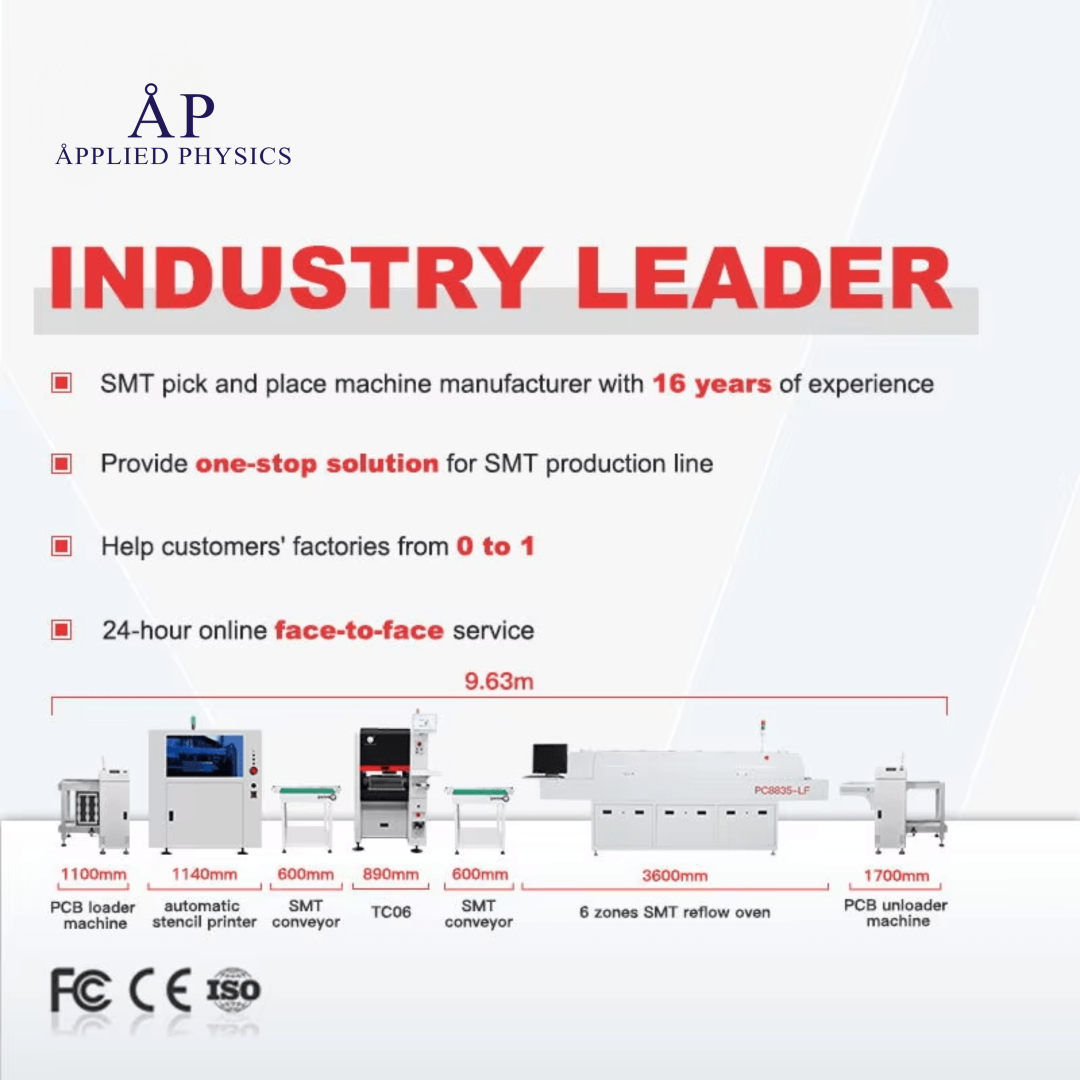

890 mm slim body design fits standard elevators and compact factory spaces.

Accuracy loss in extreme temperatures

Smart thermal compensation maintains ±0.01 mm accuracy all day.

Slow feeder setup

Laser auto-calibration system configures 50 feeders in 5 minutes.

Time-consuming new component setup

Preloaded component library enables drag-and-drop job creation.

Downtime during high-demand cycles

24/7 reliability operates like three synchronized systems in one.

Complex new operator training

Intuitive user interface reduces operator learning time to under one hour.

Advanced Mechanical and Vision Architecture

Function

Description

Process Capability (CPK)

Guarantees consistent precision with measurable statistical process control.

Auto Nozzle Change

19-hole nozzle library manages multi-component changes automatically.

Mounting Head

Universal multifunctional head supports 01005 to 36mm × 36mm components without replacement.

Structural Framework

Integrated cast gantry and machining platform for maximum rigidity and vibration resistance.

Vision System

Dual camera system with IC camera (up to 36mm) and fly cameras (16mm × 16mm) for real-time recognition accuracy.

Feature Detection

Automatic pin and outline recognition ensures correct orientation for every component.

TC06 Technical Specifications

Specification

Details

Dimensions

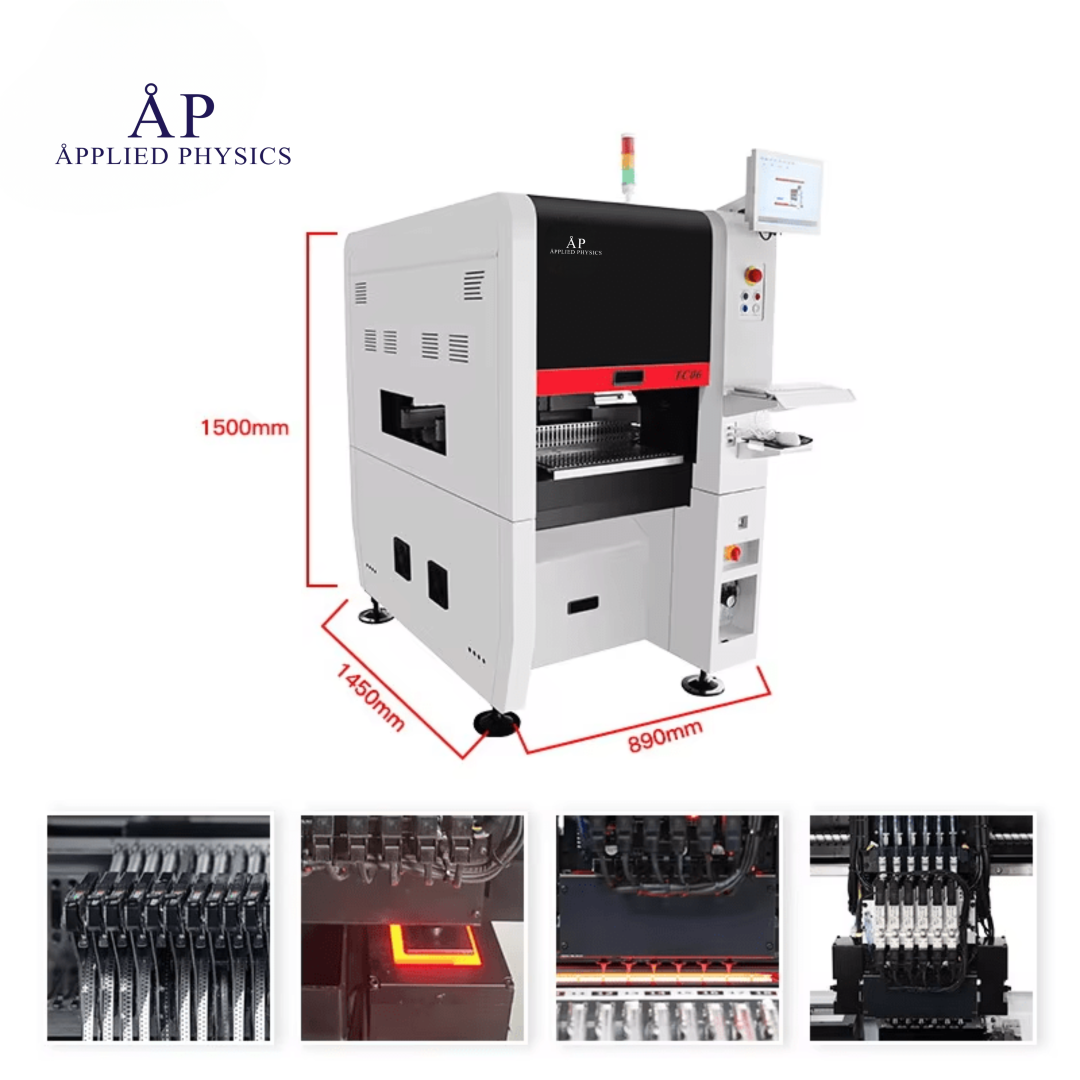

890mm (L) × 1450mm (W) × 1500mm (H)

Weight

910 kg

Power Supply

AC 220V (50Hz, single phase), 3 kW

Air Supply

0.5 MPa – 0.7 MPa

Vacuum Generation

Built-in vacuum pump

Mounting Heads

6

Mounting Speed

27,800 CPH (optimal)

Mounting Accuracy

(XY) ±0.04 mm, CPK ≥ 1.0

Component Height

≤12 mm

Component Types

Resistors, capacitors, diodes, transistors, aluminum capacitors, SOT, SOP, QFP, QFN, BGA, etc.

PCB Thickness

0.6 mm – 3.5 mm

PCB Size

350 mm (L) × 300 mm (W) (standard)

PCB Conveying

3-stage buffered conveyor

Nozzle Change

Automatic, 19-hole nozzle library

Control System

Built-in industrial computer (Windows 7) with monitor, keyboard, and mouse

Drive System

Panasonic servo motors on X and Y axes

Transmission System

Ground screw + linear guide

Feeding System

50 NXT 8mm feeder stacks (compatible with IC trays and stick feeders)

Vision System

6 fly cameras (≤16mm × 16mm), 1 IC camera (≤36mm × 36mm), 2 Mark cameras with automatic pin recognition and image stitching

Applied Physics Advantage

The TC06 optimizes production space, minimizes downtime, and simplifies complex SMT processes through automation and precision engineering. Its seamless balance between compactness and capability makes it the premier choice for manufacturers who need enterprise-grade results in a workshop-friendly footprint.
