In the world of semiconductor manufacturing and cleanroom validation, the margin for error is nonexistent.
As microchips become smaller and more complex, the ability to detect and quantify sub-micron particles on silicon wafers is critical.
This is where PSL (Polystyrene Latex) Spheres, the gold standard for metrology calibration, play a pivotal role.
Understanding the science behind these spheres is essential for any facility looking to improve the accuracy of its Scanning Surface Inspection Systems (SSIS).
Polystyrene Latex (PSL) spheres are uniform, spherical particles synthesized from polymer materials. In metrology, they are utilized as size standards because of their incredible dimensional stability and uniform shape.

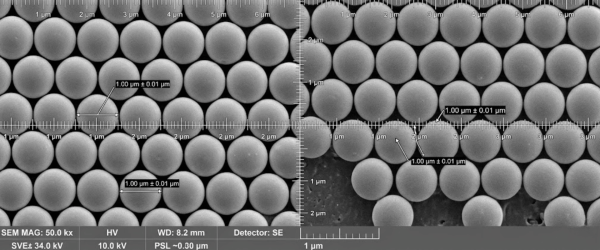

These spheres are typically suspended in deionized water and are engineered to have a near-perfect spherical geometry. Because their size can be measured with extreme precision using differential mobility analyzers or electron microscopy, they serve as the ruler for calibrating optical particle counters and wafer inspection tools.
A Scanning Surface Inspection System (SSIS) uses laser light scattering to detect contamination on a wafer surface. However, a laser doesn’t inherently know the size of a particle; it only measures the intensity of the light reflected off it.

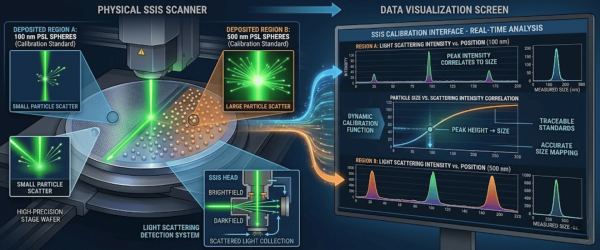

Without a known reference, the inspection tool cannot differentiate between a harmless artifact and a critical defect. PSL spheres provide this reference. By depositing a known size of PSL spheres onto a calibration wafer standard, engineers can program the SSIS to recognize specific light scattering intensities as specific particle sizes.
In high-stakes environments like semiconductor fabs, close enough isn’t an option. Calibration must be grounded in absolute truth.
NIST-traceable PSL spheres are particles whose size has been verified against the standards set by the National Institute of Standards and Technology.
Using NIST-traceable materials
In semiconductor fabrication, yield is the percentage of functional chips produced from a single wafer. Contamination is the leading cause of yield loss.
By using high-purity PSL spheres for routine calibration, facilities can fine-tune their SSIS sensitivity. This ensures that the equipment identifies real threats with high precision, directly protecting the bottom line and improving overall production efficiency.
| Parameter | Technical Specification / Value | Impact on SSIS Accuracy |
|---|---|---|
| Refractive Index ($n$) | 1.5905 @ 589 nm (25 °C) | Determines light scattering intensity used in Mie Theory calculations |
| Density ($\rho$) | 1.05 g/cm³ | Ensures neutral buoyancy in aqueous suspensions for uniform particle deposition |
| Material | Polystyrene / Divinylbenzene (DVB) | Provides high-dimensional stability and resistance to laser‑induced melting |
| Size Distribution (CV) | < 3% (Coefficient of Variation) | Guarantees monodispersity; essential for clear size‑peak identification |
| Surface Charge | Sulfate or Carboxyl Modified | Prevents particle clumping (agglomeration) during wafer deposition |
| Traceability | NIST (National Institute of Standards and Technology) | Provides a legal and technical benchmark for global quality audits |
Not all metrology needs are the same. Calibration requirements vary based on the technology node being manufactured.
The science of PSL spheres is the foundation of modern contamination control.
By providing a stable, predictable, and NIST-traceable reference point, these tiny polymer spheres allow the semiconductor and pharmaceutical industries to push the boundaries of what is possible.
For any metrology professional, investing in high-quality PSL calibration standards is not just a maintenance task; it is a critical step in ensuring the accuracy, reliability, and yield of the entire manufacturing process.
PSL spheres are used because of their near-perfect spherical shape and stable refractive index. This consistency makes light scattering patterns predictable, allowing metrology tools to be calibrated with extreme precision.
NIST traceability ensures that the particle sizes have been verified against official standards from the National Institute of Standards and Technology. This provides a global benchmark for accuracy and is essential for passing industrial quality audits.
To maintain their integrity, PSL suspensions should be stored in a refrigerated environment between8∘C. This prevents particle clumping (agglomeration) and inhibits microbial growth, ensuring the calibration remains reliable.
Continue from SSIS theory to the calibration standard
Choose the wafer or particle reference used to verify KLA-Tencor Surfscan and other SSIS size-response workflows.
REFERENCE PATH
Select a certified particle suspension when preparing a reference in-house, or a deposited wafer when the scanner needs a ready-to-use surface standard.
PARTICLE REFERENCE PATH
Certified PSL particles support size-reference work, while a prepared wafer adds substrate and deposition geometry to the inspection challenge.
APPLIED PHYSICS TECHNICAL RESOURCE
Wafer inspection, SSIS calibration, particle deposition references, process control and semiconductor measurement workflows. Product and standards references should be interpreted for the actual instrument, facility, protocol and configuration.
