The Science of Particle Purging: Why High-Velocity Air Showers Are Essential for Cleanrooms

Ultra-clean manufacturing, from semiconductor fabrication to pharmaceutical compounding, the greatest threat to product integrity is the human element.

Even in full cleanroom garb, personnel carry microscopic particles that can compromise a sterile environment.

This is where the science of particle purging via high-velocity air showers becomes the frontline of defense.

Understanding the Physics of Contamination Control

A cleanroom air shower is not merely a fan in a box. It is a specialized pressure chamber designed to utilize high-velocity air jets to displace and capture surface contaminants before they can enter a controlled environment.

The primary goal is kinetic displacement. Dust, skin flakes, and textile fibers cling to cleanroom suits through electrostatic forces and mechanical entrapment. To break these bonds, air must be delivered at specific velocities and angles to effectively scrub the operator’s surface.

Why High-Velocity Showers are Non-Negotiable for Compliance

For facilities adhering to USP <797>, USP <800>, or GMP guidelines, contamination is a legal and safety risk.

Yield Protection: In semiconductor manufacturing, a single sub-micron particle can ruin a silicon wafer.
Sterility Assurance: In pharmaceutical settings, particles can carry viable microorganisms (bacteria or spores) into sterile filling zones.
Operational Efficiency: By reducing the particle load on the cleanroom’s primary HVAC system, air showers extend the life of expensive ceiling HEPA filters.

The Role of High‑Velocity Air (20 m/s) in Particle Displacement

The effectiveness of an

is directly related to its air velocity. Normal atmospheric air movement is not sufficient to remove particles smaller than 5 microns.

We have

these air showers to deliver air at speeds exceeding 20 meters per second (m/s). This high‑velocity flow creates a turbulent boundary layer around the operator.

Vibrates and Lifts: Removes particles trapped in the weave of cleanroom garments.
Prevents Redeposition: Maintains continuous downward or lateral airflow, so dislodged particles are immediately carried toward the return air vents.
Ensures Uniformity: Uses adjustable stainless steel nozzles to ensure that every square inch of the suit goes through the purging process.

Key Components of a High-Efficiency Air Shower

To meet the rigorous demands of ISO 14644-1 standards, an air shower must integrate several critical technologies.

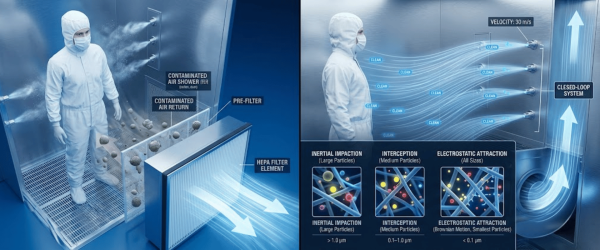

HEPA Filtration and the Closed-Loop System

The air used for purging must be cleaner than the air in the cleanroom itself. These units utilize a HEPA filtration system (99.99% efficiency at 0.3μm) to ensure that the scrubbing air is virtually particle-free.

A closed-loop design ensures that the same air is continuously filtered, purged, and recirculated, maintaining internal pressure and cleanliness.

Advanced Sensor Technology (Photoelectric Sensors)

Automation is key to preventing human error. Photoelectric sensors detect the entry of personnel, automatically triggering the high-velocity blowers.

This ensures that the purging cycle is completed every time, without the need for manual switches that could serve as touchpoints for cross-contamination.

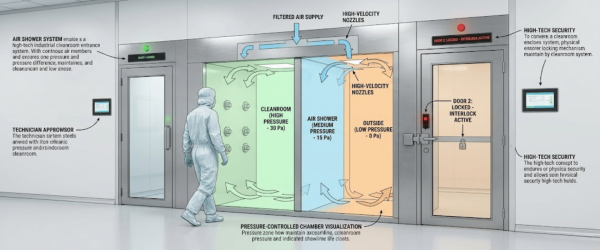

Electronic Interlocking and Air-Locking

An air shower acts as a buffer zone. Through electronic double-door interlocking, the system prevents both doors from being open simultaneously.

This maintains the pressure differential between the dirty changing area and the clean production zone, effectively functioning as a high-tech air lock.

Technical Comparison: High-Velocity Air Shower Performance

Feature	Standard Air Shower	Applied Physics High‑Velocity System	Benefit of Cleanroom
Air Velocity	12, 15 m/s	20, 25 m/s	Stronger kinetic force to dislodge sub‑micron particles
Filtration Efficiency	HEPA (99.97%)	HEPA / ULPA (99.99% @ 0.3 μm)	Ensures the air scrubbing of the person is virtually sterile
Sensor Type	Manual / Limit Switch	Photoelectric Infrared Sensors	Automatic activation prevents touch‑point contamination
Nozzle Material	Plastic or Aluminum	360° Adjustable Stainless Steel	Durable, corrosion‑resistant, and easy to decontaminate
Interlock System	Mechanical	Electronic Double‑Door Interlock	Maintains pressure integrity and prevents cross‑air flow
Cycle Control	Fixed Timer	Adjustable LED Microprocessor	Allows customization based on facility protocol (ISO 5 vs ISO 8)

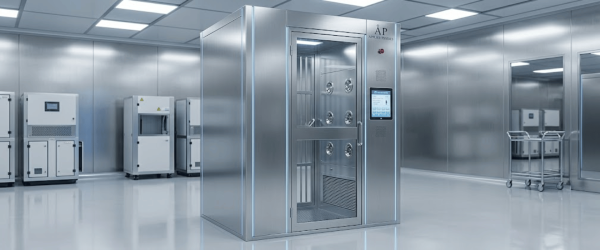

Features of Modern Air Shower Systems

Contemporary units, such as those provided by us, incorporate user-focused features that enhance safety and ease.

LED Displays: Real-time feedback on cycle times and system status.
Voice Prompts: Guiding personnel through the proper rotation and positioning during the shower.
Stainless Steel Construction: Ensuring the unit itself does not become a source of rust or microbial growth.
Emergency Overrides: One-touch buttons for immediate exit in case of power failure or safety concerns.

Conclusion

The science of particle purging is a combination of fluid dynamics, high-efficiency filtration, and automated control.

High-velocity air showers are not an optional luxury; they are a fundamental requirement for any facility where clean is the only acceptable standard.

By investing in high velocity (20m/s) technology, facilities ensure that their most volatile variable, the human operator, is no longer their greatest risk.

Frequently Asked Questions (FAQs)

1. What is the recommended air velocity for an effective air shower?

For effective particle purging, a velocity of at least 20 m/s is recommended. This high speed creates the necessary kinetic force to dislodge microscopic contaminants that low-velocity systems often miss.

2. How do air showers help in meeting ISO standards?

Air showers act as a critical buffer zone, preventing cross-contamination between different cleanliness zones. This helps facilities maintain strict compliance with ISO 14644-1 and USP 797/800 regulations.

3. Why are photoelectric sensors important in air shower design?

Photoelectric sensors allow for touchless operation. The system automatically detects personnel and triggers the cleaning cycle, which minimizes surface contact and prevents the spread of bacteria.

4. How often do the HEPA filters in an air shower need to be replaced?

While it depends on usage, the closed-loop system in high-quality air showers protects the filters. Typically, filters are inspected every 6–12 months to ensure they maintain 99.99% efficiency at 0.3μm.
