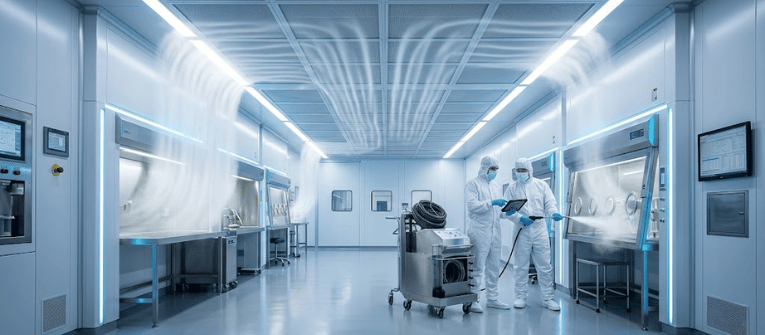

Two technicians in full cleanroom suits inspect sterilized lab equipment and airflow systems inside a modern pharmaceutical cleanroom

Modernizing Cleanroom Validation with Ultrapure Foggers

In highly regulated environments, such as pharmaceutical compounding suites, semiconductor fabs, and medical device manufacturing facilities, maintaining a sterile environment is not just a goal; it is a legal requirement.

Cleanroom validation ensures that airflow patterns effectively sweep contaminants away from critical work zones.

As standards such as ISO 14644-3 and USP <797> become more stringent, the tools used to visualize airflow must evolve.

Traditional methods are being replaced by modern Ultrapure Foggers, which offer unprecedented clarity without the risk of contamination.

The Evolution of Smoke Studies: From Sticks to Ultrapure Vapor

Historically, smoke studies were performed using chemical smoke sticks or glycol-based generators. While functional, these methods introduced secondary risks.

technician in cleanroom suit using a traditional smoke stick producing thin uneven smoke technician using modern ultrapure fogger emitting dense white fog to visualize laminar airflow

  • Residue Accumulation: Chemical smoke leaves behind particulates that can settle on sensitive equipment or products.
  • Lower Density: Traditional smoke often lacks the thickness needed to track airflow over long distances or through complex machinery.

Key Features of the AP Series Ultrapure Foggers

We have designed the AP series while keeping the specific challenges of validation engineers in mind.

  • Adjustable Fog Density and Velocity: This allows the operator to match the fog speed with the existing cleanroom airflow, preventing the creation of artificial turbulence.
  • Remote Operation: Operators can trigger the fogger from outside the sterile zone, ensuring that the presence of a human body does not affect the airflow patterns being measured.
  • Stainless Steel Construction: This design is intended for long‑term use and allows for easy wipedown cleaning in sterile environments.

The Shift to Ultrapure Technology

Ultrapure foggers represent the pinnacle of contamination control. By combining high-purity Liquid Nitrogen (LN2) with deionized (DI) water or Water for Injection (WFI), these systems create a high-density, neutral-buoyancy vapor.

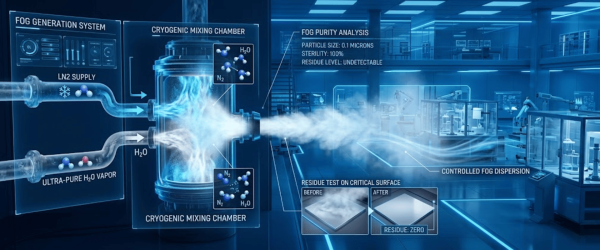

Cryogenic fog generation system diagram showing LN2 and ultra‑pure H2O vapor mixing in a chamber, producing controlled, residue‑free fog in a lab

Because the fog consists solely of water and nitrogen, it reverts to gas upon evaporation, leaving zero residue in the cleanroom.

Comparing Ultrapure (LN2) vs. Ultrasonic Foggers

While both technologies serve the cleanroom industry, they cater to different needs:

  • Ultrapure (LN2) Foggers: Best for large-scale cleanrooms and pharmaceutical suites. They provide the highest density and longest throw for tracking airflow over long distances.
  • Ultrasonic (CRF) Foggers: Ideal for smaller spaces, such as biosafety cabinets (BSCs) or fume hoods. They are more portable and cost-effective for localized balancing but produce a lower volume of fog compared to LN2 units.

Why Ultrapure Foggers are Essential for ISO 14644-3 Compliance

ISO 14644-3, Annex B7, outlines the requirements for airflow visualization. To meet these international standards, facilities must demonstrate laminar flow and identify turbulence or dead air zones.

Unmatched Visual Contrast

Modern systems like the AP35 and AP100 produce massive volumes of fog (up to 15.5 cubic meters per minute).

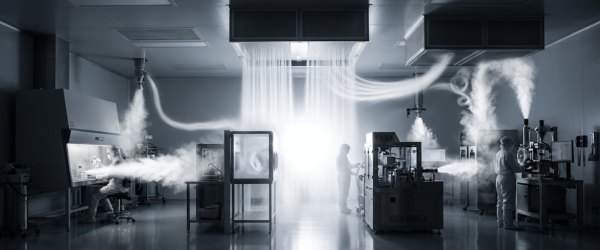

Sterile laboratory with technicians in protective suits operating equipment as airflow and vapor streams circulate through the room

This high-density output is crucial for high-definition video documentation, which is often required by regulatory inspectors to prove that airflow is effectively protecting the product.

Residue-Free Performance

In Grade A or Class 10 environments, even microscopic residue can result in a batch failure. Ultrapure foggers eliminate this risk.

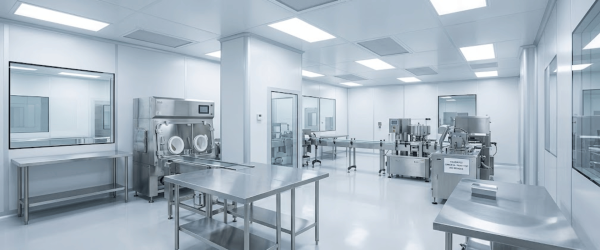

Sterile, bright pharmaceutical cleanroom with stainless steel tables, glovebox isolator, conveyor line and packaging machinery

This allows for validation to occur in as-built or at-rest states without the need for extensive cleaning protocols afterward.

Comparison: Ultrapure vs. Ultrasonic Fogging Technology

Feature Ultrapure (LN2) Foggers Ultrasonic (CRF) Foggers
Fog Medium Liquid Nitrogen + DI Water DI Water / WFI Water
Residue Level Zero (100% Residue‑Free) Minimal (Water‑based)
Fog Density Very High (Best for Large Areas) Moderate (Best for Small Areas)
Laminar Flow Visibility Excellent (Up to 15–20 feet) Good (Up to 6–10 feet)
Standard Compliance ISO 14644‑3, USP 797, USP 800 ISO 14644‑3
Best Use Case Large Cleanrooms, Pharmaceutical Fabs BSCs, Fume Hoods, Glove Boxes
Portability Rolling Trolley Design Compact Handheld / Portable

Conclusion

Modernizing your cleanroom validation process with ultrapure technology is more than a technical upgrade; it is a risk-mitigation strategy.

By utilizing high-density, residue-free vapor, facilities can ensure 100% compliance with ISO standards while protecting the integrity of their products.

Frequently Asked Questions (FAQs)

1. Why are ultrapure foggers preferred over standard water foggers?

Ultrapure foggers use Liquid Nitrogen (LN2) to create a high-density vapor that is 100% residue-free. Unlike standard ultrasonic foggers, they leave zero trace on sensitive equipment, making them the gold standard for high-level pharmaceutical and semiconductor environments where contamination is not an option.

2. Do ultrapure foggers comply with ISO 14644-3 requirements?

Yes, these foggers are specifically designed to meet and exceed ISO 14644-3 Annex B7 standards. They provide the necessary fog density and throw distance to clearly visualize laminar airflow and identify turbulence, which is essential for official cleanroom certification and audits.

3. Can I use ultrapure fogging in a Live Grade A sterile suite?

Absolutely. Because the fog consists only of high-purity nitrogen and water vapor (DI or WFI), it is completely safe for sterile environments. You can perform your airflow studies in an as-built or at-rest state without the need for extensive post-study decontamination.

4. How far can the fog travel during an airflow visualization study?

High-performance units like the AP100 can project visible vapor up to 20 feet or more. This long-distance throw allows validation engineers to track airflow patterns across large equipment banks and through complex ducting where smaller portable foggers would fail to reach.

5. Why is fog density important for FDA and EMA documentation?

Regulatory bodies like the FDA require high-quality video evidence of smoke studies. Ultrapure foggers provide the maximum visual contrast needed for high-definition recording, ensuring that inspectors can easily see that airflow is effectively sweeping contaminants away from critical zones.
