Silica Particles
April 2, 2026
Protecting healthcare workers from the risks of hazardous drugs (HDs) requires more than just high-quality equipment; it demands visual proof that safety systems are working correctly.
USP Chapter <800> provides the framework for the safe handling of these drugs, but the physical validation of containment often relies on airflow visualization, commonly known as a fog study.
By using high-purity fog to map air movement, laboratories can pinpoint exactly where containment might fail.
USP <800> standards focus on minimizing exposure to hazardous drugs for both personnel and the environment. One of the most critical components of this standard is the use of Containment Primary Engineering Controls (C-PECs), such as biological safety cabinets or compounding aseptic containment isolators.
Standard operating procedures require that these units maintain a specific airflow pattern to keep hazardous particles away from the operator. A fog study provides a smoke test that makes these invisible air currents visible. Without this visual validation, a lab cannot truly guarantee that its containment systems are performing to safety specifications.
Conducting a successful study requires precision and a clear understanding of the lab’s layout. Following a structured approach ensures the data collected is actionable.
Clear the C-PEC of unnecessary items. Ensure the ventilation system is running at its standard operating speed.
Position the fogger output at the work surface level where hazardous drug compounding actually occurs.
Slowly move the fog source across the workspace. Watch how the fog reacts to equipment, containers, and the operator’s hands.

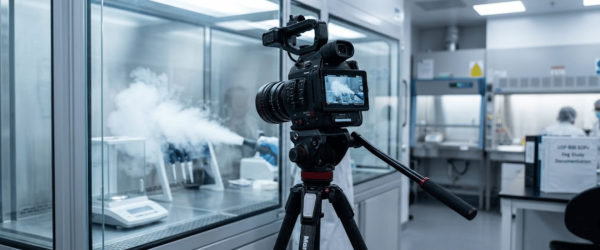

Capture high-resolution video of the airflow. This video serves as the primary evidence of compliance during audits and safety inspections.
If the fog escapes the containment area or swirls excessively, adjustments to the equipment or room ventilation are necessary.
Airflow within a lab or pharmacy is never truly static. HVAC systems, door openings, and even the movement of personnel can create turbulence.
In a USP <800> environment, even minor turbulence can cause hazardous drug residue or vapors to escape the containment area.
Choosing the correct visualization tool depends on the cleanroom class and the volume of the space being tested.
Use the following comparison to determine which fogger meets your laboratory’s safety requirements.
| Feature | Ultrasonic Cleanroom Foggers | Ultrapure (LN₂) Foggers |
|---|---|---|
| Purity Level | High (Deionized Water) | Maximum (Molecular Level) |
| Fog Density | 50–100 ml per minute | 500–2000 ml per minute |
| Residue Risk | Zero | Zero |
| Best Use Case | USP <800> Compounding Pharmacies | Large‑Scale Semiconductor Fabs |
| Portability | Lightweight & Handheld | Large Cabinets / Heavier |
| Compliance | ISO 14644‑3 & USP <800> | ISO 1–9 & All USP Standards |
Integrating fog studies into your annual or semi-annual safety protocols significantly reduces the risk of accidental exposure. While sensors and monitors provide digital data, they cannot show the path of a contaminant in the same way a physical fog study can.
Implementing these studies demonstrates a proactive commitment to staff safety. By visualizing the invisible, lab managers can ensure that their facility remains fully compliant with USP <800> while providing the highest level of protection for their team.
Visualizing airflow through professional fog studies is the most reliable way to confirm that hazardous drug containment systems are functioning as intended.
By identifying turbulence and dead zones early, facilities can maintain strict USP 800 compliance and protect their personnel from accidental exposure.
Investing in high-purity fogging equipment ensures a sterile, safe environment where safety is verified through clear, physical evidence.
Fog studies should be conducted during initial certification, after any equipment repairs, or whenever there are significant changes to the lab layout to ensure ongoing containment.
No. Standard machines use oils or chemicals that leave residues. USP 800 environments require ultrapure water-based foggers to maintain sterility and prevent surface contamination.
High-density fog provides the visual contrast needed to see rapid air movements and turbulence that lighter mist might miss, making it easier to record for compliance audits.
