Enhancing Safety in Clinical Labs with Advanced Biological Cabinets

Biological containment is the single most critical factor in a modern clinical laboratory.

When handling infectious pathogens or sensitive diagnostic samples, the equipment must do more than just provide a workspace; it must act as a precise, engineered barrier.

Biological Safety Cabinets (BSCs) are designed to meet this need by managing airflow to protect the operator, the environment, and the sample simultaneously.

Understanding the Role of a BSC in Contamination Control

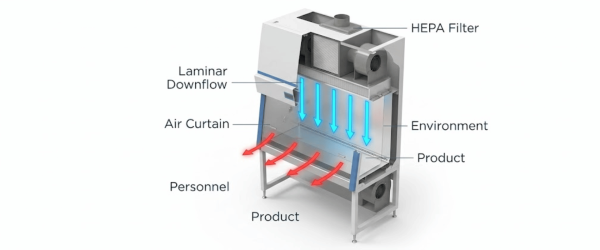

Unlike standard fume hoods or laminar flow benches, a BSC is a specialized ventilated enclosure. Its primary function is to provide Triple Protection.

Personnel Protection: An air curtain at the front opening prevents aerosols from escaping toward the technician.
Product Protection: HEPA-filtered downflow creates an ultra-clean work zone, protecting samples from cross-contamination.
Environmental Protection: All exhaust air is passed through a HEPA filter before being released, trapping 99.97% or more of microscopic particles.

Critical Features of Modern Biological Cabinets

Clinical facilities now prioritize smart features that reduce human error and improve long-term reliability.

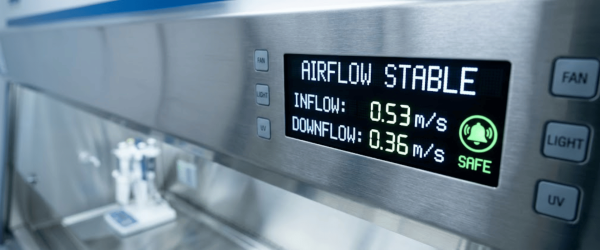

1) Real-Time Velocity Monitoring

Advanced units use thermal or pressure sensors to monitor inflow and downflow velocities constantly.

If the air curtain is compromised, for instance, by a window being opened too high, audible and visual alarms trigger instantly to alert the user.

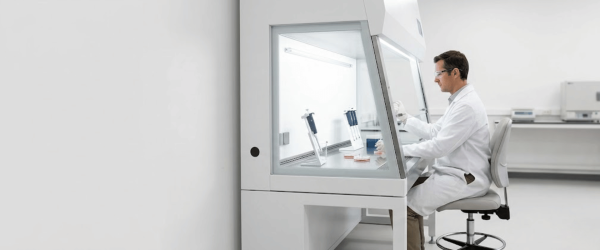

2) Ergonomics and User Focus

Operator fatigue is a major cause of laboratory accidents.

Modern cabinets feature

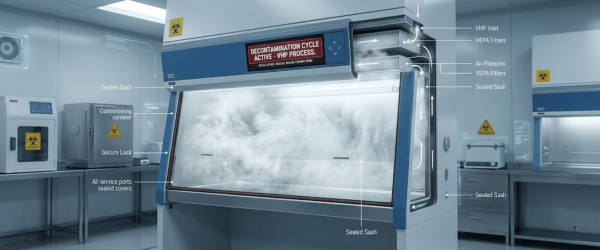

3) Sterilization and Maintenance

Vaporized Hydrogen Peroxide (VHP) compatibility is now a standard requirement for high-containment labs.

This allows for total gaseous decontamination of the cabinet’s internal plenums and filters without leaving chemical residues.

Core Technology: HEPA Filtration and Airflow Dynamics

The effectiveness of an advanced cabinet relies on two pillars of physics: High-Efficiency Particulate Air (HEPA) filtration and Laminar Airflow.

The Precision of HEPA Filters

Modern BSCs typically use H14 HEPA filters. These are rated to capture particles as small as 0.3 microns with extreme efficiency.

This filtration ensures that the air reaching the work surface meets ISO Class 5 cleanliness standards, which is vital for molecular diagnostics and sterile compounding.

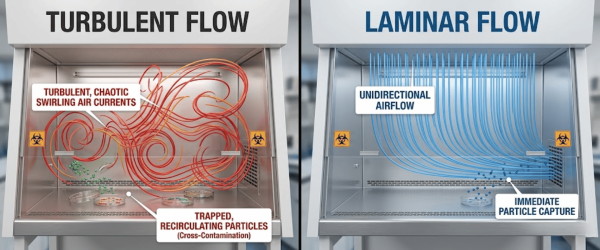

Laminar vs. Turbulent Flow

To prevent cross-contamination between samples, air must move in a unidirectional or laminar pattern. Advanced cabinets are engineered to eliminate dead zones or air turbulence.

This ensures that any particles generated during a procedure are immediately captured by the airflow and pulled into the filtration system.

Comparing BSC Types for Clinical Use

Not every lab requires the same level of containment. Choosing the right class depends on the Bio-Safety Level (BSL) of the pathogens involved.

Feature	Class II, Type A2	Class II, Type B2
Air Recirculation	70% recirculated	0% (total exhaust)
Exhaust Connection	Can be room exhausted	Must be hard‑ducted
Chemical Usage	Minute amounts only	Volatile chemicals allowed
Primary Use	Standard clinical diagnostics	Toxicology and pharmaceutical applications

Compliance and Validation Standards

To maintain safety certification, BSCs must be validated annually against international standards:

NSF/ANSI 49: The primary standard for the design and performance of Class II cabinets.

ISO 14644-1: Used to classify the air cleanliness within the work zone.

EN 12469: The European standard for microbiological safety cabinets.

Validation typically involves smoke studies (airflow visualization) to prove that the air curtain is intact and that no air from the work zone is escaping into the laboratory.

Conclusion

An advanced biological safety cabinet is the most important investment for any facility handling biological risks.

By combining high-efficiency filtration with precise airflow engineering, these cabinets provide the controlled environment necessary for both technician safety and diagnostic accuracy.

Frequently Asked Questions (FAQs)

1. What is the difference between a BSC and a fume hood?

A standard fume hood only protects the user by pulling air away from them. In contrast, a Biological Safety Cabinet (BSC) uses HEPA filtration to protect the user, the sample, and the surrounding environment from biological hazards.

2. How often should a Biological Safety Cabinet be certified?

To maintain compliance with NSF/ANSI 49 and ISO standards, a BSC must be certified upon installation and then at least once every 12 months. More frequent testing may be required in high-risk BSL-3 laboratories.

3. Can a BSC protect against volatile chemical fumes?

Standard Class II Type A2 cabinets recirculate air and are not designed for volatile chemicals. If your lab work involves toxic or flammable vapors alongside biological agents, you must use a Class II Type B2 Total Exhaust cabinet.

4. Why is HEPA filtration critical for lab safety?

HEPA filters are the heart of a BSC, capturing 99.97% of particles as small as 0.3 microns. This ensures that the air reaching your samples is sterile and that any pathogens generated during work are trapped before the air is exhausted.
