USP Airflow Visualization: A Compliance Guide

Achieving USP <797> compliance requires more than just high-quality filters; it demands visual proof of airflow integrity within your ISO Class 5 environment.

For sterile compounding pharmacies, Airflow Visualization or smoke studies are the only way to prove that your Primary Engineering Control (PEC) is actually protecting the Direct Compounding Area from potential contaminants.

USP <797> Regulatory Requirements

The 2023 updates to USP <797> have made it clear: simply having a certified hood is not enough.

You must demonstrate that the airflow remains unidirectional and undisturbed during actual working conditions.

Visualization must be performed

• During Initial Commissioning: Before any compounding begins in a new PEC.
• Every 6 Months: As part of the semi-annual recertification process.
• After Major Changes: If equipment is moved, or if the airflow patterns are altered by room modifications.

Step-by-Step Implementation Process

1) Preparation of the PEC

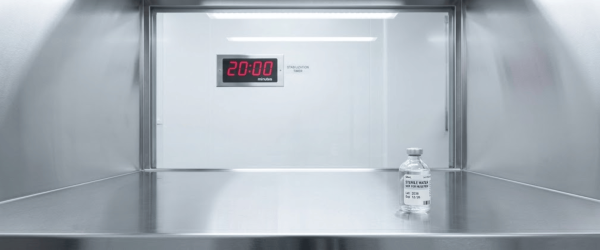

Remove all non-essential items. Ensure the PEC fans and cleanroom HVAC have been stabilized for at least 20 minutes before starting the fogger.

2) Establish First Air Visualization

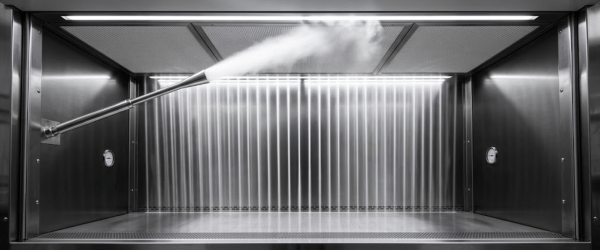

Direct the fogger output at the HEPA filter face. You should see a smooth, laminar airflow moving directly toward the work surface.

If the fog swirls or moves backward (reflux), your hood may need adjustment.

3) Conduct Dynamic Simulation

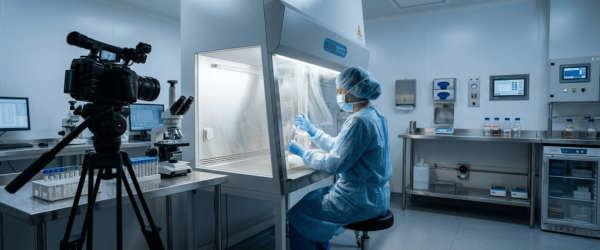

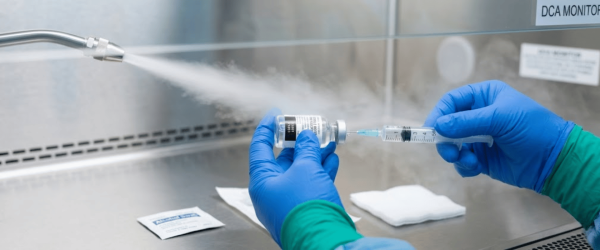

Have your technician perform a mock compounding procedure. Place the fogger wand so the vapor flows over the Direct Compounding Area.

The goal is to verify that First Air (uninterrupted, clean air) reaches the critical site, like the needle entry point, without being blocked by the technician’s hands or supplies.

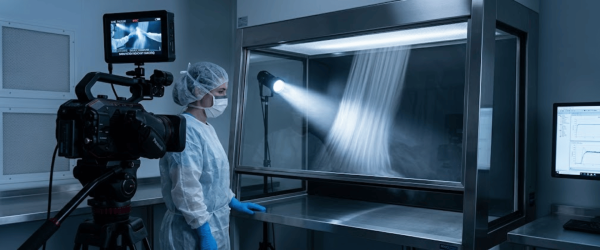

4) HD Video Documentation

Inspectors now expect high-definition video proof. Ensure your lighting is optimized so the fog is clearly visible against the background.

The video must show the air successfully recovering its laminar path after being disrupted by movement.

The Shift to Dynamic Testing

A major area of non-compliance is testing only under static conditions.

USP <797> mandates dynamic testing, which means the smoke study must be conducted while the pharmacy is in full operation.

This includes

• Technician Presence: At least one person must be at the hood.

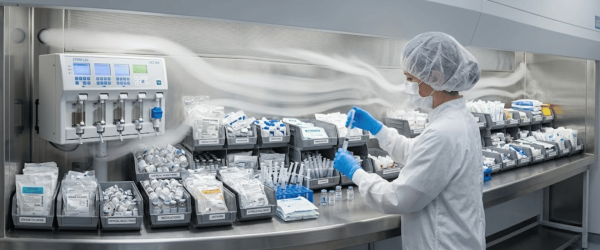

• Standard Movements: Simulating the actual compounding process (drawing liquid, cleaning surfaces).
• Equipment Obstruction: Keeping all regular equipment (bins, pumps) inside the PEC during the test to see how air flows around them.

Choosing the Right Tool: Fogger Comparison

Selecting the right equipment is vital for a clear, residue-free visualization.

Depending on the size of your facility and the sensitivity of your environment, different fogging technologies may be required.

Selecting Fogger

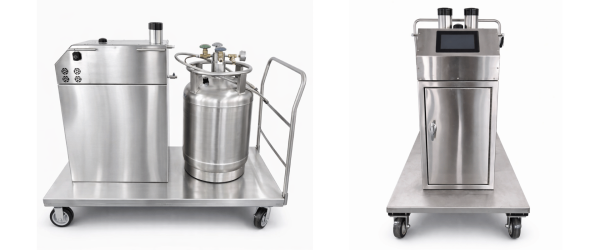

Feature	Ultrapure Foggers (LN2)	Ultrasonic Foggers (CRF Series)
Technology	Liquid Nitrogen + DI Water	Ultrasonic Transducers + DI/WFI Water
Fog Density	Very high (Maximum visibility)	High (Ideal for hoods/isolators)
Residue	None (Completely evaporates)	Minimal to none
Portability	Low (Larger units)	High (Compact and easy to move)
Best Use Case	Large cleanrooms and aseptic suites	Compounding hoods and benchtop PECs
Visual Range	20+ feet of visible airflow	6 to 10 feet of visible airflow

Common Mistakes to Avoid

• Using Chemical Smoke: Old-fashioned smoke sticks can leave chemical residues that ruin sterile environments. Always use high-purity water-based fog.
• Poor Lighting: If the camera can’t capture the fog movement, the study is effectively useless for audit purposes.
• Neglecting the DCA: Don’t just show that the hood has smoke in it; show specifically where the compounding happens.

Conclusion

Properly implemented airflow visualization is a safety guarantee for your patients.

By utilizing precision tools from us and adhering to a strict dynamic testing protocol, you ensure your facility stays ahead of regulatory audits while maintaining the highest levels of sterility.

Frequently Asked Questions (FAQs)

1. How often must USP <797> airflow visualization be performed?

According to USP <797> standards, smoke studies must be conducted at least every six months during the semi-annual recertification. Additionally, you must re-perform the visualization whenever a new Primary Engineering Control (PEC) is installed or if the cleanroom layout undergoes significant changes.

2. Can I use chemical smoke sticks for ISO Class 5 testing?

It is not recommended. Chemical smoke sticks often leave behind particulate residue that can contaminate a sterile environment. For USP <797> compliance, it is best practice to use high-purity DI water or LN2 foggers, like the CRF series, which produce a clean, residue-free vapor.

3. What is the main difference between static and dynamic testing?

Static testing proves the hood’s airflow is functional when empty, while dynamic testing simulates actual working conditions. USP <797> requires dynamic testing to ensure that First Air reaches the compounding site even when technicians, supplies, and equipment movements are present.
