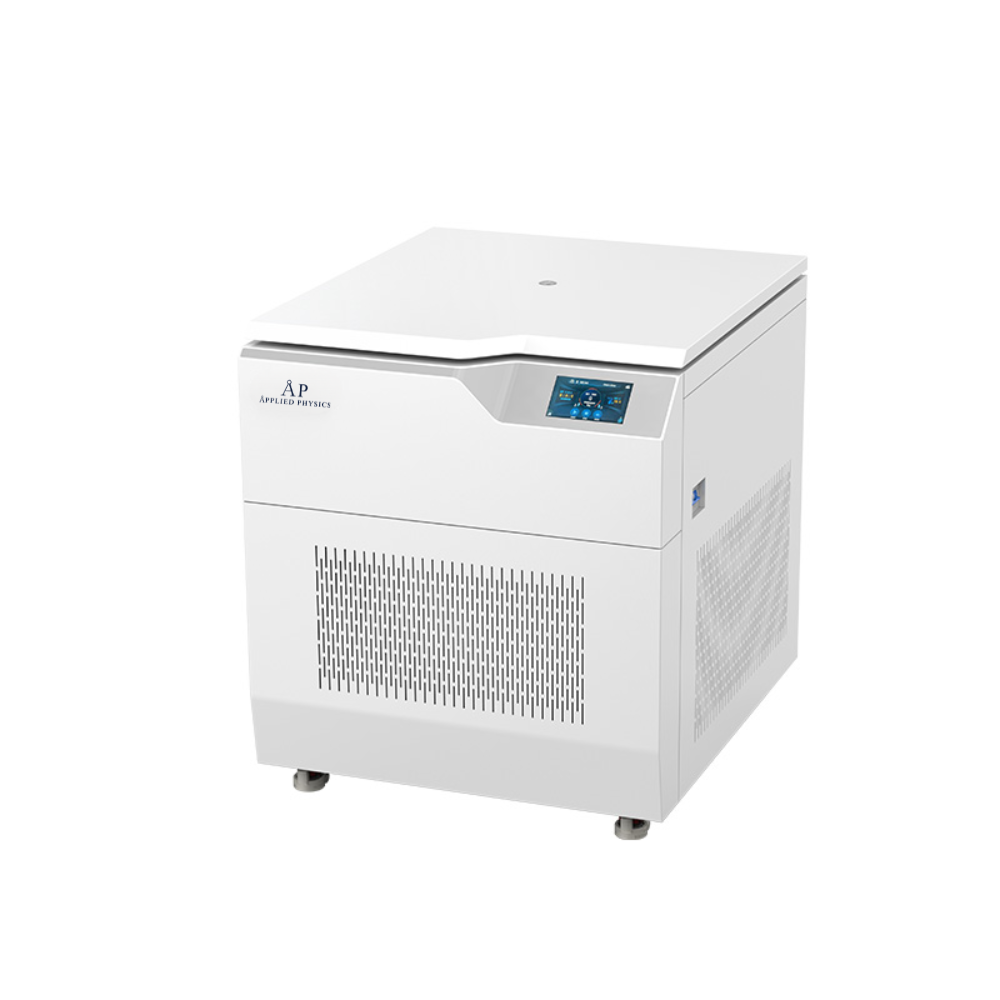

Blood Bag Centrifuge BKC-VL8RD-I

Description

Blood Bag Centrifuge BKC-VL8RD-I

Features:

1. Beautiful appearance, the whole machine body is made of high-quality steel structure, with built-in fine steel explosion-proof protective inner sleeve, three-layer protection, safe and reliable.

2. The maintenance-free variable frequency motor and flexible shaft drive system are used to directly drive the rotor, combined with a multi-stage shock absorption structure, so that the whole machine runs more smoothly, with less vibration and lower noise.

3. Imported compressor unit, double-cycle refrigeration, strong heat exchange capacity, more accurate temperature control, and fluorine-free refrigerant are used to protect the environment.

4. The control uses a microcomputer processor to more accurately control parameters such as speed, temperature, and time.

5. 10 groups of user-defined programs can be stored, which is convenient for calling common programs, and the last program is used when starting.

6. There are 10 lifting and lowering rates to choose from to meet various test needs.

7. The mechatronic self-priming door lock can easily open and close the cover with one hand, reducing the labor intensity of the operator.

8. It has multiple real-time monitoring functions such as self-inspection, door cover, imbalance, overspeed, and overtemperature to protect personnel safety.

9. The rotor body is made of national aviation standard aluminum material 7075-T6, which is processed and formed after forging and A-level deep flaw detection, and passes static balance test and dynamic balance test, making the rotor safer and more reliable. Combined with three-level vibration reduction, the centrifugal effect is optimal.

Technical Parameters:

Model

BKC-VL8RD-I

Max. Speed

8000r/min

Max. RCF

14900×g

Max. Volume

6*2400ml

Refrigerated System

CFC-free compressor

Timing Range

1s~99h59min

Temperature Range

-20℃~+40℃

Speed Accuracy

±20rpm

Temperature Accuracy

±1℃

Noise

＜58dB

Rated Power

7000W

Power Supply

AC220V, 50Hz(Standard); AC110V, 60Hz(Optional)

Outer Dimension(L*W*H)

960*845*970mm

Package Size(L*W*H)

Main instrument: 1120*930*1350mm;

Rotor: 778*778*470mm

Net Weight

515kg

Gross Weight

Main instrument: 600kg(220V), 610kg(110V); Rotor: 67kg

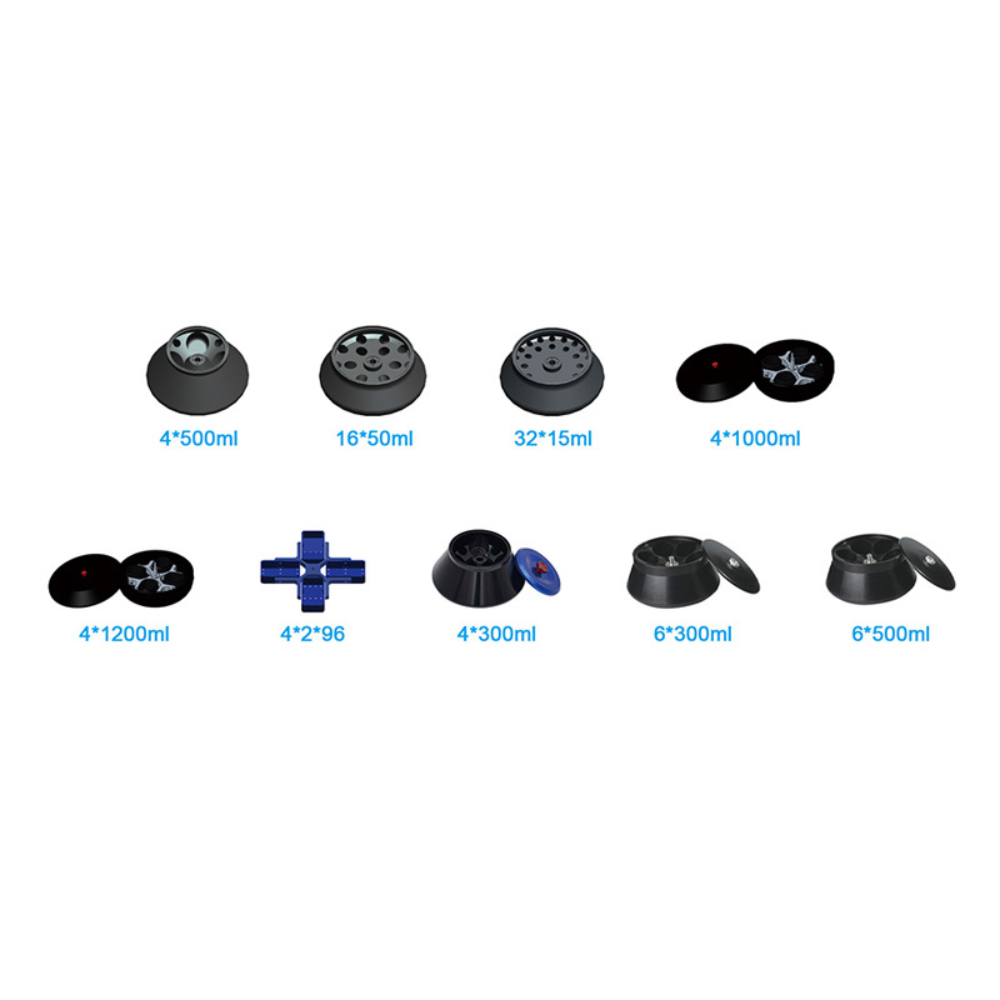

Rotor:

NO.

Rotor

Max. Capacity

Max. Speed(rpm)

Max. RCF(×g)

NO.81001

Angle Rotor

6*1000ml

8000

14900

NO.81002

Swing Rotor

6*2400ml

4000

5330

Adapter

24*200ml or 12*400/500ml Blood bag

NO.81003

Swing Rotor

6*2*1000ml

4000

5800
