Application:
Differential thermal analysis(DTA) is a technique that measures the temperature difference between a substance and a reference material under programmed temperature control. A DTA curve describes the relationship between the temperature(ΔT) of the sample and reference material as a function of temperature or time.
In a DTA experiment, changes in sample temperature are caused by endothermic or exothermic effects of phase transitions or reactions. Examples include phase transitions, melting, crystal structure changes, boiling, sublimation, evaporation, dehydrogenation, fracture or decomposition reactions, oxidation or reduction reactions, lattice structure disruption, and other chemical reactions.
$0.00

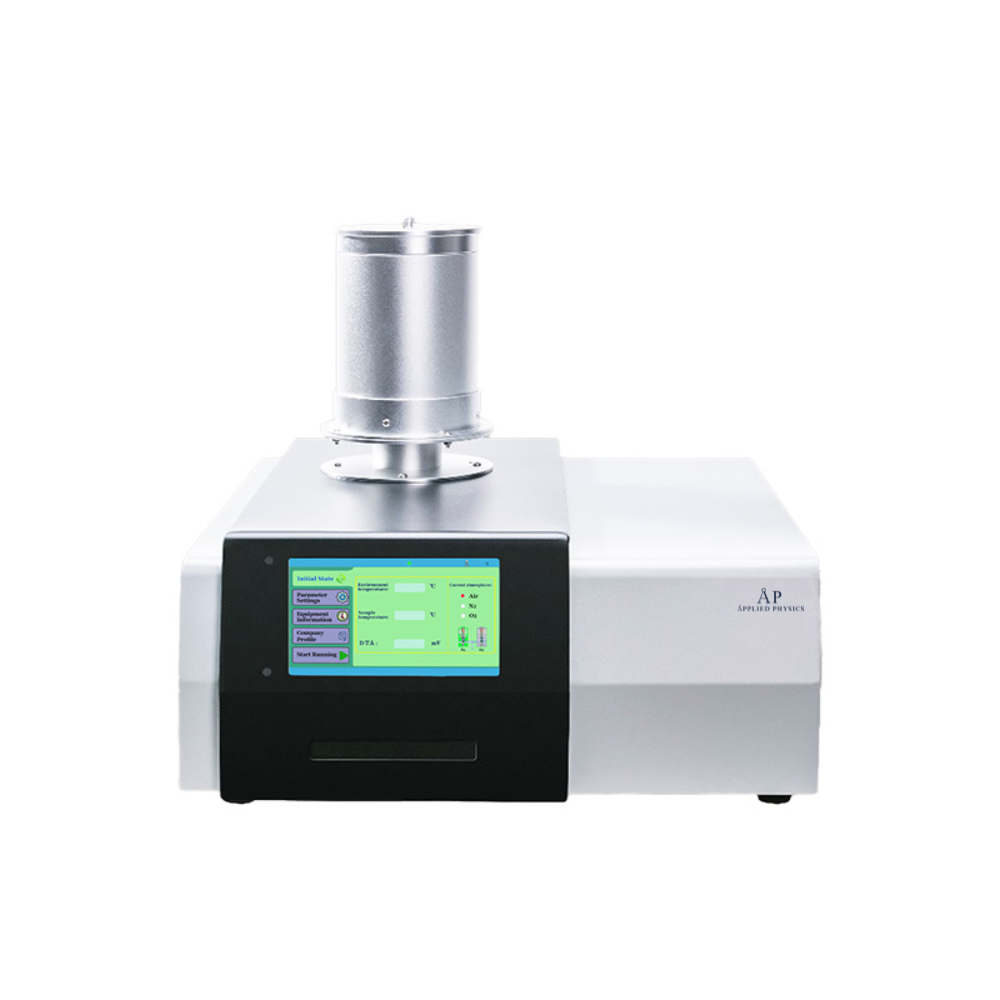

Differential Thermal Analyzer BK-DTA3320A
Features:
1. USB bidirectional communication makes operation more convenient.
2. A 7-inch full-color LCD touch screen provides a user-friendly interface.
3. A nickel-chromium alloy sensor is highly resistant to high temperatures, corrosion, and oxidation.
4. A wide temperature range meets the testing needs of various materials.
5. Supporting analysis software enables real-time acquisition of measurement patterns and online analysis.
Technical Parameters:
Model
BK-DTA3320A
Temperature Range
RT~1200°C
Temperature Resolution
0.01°C
Temperature Accuracy
±0.1°C
Temperature Repeatability
±1.5°C
Measuring Range
0 to ±2000μV
DTA Accuracy
0.01μV
Heating Rate
0.1~100°C/min
Atmosphere Control
Automatic switching of internal programs
Data Interface
Standard USB interface with included data cable and operating software
Power Supply
Standard: AC220V, 50/60Hz; Optional: AC110V, 50/60Hz
External Size(L*W*H)
512*460*400mm
Net Weight
21.2kg
Packing Size(L*W*H)
660*590*500mm
Gross Weight
37.5kg
:
| Model | BK-DTA3320A |
|---|
