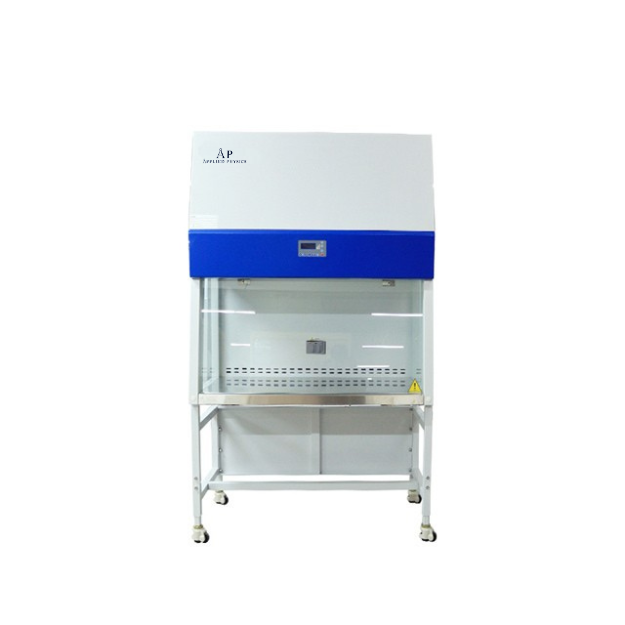

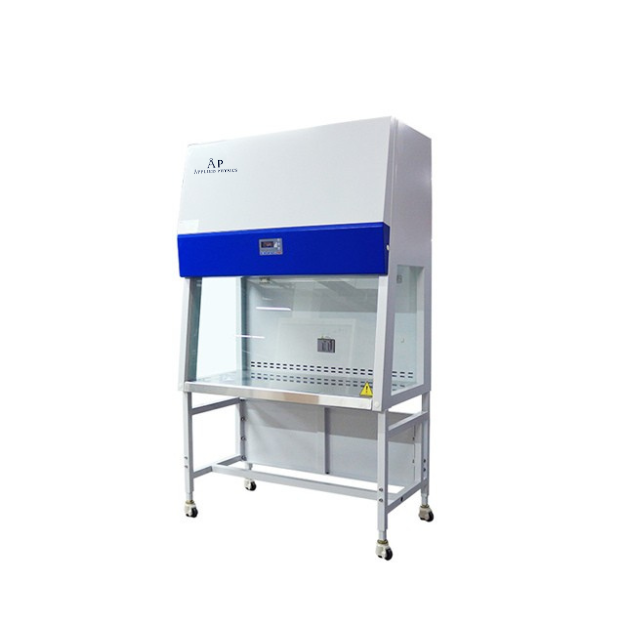

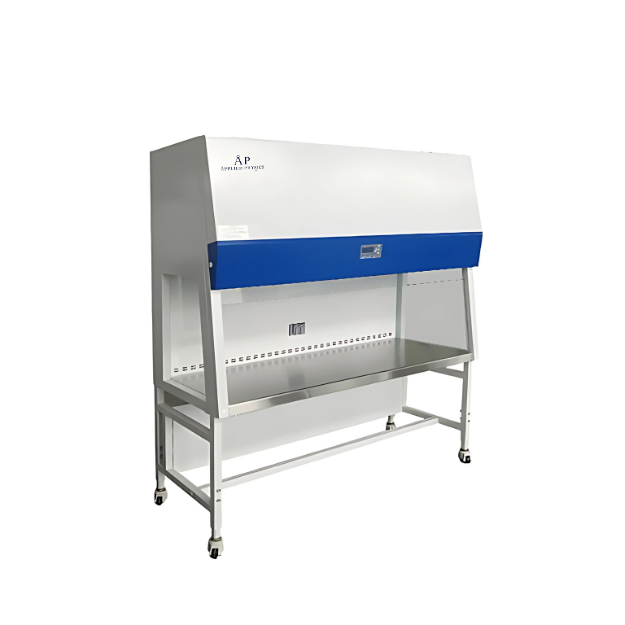

The ETL Certified Vertical Laminar Flow Cabinet is a highly efficient, contamination-free workspace designed to protect samples and products from particulates in laboratory environments.
Features:
1. …
$0.00
The ETL Certified Vertical Laminar Flow Cabinet is a highly efficient, contamination-free workspace designed to protect samples and products from particulates in laboratory environments.
Features:
1. ETL certified, satisfy north american market.
2. With memory function in case of power-failure.
3. Audio and visual alarm(Abnormal airflow velocity).
4. Interlock function: UV lamp and blower, LED lamp.
Technical Parameters:
| Model | BBS-V800 | BBS-V1100 | BBS-V1300 | BBS-V1500 | BBS-V1800 |
| External Size(W*D*H) | 800*700*(2090~2340)mm | 1100*700*(2090~2340)mm | 1300*700*(2090~2340)mm | 1500*700*(2090~2340)mm | 1800*700*(2090~2340)mm |
| Internal Size(W*D*H) | 700*575*625mm | 1000*575*625mm | 1200*575*625mm | 1400*575*625mm | 1700*575*625mm |
| Work Surface Height | 760~1010mm | ||||
| Max Opening | 480mm | ||||
| Display | LCD display | ||||
| Airflow Velocity | 80~99fpm | ||||
| Material | Working Area: 304 stainless Steel | ||||
| Main Body: Cold-rolled steel with anti-bacteria powder coating | |||||
| Front Window: Motorized, 5mm toughened glass, anti-UV | |||||
| Pre-Filter | Polyester fiber | ||||
| HEPA Filter | One, 99.995% efficiency at 0.3μm | ||||
| Noise | ≤68dB(A) | ||||
| Illumination | ≥300lx | ||||
| Waterproof Sockets | One socket(Double type), America standard, Max. Power: 500W | ||||
| Power Supply | 103.5~126.5V, 60Hz,10A | ||||
| Consumption | 900W | 1110W | 1110W | 1110W | 1250W |
| UV Lamp | 20W*1 | 30W*1 | 30W*1 | 40W*1 | 40W*1 |
| LED Lamp | 10W*1 | 14W*1 | 14W*1 | 18W*1 | 22W*1 |
| Standard Accessory | Manually height adjustable base stand, LED lamp, UV lamp, Wind speed sensor, Waterproof socket | ||||
| Package Size （W*D*H） | 945*990*1610mm | 1245*990*1610mn | 1445*990*1610mm | 1645*990*1610mm | 1945*990*1610mm |
| Gross Weight | 190kg | 230kg | 265kg | 280kg | 320kg |
| Model | BBS-V1100, BBS-V1300, BBS-V1500, BBS-V1800, BBS-V800, BBS-V800, BBS-V1100, BBS-V1300, BBS-V1500, BBS-V1800 |
|---|
