The refrigerated and heating circulator is a laboratory instrument for circulating high and low-temperature liquids for precise temperature control. It provides high and low-temperature liquids and a water bath, providing a highly precise, controlled, and uniform temperature source.
It is widely used in bioengineering, defense, food, chemical engineering, metallurgy, chemical analysis, petroleum, and other fields.
$0.00

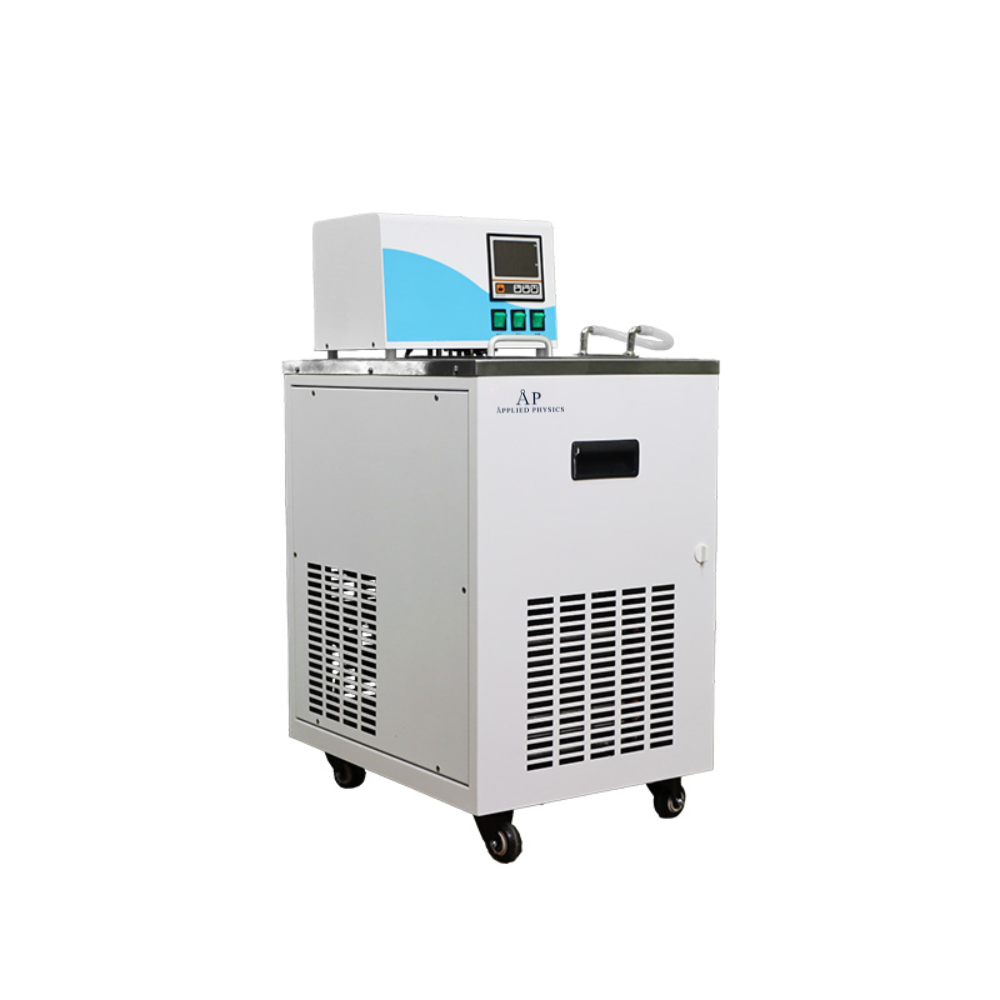

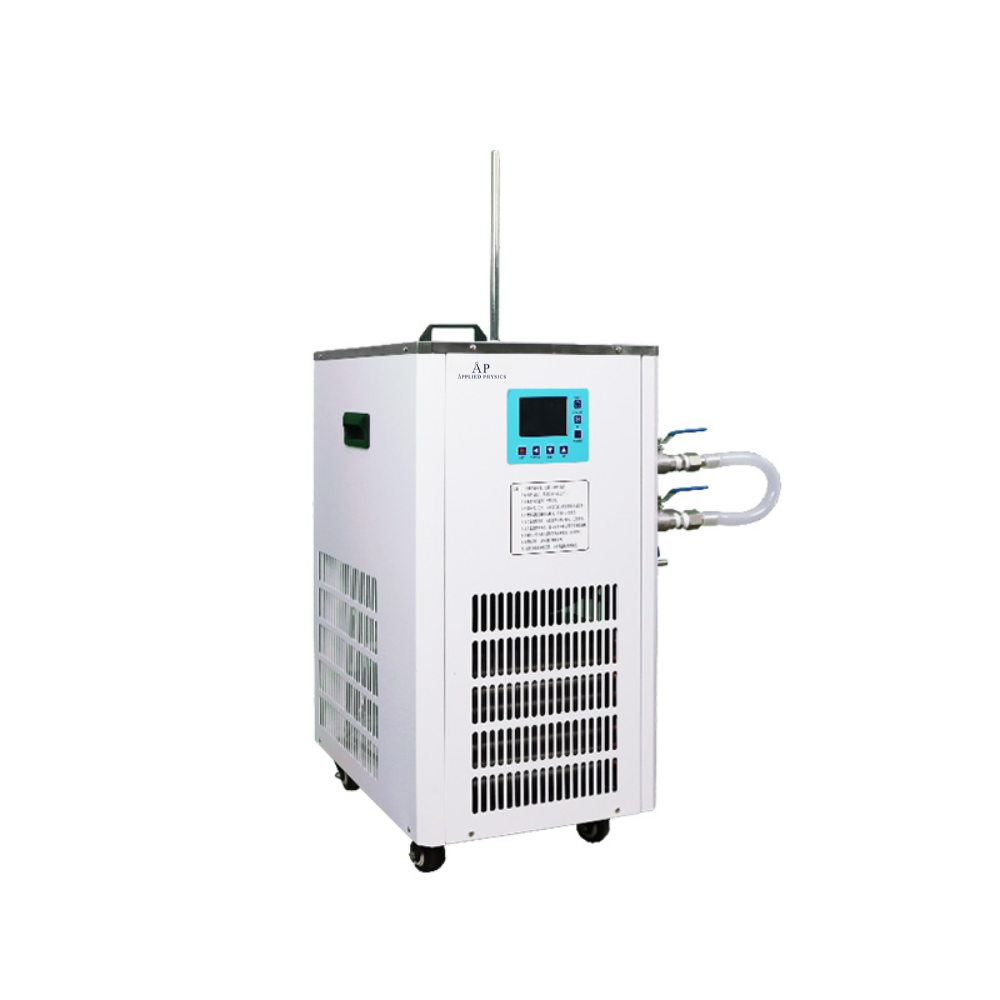

Refrigerated and Heating Circulator
Features:
1. Supports both internal and external circulation.
2. The control interface is simple and easy to use, with upper and lower temperature alarms.
3. Has multiple safety protections.
4. Has the timing function.
5. Has the system self-tuning function.
Technical Parameters:
Model
BJPX-DL5/10
BJPX-DL5/20
BJPX-DL10/10
BJPX-DL10/10-L
BJPX-DL10/20
Temperature Control Range
-10~100℃
-20~100℃
-10~100℃
-10~100℃
-20~100℃
Display Mode
LCD
Temperature Control Accuracy
±0.1℃
Liquid Storage Capacity
5L
10L
Cooling Capacity
319~1328W
263~1328W
884~1894W
280~1100W
813~2733W
Refrigerant
R134a
Control Method
Intelligent digital display PID temperature control
Refrigerant Cooling Method
Air cooling
Insulation Material
Rubber and plastic insulation pipe
Safety Protection
Leakage, overload, delay, overcurrent
Opening Size
φ190mm
φ200mm
160*120mm
φ200mm
Liquid Storage Tank
φ220*180mm
φ250*250mm
280*200*180mm
φ250*250mm
Circulation Power
40W
Flow Rate
20L/min
8L/min
20L/min
Maximum Lift
4~6m
2.4m
4~6m
Power Supply
Standard: AC220V, 50/60Hz; Optional: AC110V, 50/60Hz
Product Size(W*D*H)
360*520*760mm
360*520*720mm
360*400*850mm
360*520*720mm
Net Weight
38kg
45kg
Packing Size(W*D*H)
660*860*1150mm
660*860*1150mm
420*530*870mm
660*860*1150mm
Gross Weight
48kg
50kg
| Model | BJPX-DL10/10, BJPX-DL10/10-L, BJPX-DL10/20, BJPX-DL5/10, BJPX-DL5/20 |
|---|
