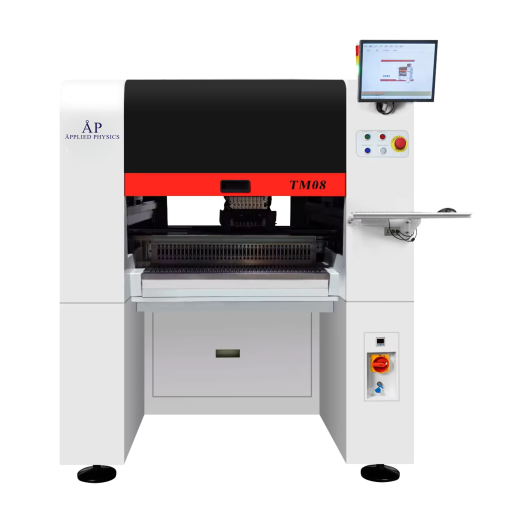

TM08 Manufacturer Electronics Production Machinery PCB Exposure Pick and Place Motherboard Machine

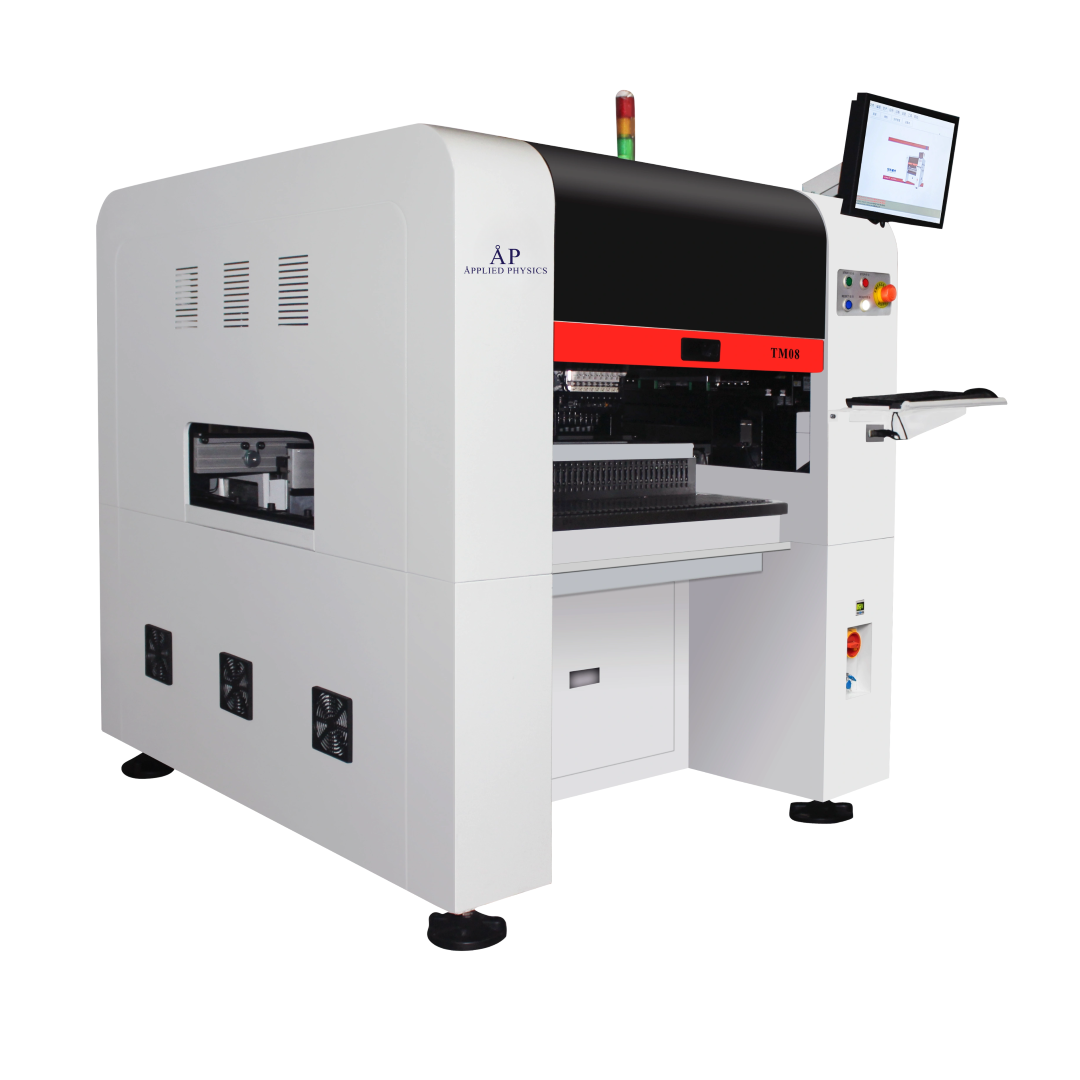

TM08 Manufacturer Electronics Production Machinery PCB Exposure Pick and Place Motherboard Machine - Image 2
TM08 Manufacturer Electronics Production Machinery PCB Exposure Pick and Place Motherboard Machine - Image 3
TM08 Manufacturer Electronics Production Machinery PCB Exposure Pick and Place Motherboard Machine - Image 4
TM08 Manufacturer Electronics Production Machinery PCB Exposure Pick and Place Motherboard Machine - Image 5

TM08 Manufacturer Electronics Production Machinery PCB Exposure Pick and Place Motherboard Machine

Category:

For manufacturers seeking a high-speed, high-precision, and exceptionally stable pick-and-place solution, the Applied Physics USA TM08 is the definitive choice. This machine delivers superior cost-effectiveness and is the cornerstone of a state-of-the-art SMT production line tailored to your company's needs.

The TM08 is engineered with several key advantages to ensure a stable, intelligent, and efficient SMT production process.

Key Advantages:

  • Process Capability (CPK) Support: The TM08 supports CPK, a critical factor for ensuring your SMT production process remains stable and operates with the highest degree of precision.
  • Automatic Nozzle Changer (ANC): With a 31-position nozzle library, the machine intelligently and automatically allocates the correct nozzle for each component, boosting the intelligence and efficiency of your production line.

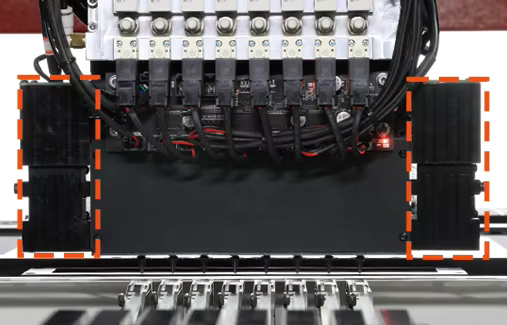

  • High-Precision Universal Mounting Head: A single, highly stable mounting head can handle a wide variety of components, providing versatility and eliminating the need for head changes.
  • Robust Cast Iron Structure: The foundation of the TM08 is a solid cast iron base, ensuring smooth, vibration-free operation even at high speeds.
  • Dual Servo Motor Drive: The Y-axis is driven by dual Panasonic A6 servo motors, guaranteeing mounting accuracy and eliminating the wear associated with single-motor designs.

TM08 Technical Specifications

Feature  Specification
Dimensions  1280mm(L) × 1580mm(W) × 1500mm(H)
Weight  1450kg
Power Supply  AC220V (50Hz, single phase), 3.5kW
Air Supply  0.5MPa ~ 0.7MPa
Vacuum Generation  Built-in vacuum pump
Mounting Head Quantity  8
Mounting Speed  35,000 CPH (optimal)
Mounting Accuracy  (XY) ±0.035mm CPK≥1.0
Component Height  ≤12mm
Component Type  01005/0201/0402/0603～5050/SOT/SOP/QFP/QFN/BGA, etc. (resistor/capacitor/diode/triode/LED/IC, etc.)
PCB Thickness  0.6mm ~ 3.5mm
PCB Size  450mm(L) × 350mm(W) (standard); 1200mm(L) × 350mm(W) (optional)
PCB Conveying  3-section-rail automatic conveying, PCB support device
Nozzle Change  Automatic nozzle change (31-hole nozzle library)
Control System  Built-in industrial computer (Windows 7) equipped with monitor, keyboard, and mouse
Drive System  X & Y axis driven by Panasonic A6 servo motors (Y-axis by double motors); adopting flexible S-curve acceleration and deceleration
Transmission System  X & Y axis adopting ground screw and mute linear guide (Y-axis with double screws)
Feeding System  80 NXT 8mm standard feeder stacks (also suitable for IC tray and stick feeder)

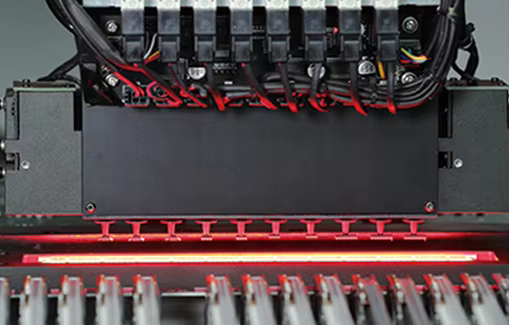

Vision System  Fly camera ×8 (component size applicable: 16mm×16mm); IC camera ×1 (component size applicable: 36mm×36mm); Mark camera ×2



Advanced Feeding System

The TM08's feeding system is designed for efficiency and accuracy.

  • Feeding Method: Utilizes an electric feeder with a feeding accuracy of ±0.03mm and CPK≥1.
  • Feeder Feeding Table: Supports offline feeding preparation to save valuable production time.
  • Vibration Feeder: Compatible with the feeding of tubular components.
  • IC Tray: Supports both TRAY feeding and bulk component feeding.
