Description

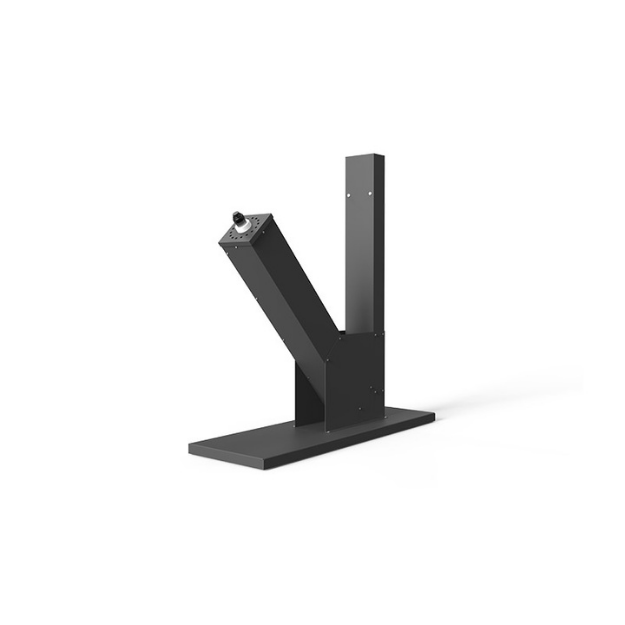

The transparency tester is designed to measure the transparency of gelatin and other translucent materials.
Features:
1. Environmental interference elimination: ensures stable results by minimizing ambient light impact.
2. Standardized glass tube: facilitates easy sample loading and retrieval.
3. Sealed light source system: reduces external environmental effects.
4. User-friendly operation: simplified controls and reliable performance.
5. Safety compliance: powered by a national standard single-phase three-hole AC socket with secure grounding.
Technical Parameters:
|
Model |
BTM-1 |
|
Test Range |
20~500mm |
|
Accuracy |
±5mm |
|
Glass Tube Capacity |
500mL |
|
Operating Temperature |
18~28°C |
|
Storage Temperature |
-10~50°C |
|
Relative Humidity |
20%~80% |
|
Consumption |
100W |
|
Power Supply |
AC220V, 50Hz(Standard); AC220V/110V, 60Hz(Optional) |
|
External Size(W*D*H)mm |
600*200*630 |
|
Package Size(W*D*H)mm |
700*250*750 |
|
Net Weight(kg) |
6 |
|
Gross Weight (kg) |
7 |
