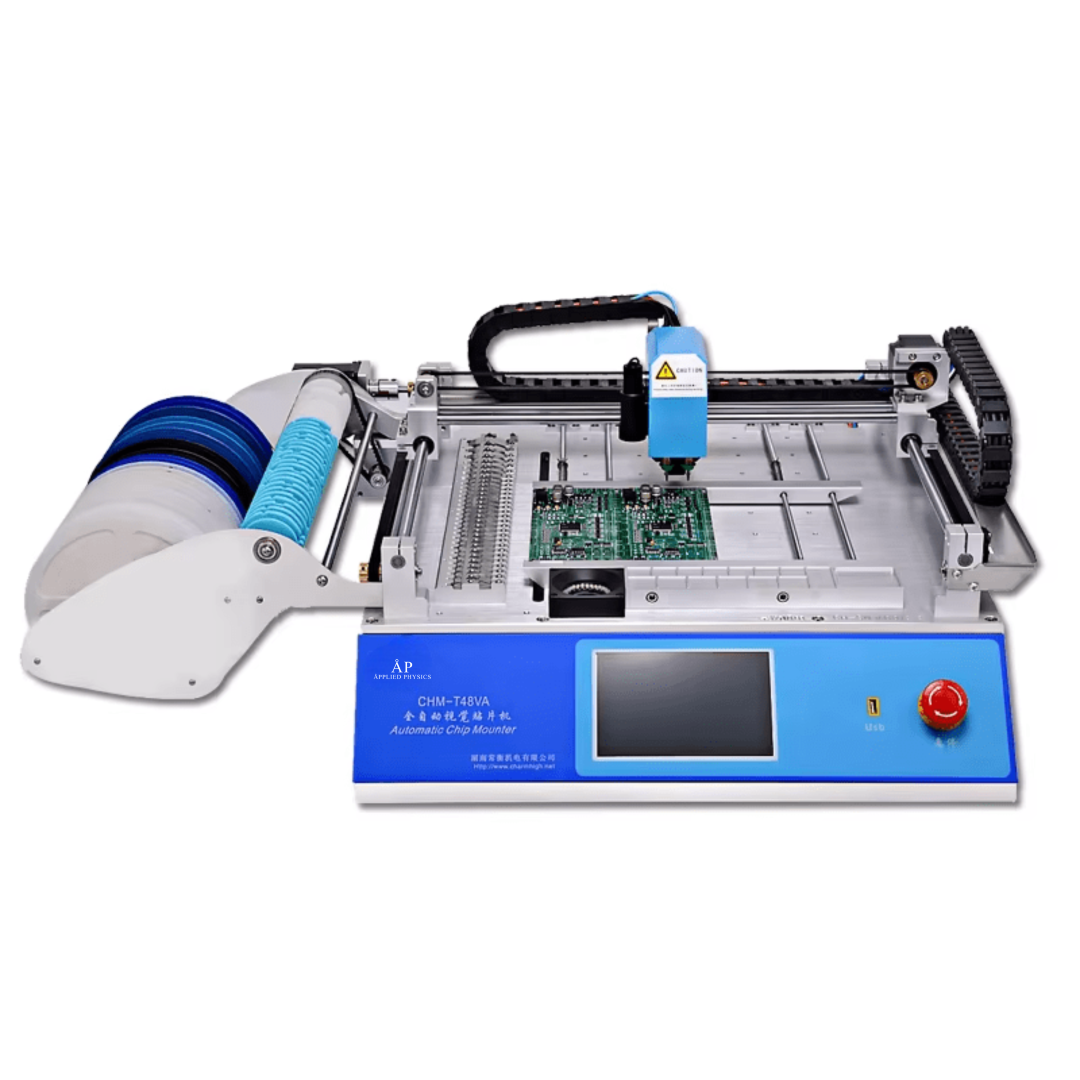

Indian Hot Products AP CHM-T48VA Table Top Pick and Place Machine Camera SMT LED 2 Head
Indian Hot Products AP CHM-T48VA Table Top Pick and Place Machine Camera SMT LED 2 Head - Image 2
Indian Hot Products AP CHM-T48VA Table Top Pick and Place Machine Camera SMT LED 2 Head - Image 3
Indian Hot Products AP CHM-T48VA Table Top Pick and Place Machine Camera SMT LED 2 Head - Image 4
Indian Hot Products AP CHM-T48VA Table Top Pick and Place Machine Camera SMT LED 2 Head - Image 5
Indian Hot Products AP CHM-T48VA Table Top Pick and Place Machine Camera SMT LED 2 Head - Image 6

Indian Hot Products AP CHM-T48VA Table Top Pick and Place Machine Camera SMT LED 2 Head

Category:

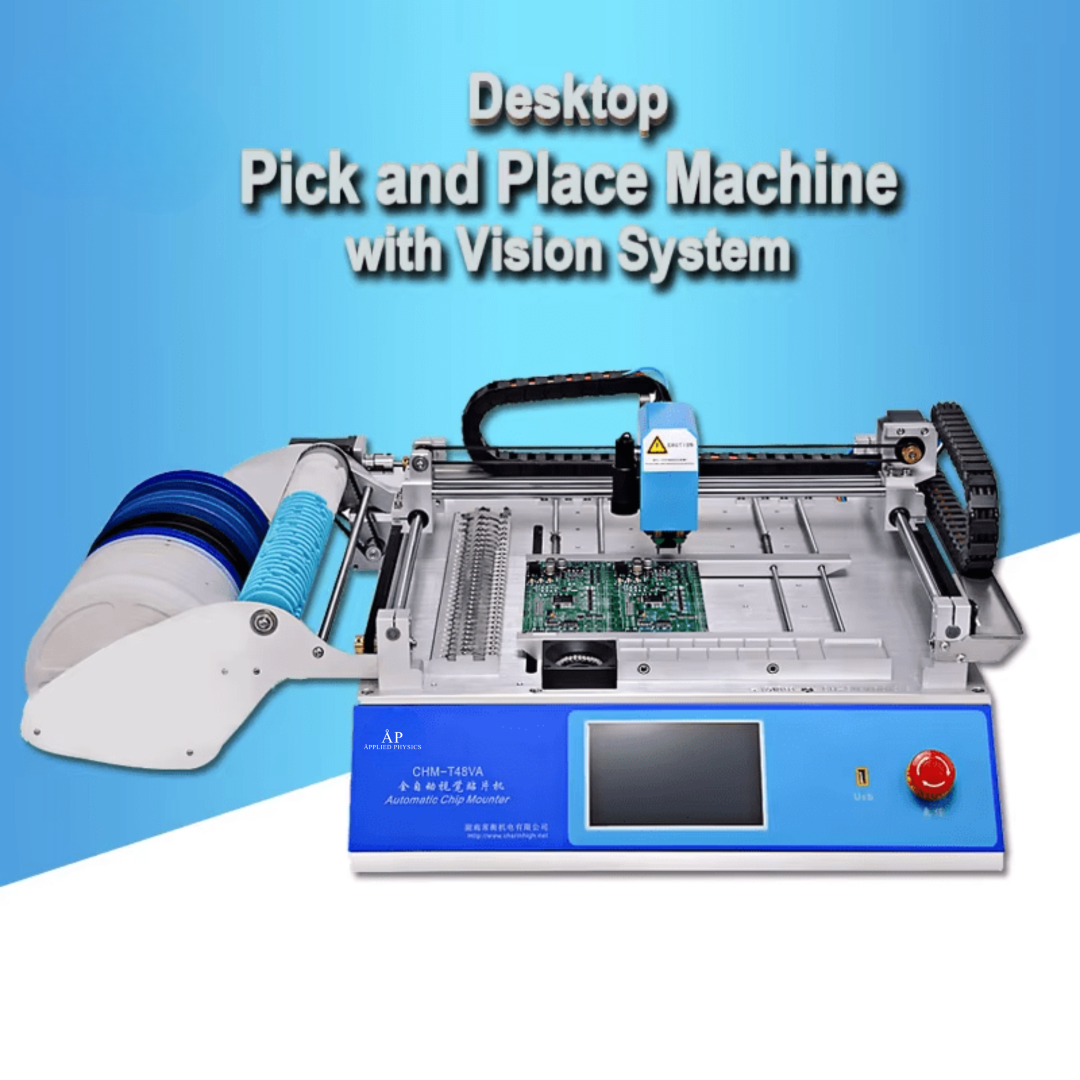

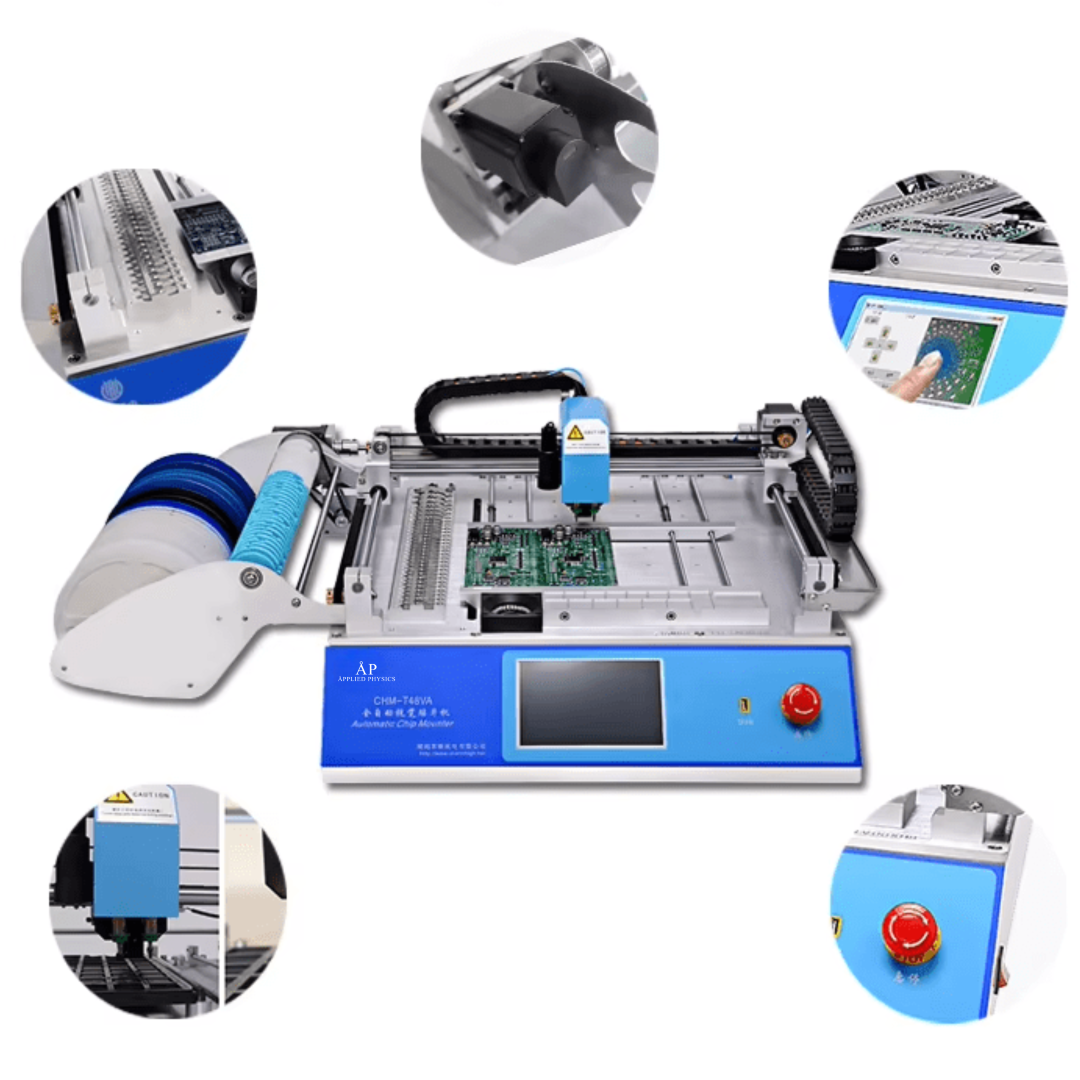

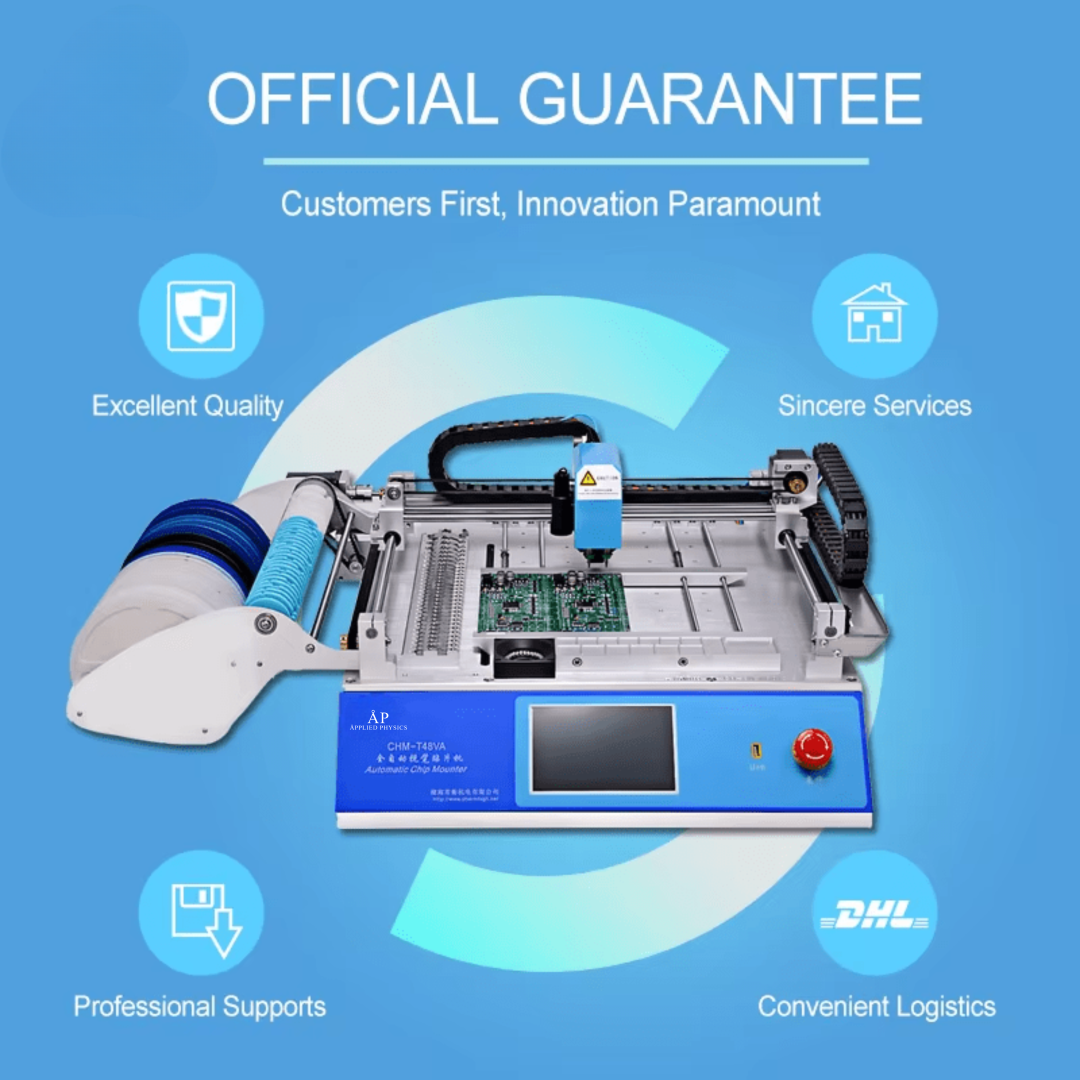

The APS-T48VA Tabletop SMT Pick and Place Machine is a compact, high-precision solution designed for modern electronics assembly. Engineered for flexibility and ease of use, this system is ideal for prototyping, small-batch production, and educational environments. With advanced vision systems, dual placement heads, and a robust built-in control platform, the APS-T48VA delivers reliable performance for a wide range of surface mount technology (SMT) applications.



Key Features & Benefits

  • Dual Placement Heads: Increases throughput and supports simultaneous component handling for improved efficiency.

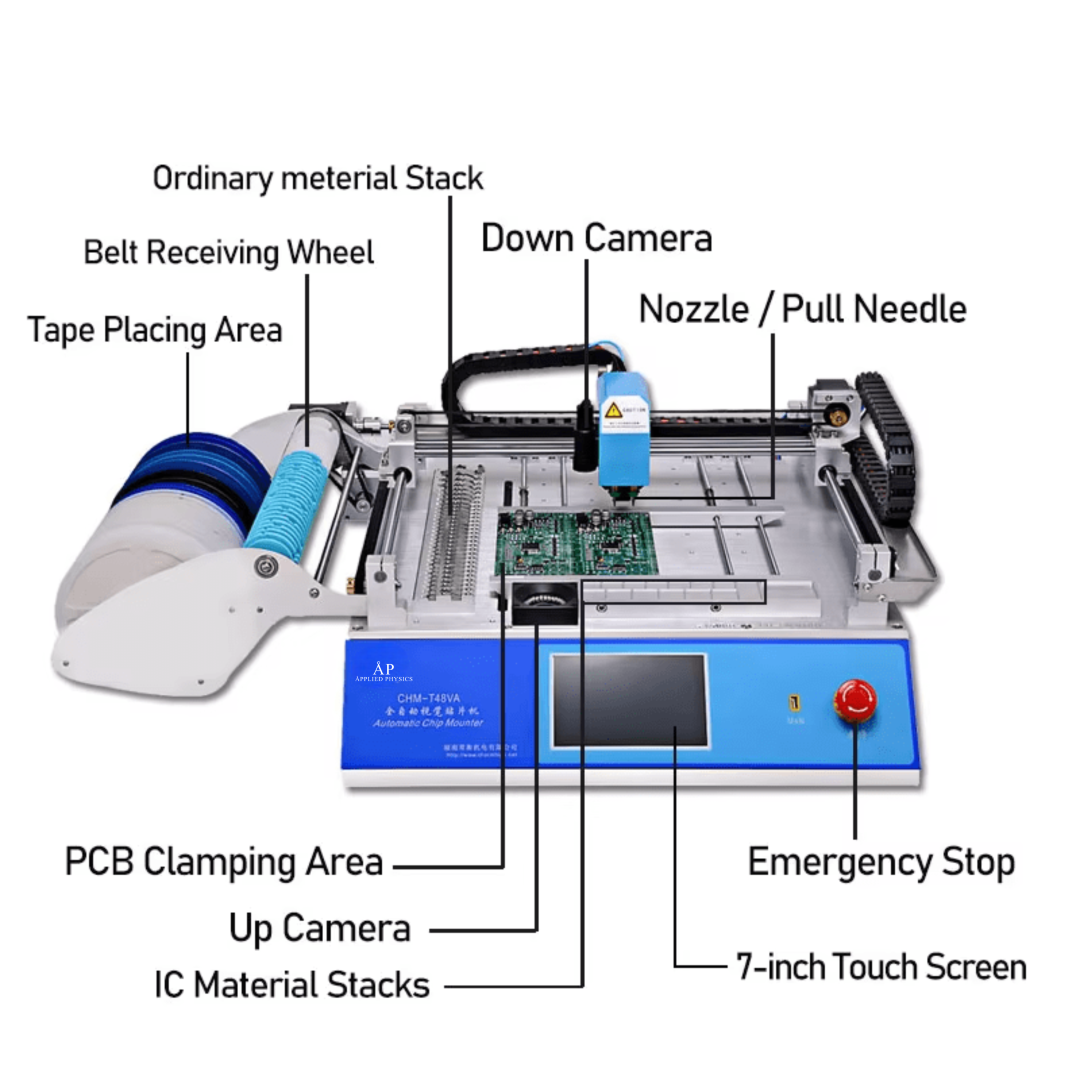

  • Advanced Vision System: Up-looking and down-looking cameras ensure precise component alignment and PCB calibration, supporting components up to 22mm x 22mm.
  • Flexible PCB Support: Accommodates PCB sizes up to 345mm x 360mm, suitable for various board types and assembly processes.
  • No External Air Required: Integrated vacuum pump eliminates the need for external compressed air, simplifying installation and reducing operational costs.
  • User-Friendly Interface: Embedded Linux operating system with a 7-inch touchscreen for intuitive operation and programming.
  • Manual PCB Conveying and Nozzle Change: Streamlined for low- to medium-volume production environments, with easy manual adjustments.
  • Comprehensive Component Compatibility: Supports a wide range of SMDs, including 0402/0603 to 5050, SOT, SOP, QFP, QFN, BGA, and more (resistors, capacitors, diodes, transistors, LEDs, ICs, etc.).
  • Precision Placement: Achieves control accuracy of 0.025mm, ensuring high-quality assembly for fine-pitch and complex components.
  • Customizable Feeder System: 29 tape feeding stacks and 14 general IC stacks, with support for custom IC trays and stick feeders.



Technical Specifications

Specification  Details
Dimensions  940mm (L) × 710mm (W) × 340mm (H)
Weight  39 kg
Power Supply  AC220V (50Hz, single phase) / AC110V (60Hz, single phase); 300W
Air Supply  No external air supply required
Vacuum Generation  Built-in vacuum pump
Mounting Head Quantity  2
Mounting Speed  6000 CPH (optimal, without vision detection); 4000 CPH (with vision)
Control Accuracy  0.025 mm
Component Type  0402/0603–5050, SOT, SOP, QFP, QFN, BGA, etc. (resistor, capacitor, diode, triode, LED, IC, etc.)
PCB Thickness  0.6 mm – 3.5 mm
PCB Size  10mm (L) × 10mm (W) – 345mm (L) × 360mm (W)
PCB Conveying  Manual operation
Nozzle Change  Manual operation
Control System  Built-in computer (embedded Linux OS), 7-inch touchscreen
Drive System  X&Y-axis: Stepping motors with closed-loop encoder control; Z-axis: Reset detection; S-curve acceleration/deceleration; tape puller auto-reset
Transmission System  Synchronous belt + polished rod
Feeding System  29 tape feeding stacks (8mm: 22, 12mm: 4, 16mm: 2, 24mm: 1; customizable), 14 general IC stacks, custom IC trays, stick feeder supported
Vision System  Up-looking camera for component calibration (up to 22mm × 22mm); down-looking camera for PCB calibration via mark point and component positioning

Application Scenarios

  • Prototyping and R&D Labs: Ideal for rapid prototyping and small-batch assembly.
  • Educational Institutions: Perfect for training and research in electronics manufacturing.
  • Low- to Medium-Volume Production: Supports flexible, high-mix assembly environments.
  • LED and Consumer Electronics: Suitable for mounting a wide range of SMDs, including LEDs and ICs.



Why Choose Applied Physics Semiconductor?

  • Proven Expertise: Over a decade of experience in SMT equipment design, manufacturing, and support.
  • Comprehensive Solutions: One-stop SMT solutions, including pick and place machines, stencil printers, reflow ovens, and more.
  • Customer-Centric Service: Dedicated pre-sales, in-sales, and after-sales support to ensure your success.
  • Global Reach, Local Support: Serving North America, India, and global markets with responsive service and technical expertise.



Frequently Asked Questions

Q: What types of components can the APS-T48VA handle?

A: The machine supports a wide range of SMDs, including resistors, capacitors, diodes, transistors, LEDs, ICs, and more, from 0402/0603 up to 5050, SOT, SOP, QFP, QFN, and BGA packages.

Q: What is the maximum PCB size supported?

A: The APS-T48VA supports PCBs up to 345mm (L) × 360mm (W), making it suitable for various board sizes and applications.

Q: Is external compressed air required?

A: No, the machine features a built-in vacuum pump and does not require an external air supply.
