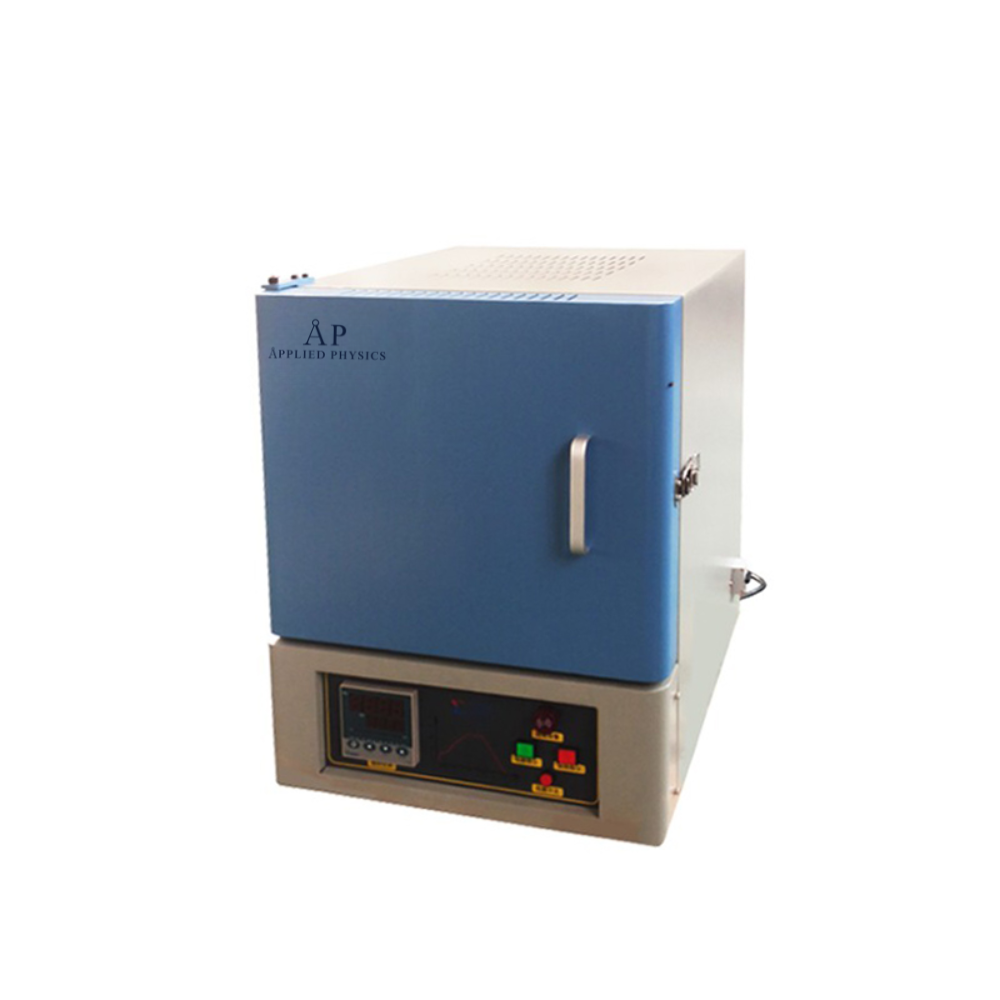

Muffle Furnace MX Series

Description

Muffle Furnace MX Series

Features:

1. TP Series are programmable temperature control.

2. Utilizing vacuum forming technology and a unique thermal insulation design, the furnace shell maintains a low outer surface temperature.

3. Equipped with an over-temperature alarm and built-in parameter password control.

4. Fast heating speed and low energy consumption when the furnace is empty, saving over 50% in energy savings.

5. Display accuracy is ±1°C; the surge temperature is less than 3°C.

6. Multiple safety features ensure excellent safety performance and a long service life.

7. The side-opening door is convenient and easy to use.

8. The power connection is through the air switch.

Technical Parameters:

Model

MX6-10T/TP

MX8-10T/TP

MX16-10T/TP

MX30-10T/TP

MX6-12T/TP

MX8-12T/TP

MX30-12T/TP

Max. Temp.(℃)

1000

1200

Capacity(L)

6

8

16

30

6

8

30

Temp. Accuracy

±1℃

Power(kW)

2.8

3.5

6

10

2.8

3.5

10

Power Supply

Standard: AC220, 50/60Hz; Optional: AC110, 50/60Hz

AC220, 50/60Hz

Standard: AC220, 50/60Hz; Optional: AC380, 50/60Hz

Standard: AC220, 50/60Hz(3-phase); Optional: AC380, 50/60Hz

AC220, 50/60Hz

Standard: AC220, 50/60Hz(3-phase); Optional: AC380, 50/60Hz

Heating Rate

1~30℃/min for TP series

Temp. Uniformity

±6℃

Material

External material: Cold rolled steel carbon steel spraying

Internal material: Ceramic inner chamber

Heating Element

Electric furnace wire

Temp. Control

Intelligent temperature controller

Optional

Accessory

Observation hole; Exhaust chimney; Furnace bottom plate(MX30-12T/TP is standard); Paperless recorder

Functions

Automatically power off once the door is opened; 30 programmable periods(only for T Type)

Internal Size(W*D*H)mm

180*230*150

200*300*120

250*400*160

300*500*200

180*230*150

200*300*120

300*500*200

External Size(W*D*H)mm

500*510*640

500*580*610

550*690*660

600*780*710

500*510*640

500*580*610

600*780*710

Packing Size(W*D*H)mm

630*700*870

630*800*870

680*910*870

870*1110*990

630*700*870

630*800*870

870*1110*990

Gross Weight(kg)

82

84

111

146

82

84

146

Model

MX8-13T/TP

MX10-13T/TP

MX6-16TP

MX11-16TP

MX6-17TP

MX11-17TP

Max. Temp.(°C)

1300

1600

1700

Capacity(L)

8

10

6

11

6

11

Temp. Accuracy

±1℃

Power(kW)

4

8

12

6

8

Power Supply

AC220, 50/60Hz

Standard: AC220, 50/60Hz; Optional: AC380, 50/60Hz(2-phase)

AC380, 50/60Hz(2-phase)

Standard: AC220, 50/60Hz; Optional: AC380, 50/60Hz(2-phase)

AC380, 50/60Hz(2-phase)

Heating Rate

1~30°C/min for TP series

1~15°C

Material

External material: Cold rolled steel carbon steel spraying

Internal material: Ceramic inner chamber

Heating Element

Silicon carbon rod S type thermocouple

Silicon molybdenum rod type B thermocouple

Temp. Control

Intelligent temperature controller

Optional

Accessory

Observation hole; Exhaust chimney; Furnace bottom plate; Paperless recorder

Exhaust chimney; Paperless recorder

Functions

Automatically power off once the door is opened; 30 programmable periods(only for T Type)

Automatically power off once the door is opened

Internal Size(W*D*H)mm

200*300*120

200*300*180

150*300*120

200*300*180

150*300*120

200*300*180

External Size(W*D*H)mm

580*630*700

580*630*750

750*810*1360

1000*900*1600

750*810*1360

1000*900*1600

Package Size(W*D*H)mm

710*910*920

770*860*1050

920*800*1150

1200*1100*1800

800*920*1150

1200*1100*1800

Gross Weight(kg)

119

130

237

350

237

350
