ELGA PURELAB Maxima UV Faults: Warning Signs and Service Guidance

UV-equipped ELGA PURELAB Maxima systems use ultraviolet treatment as one part of water purification. The fitted lamp, treatment sequence and monitoring features depend on the model and configuration.

The electronic ballast supplies power to the UV lamp. A fault may affect UV treatment, but lamp appearance, an alarm or a water-quality result alone cannot identify a failed ballast. Do not view an exposed operating UV lamp.

The signs below call for investigation, not automatic ballast replacement. Confirm the exact Maxima model, serial number and approved replacement part before ordering; a listing described as MAXIMA/L does not establish compatibility with every Maxima system.

How the UV System Works in ELGA PURELAB Maxima

ELGA’s UV guidance distinguishes microbial control at about 254 nm from organic photo-oxidation at 185 nm, followed by ion exchange to remove the resulting ionic products. Do not assume every Maxima uses a 254 nm-only final stage. Confirm the fitted UV assembly and whether the listed Maxima ballast matches it.

A suitable ballast provides the lamp’s starting and operating electrical conditions. Its compatibility and condition must be assessed together with the lamp and the rest of the UV assembly using the applicable manufacturer instructions.

UV Symptoms That Need Qualified Assessment

Use only the normal display, approved indicators and operator checks described for the exact unit. Do not remove covers, bypass interlocks or operate an exposed UV lamp to investigate these symptoms.

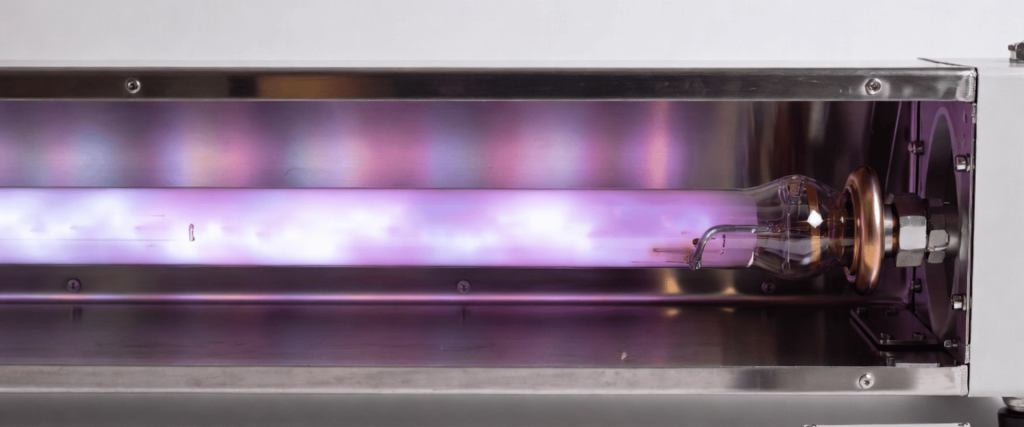

1) UV lamp fails to ignite or starts inconsistently

If an approved indicator or a recorded fault suggests that the lamp is not starting normally, note the symptoms and request service assessment. Do not expose the lamp to check for flicker or light output.

2) The system shows UV-related alarms or error messages

Record the exact message and follow the manual for the fitted controller. Alarm names and available measurements vary; a UV-related fault does not by itself prove that the ballast has failed.

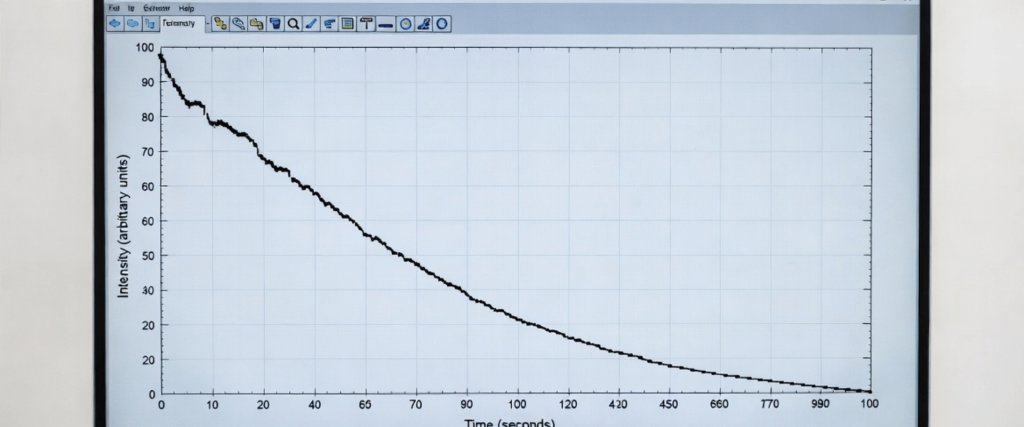

3) Low UV output reading, if the unit has an output monitor

Where an output monitor is fitted, use the manufacturer’s limits and test procedure. A low reading needs qualified assessment of the applicable lamp, UV assembly, power supply and monitoring components; a newer lamp does not rule out other causes.

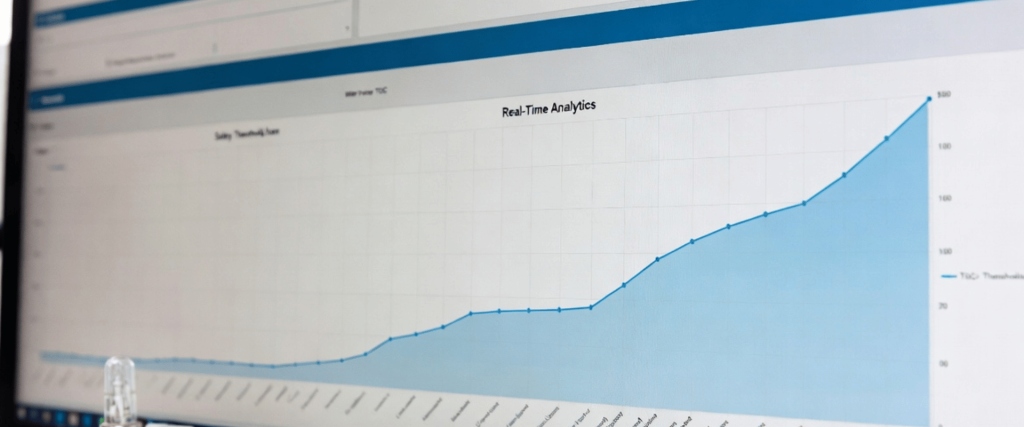

4) Water quality parameters begin to drift

Unexpected microbial or TOC results require investigation of sampling, feedwater, treatment stages and the distribution path as applicable. UV performance may be one factor. Follow the laboratory’s water-quality procedure and restrict affected use until acceptability is established.

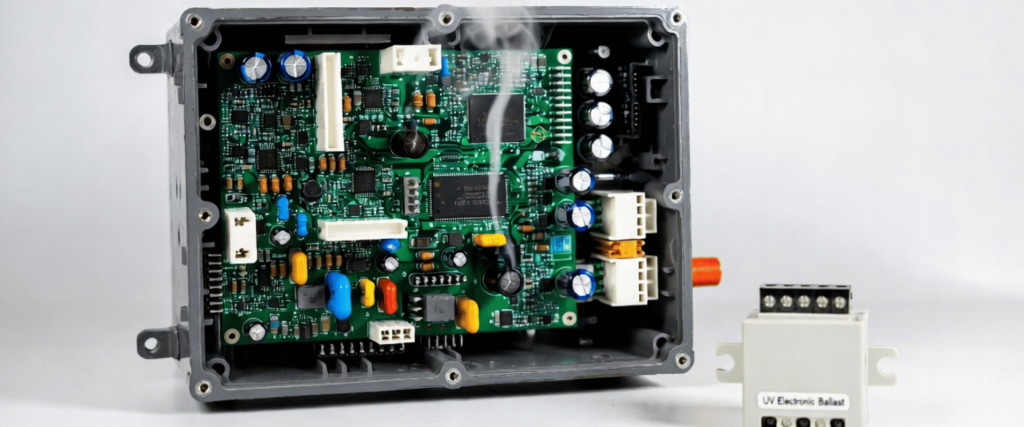

5) Burning smell or a new, abnormal sound

A burning smell, smoke or abnormal noise warrants prompt safety assessment. Stop use and isolate the equipment only if safe under the facility’s procedure; follow emergency arrangements when needed. Do not open the housing or restart the system to investigate. These signs do not identify which component has failed.

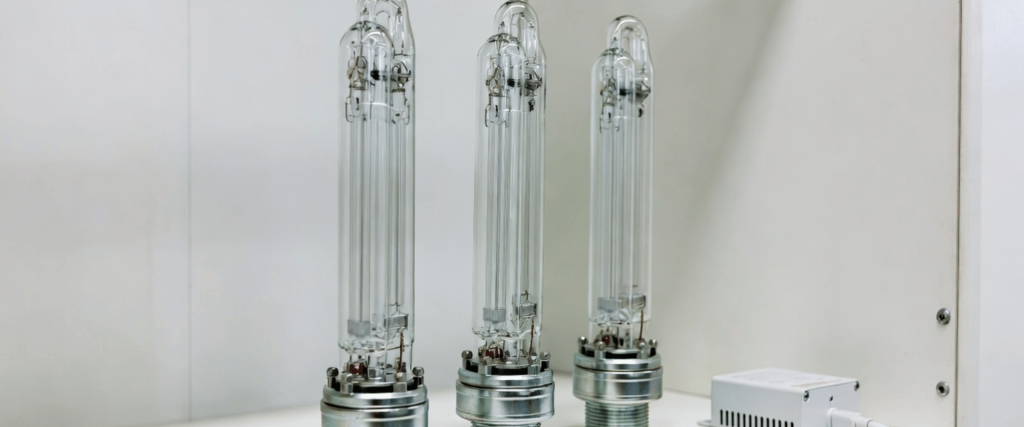

6) Frequent lamp replacements without improvement

If UV lamps still underperform after replacement, have qualified service personnel investigate using the exact model’s instructions. Confirm the correct lamp and installation; repeated problems do not establish that the ballast is the cause.

Symptom Comparison Table

Symptom	Possible issue to investigate	Recommended First Action
UV lamp will not turn on	Lamp, electrical supply, connection or control fault; diagnosis required	Record the fault and contact qualified service. Do not open covers or substitute a test ballast.
Low UV intensity alarm	Low reported output, if the model has this monitor; cause unconfirmed	Follow the exact alarm procedure and request service assessment. Do not measure lamp current as an operator check.
Lamp flickers or cycles on/off	Lamp or electrical/control issue; cause unconfirmed	Report the observed status through approved indicators. Do not expose the lamp or replace a board on this symptom alone.
Rising bacteria in final product water	Possible contamination or treatment/sampling problem	Restrict affected use under the water-quality SOP and investigate the complete applicable water path.
Burning smell or unusual noise	Possible electrical or other equipment fault	Stop use; isolate only if safe under facility procedures and obtain qualified assistance. Do not restart to test.
Error code related to UV or lamp	Meaning depends on the model and exact code	Record the code and follow the exact model manual or ELGA service advice.

Why Prompt Investigation Matters

An unresolved UV fault may affect the water’s suitability for its intended application. Assess the system against the laboratory’s approved water-quality requirements; an alarm alone does not establish either compliance or non-compliance.

Timely diagnosis and appropriate corrective work can limit disruption. Replacing a ballast alone does not demonstrate that the water is suitable for use; complete the required post-service checks and quality assessment.

Safe Service Handoff and Return-to-Use Checks

Stop affected use as required by the facility’s safety and water-quality procedures. If an electrical hazard is suspected, isolate the equipment only when safe to do so.
Record the model, serial number, exact alarm messages and relevant service history without opening electrical or UV enclosures.
Obtain the operating and service instructions for the exact model. Limit operator checks to those the manufacturer authorizes.
Have qualified service personnel diagnose the fault and confirm the manufacturer-approved replacement part. Do not infer fit or electrical compatibility from the MAXIMA/L label alone.
Internal electrical testing, wiring and component replacement require qualified personnel, the applicable service procedure and appropriate electrical safe-work controls, including isolation and stored-energy precautions.
After service, complete the manufacturer-specified functional checks and the facility’s required water-quality assessment before authorized return to use.
Document the repair and the components actually changed. Follow the applicable instructions for any service-counter reset; replacing a ballast does not renew the UV lamp.

Contact ELGA technical service for the correct legacy documentation and parts. Do not use a general article, wiring photograph or another PURELAB model’s manual as a Maxima repair procedure. Energized measurements and internal UV checks are not routine operator troubleshooting.

Conclusion

The UV ballast is one component of a UV-equipped Maxima system. Its condition must be assessed in the context of the fitted lamp, controls and water-treatment configuration.

Record abnormal operating indicators, alarms and water-quality trends, and arrange prompt assessment. These observations help identify a problem but cannot guarantee early diagnosis or prove that the ballast needs replacement.

Use the correct service instructions and approved parts, keep maintenance records and verify water quality after corrective work. Confirm MAXIMA/L compatibility before purchase.

Frequently Asked Questions (FAQs)

1. How long does an ELGA PURELAB Maxima UV ballast typically last?

No model-specific evidence reviewed here establishes a universal 3–5-year ballast life or replacement interval. Follow the exact unit’s service guidance and qualified diagnosis. A UV lamp’s replacement schedule is separate from ballast service life.

2. Can I replace just the UV lamp instead of the ballast?

A lamp-only replacement may be appropriate when assessment and the manufacturer’s instructions support it. A new lamp that performs poorly does not by itself establish a ballast fault. Confirm the correct lamp and arrange qualified diagnosis before replacing further parts.

3. Is the MAXIMA/L ballast still available?

Check current availability and exact compatibility with ELGA or an authorized supplier using the model and serial number. ELGA’s parts catalog distinguishes UV ballast applications, but it does not establish that a part sold as MAXIMA/L fits every Maxima variant.

4. Should I replace the ballast and lamp at the same time?

Not automatically. Replace the components indicated by the manufacturer’s schedule and service assessment. Record what was changed, and do not treat ballast replacement as a new lamp or reset lamp-age records unless the applicable instructions and actual work justify it.

5. What happens if I continue using a failing ballast?

An unresolved fault may affect UV treatment or indicate an electrical hazard. Follow the facility’s safety and water-quality procedures, restrict affected use as needed and obtain qualified assessment. Do not assume that a glowing lamp or a cleared alarm proves acceptable water quality.
