With advanced control features, precise temperature regulation, and robust construction, this freeze dryer ensures high-quality drying outcomes and efficient process scaling from the lab to production levels.
$0.00

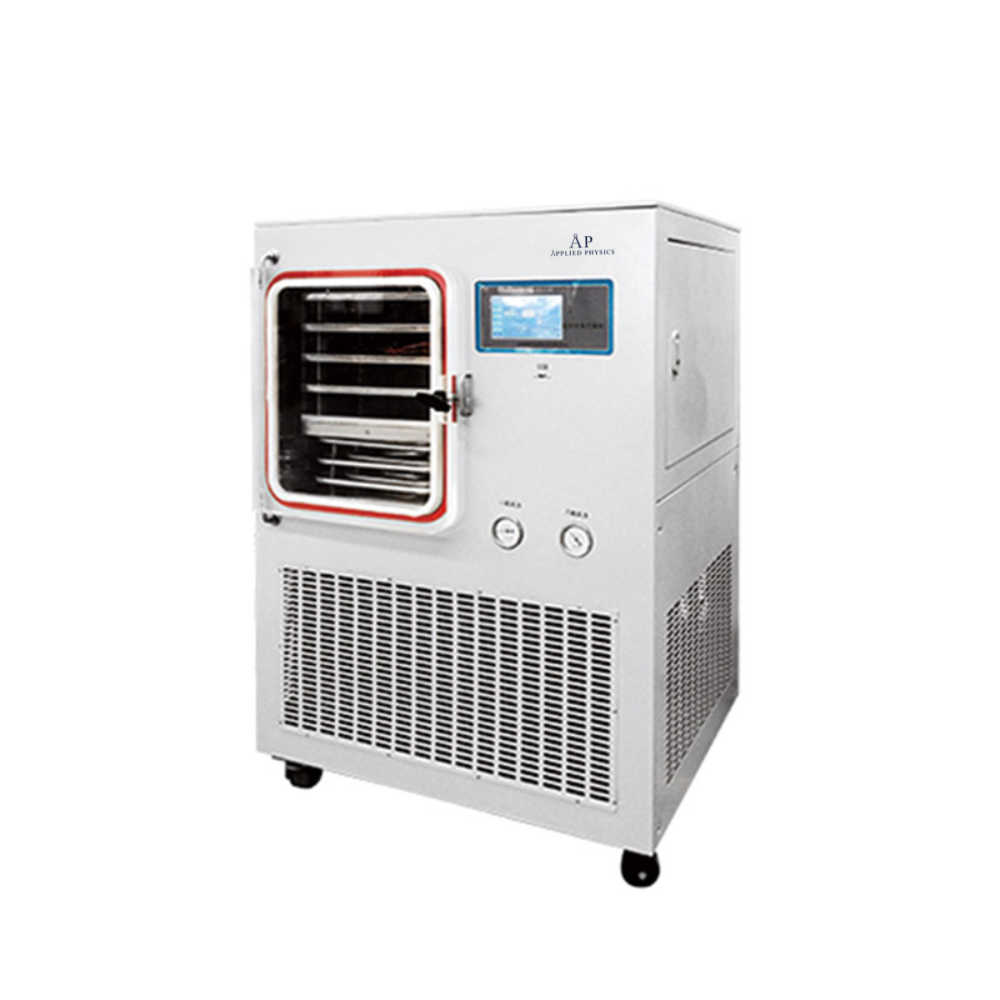

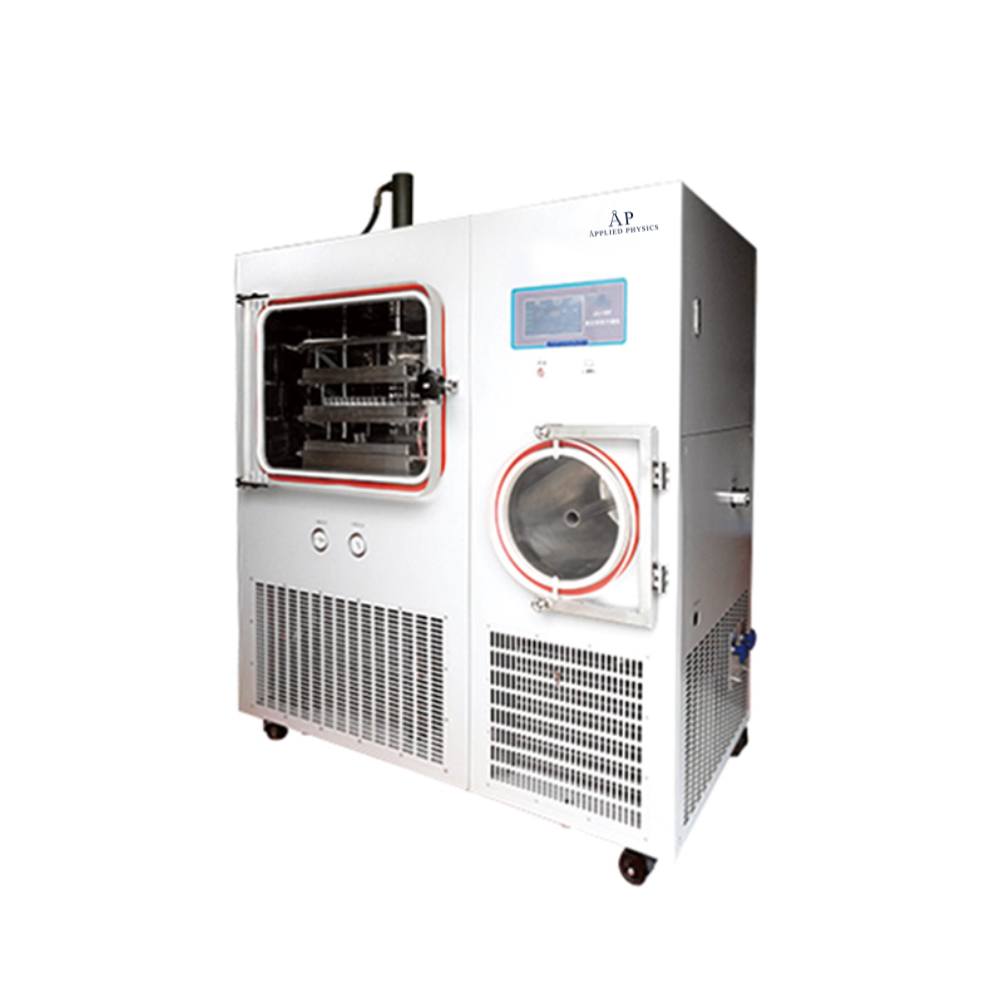

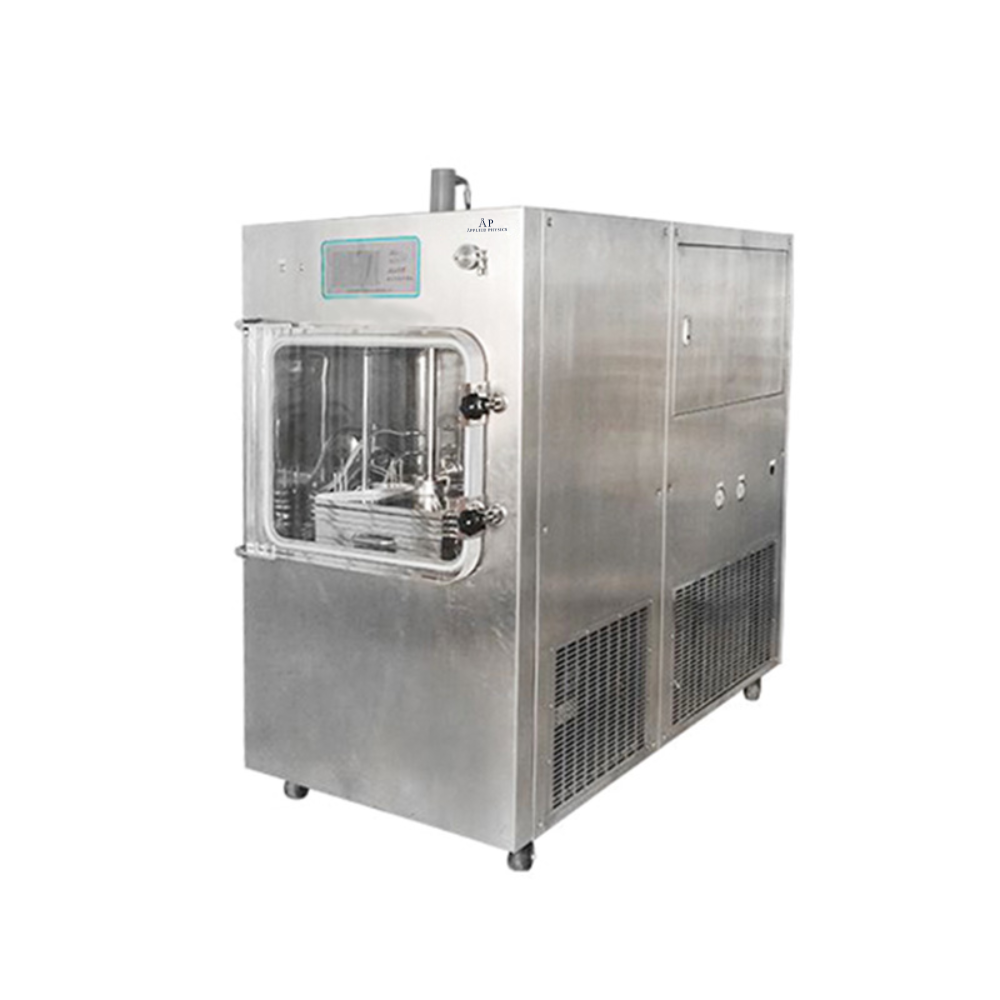

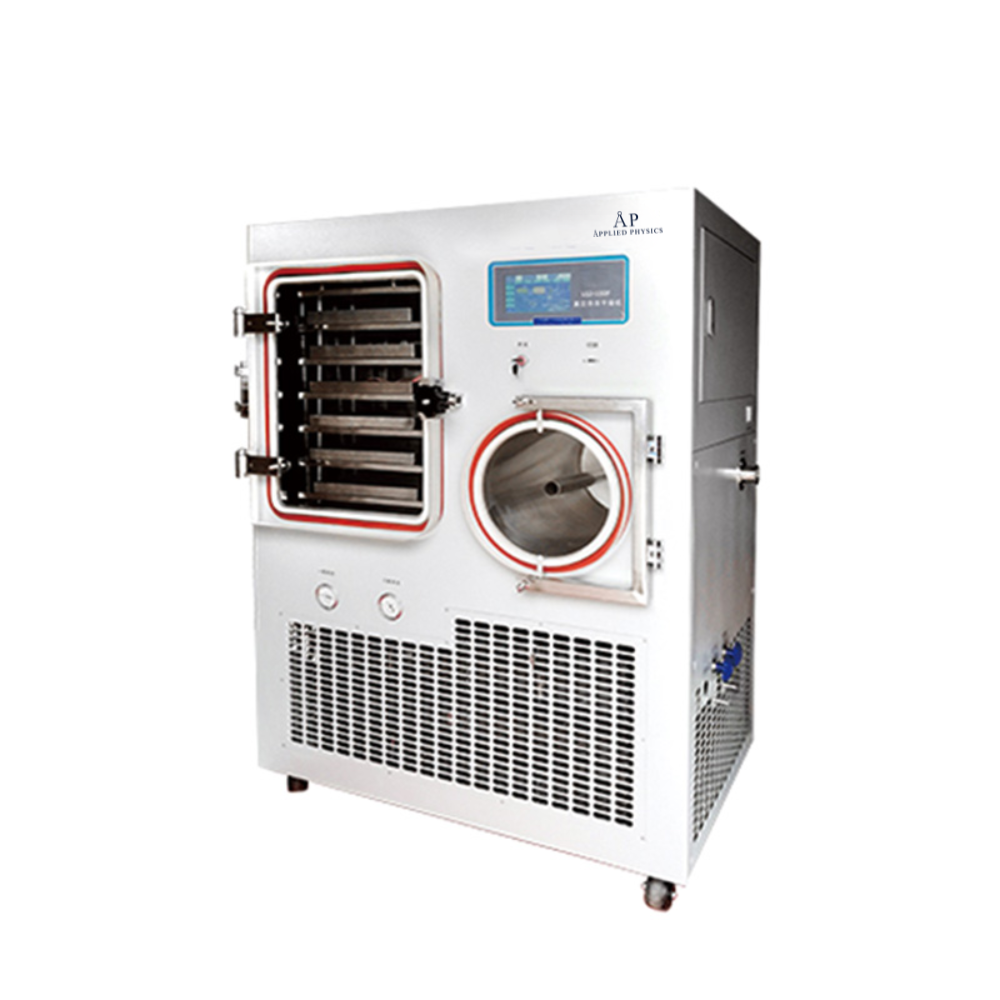

Pilot Freeze Dryer Large Freeze Dryer
Technical Parameters:
Model
BK-FD50S(Standard)
BK-FD50T(Stoppering)
BK-FD100S(Standard)
BK-FD100T(Stoppering)
Freeze Drying Area
0.7m²
0.5m²
1.03m²
1.15m²
Shelf Temperature
-55℃~+70℃(no-loading)
Cold Trap Temperature
<-80℃(no-loading)
Vacuum Degree
≤1Pa(no-loading)
Water Capture Capacity
≥10kg
≥15kg
Cold Trap Volume
/
70L
Cold Trap Size(Diameter*H)
/
Φ400*560mm
Drying Chamber Size(W*D*H)
410*510*590mm
620*510*580mm
410*580*520mm
700*590*760mm
Shelf&Tray Size(W*D*H)
Shelf: 480*360*18mm
Tray: 475*355*25mm
Shelf: 410*410*18mm
Tray: 405*405*25mm
Shelf: 480*360*18mm
Tray: 475*355*25mm
Shelf: 480*600*18mm
Tray: 475*595*25mm
Qty. Of Shelf&Tray
Shelf: 4+1; Tray: 4
Shelf: 3+1; Tray: 3
Shelf: 6+1; Tray: 6
Shelf: 4+1; Tray: 4
Sample Loading Capacity(Liquid)
7L
5L
10L
11L
Height Between Trays
50mm/70mm(Optional)
100mm
70mm
100mm
Tray Temperature Difference
±1℃
Refrigerant
R404A+R23
Condenser Cooling Mode
Air cooling
Defrost Mode
Natural defrosting(optional electric defrosting)
Electric defrosting
Electric defrosting
Electric defrosting
Stoppering Mode
/
Automatic
/
Automatic
Total Qty. of Vial
Φ22mm
/
1050
/
2460
Φ16mm
/
2058
/
4788
Φ12mm
/
3075
/
8624
Vacuum Pump
8L/S(29m³/h)
15L/S(54m³/h)
Electric Defrosting Consumption
/
1000W
1500W
Silicone Oil Heating Rods Consumption
1000W
1600W
Hydraulic Pressure Station Consumption
/
1000W
/
1500W
Total Consumption
5.5KW
6.5KW
6.5KW
7.5KW
Power Supply
AC380V, 50Hz/60Hz(three phase); BK-FD50S: AC220V, 50Hz/60Hz(single phase)
Main Body Weight
600kg
800kg
700kg
1000kg
External Size(W*D*H)mm
1008*823*1420
1405*911*1983
1190*876*1727
1823*1144*2104
Packing Size(W*D*H)mm
Main Body
1130*950*1620mm/700kg
1530*1030*2190mm/900kg
1310*1000*1930mm/850kg
1940*1270*2220mm/1200kg
Gross Weight
Vacuum Pump
790*330*445mm(73kg)
830*370*600mm(88kg)
785*455*300mm(95kg)
800*500*500mm(70kg)
Optional: Import vacuum pump, Vacuum pump anti-valve, Eutective point tester, Oil mist filtration system, Vacuum adjustment device.
Standard: USB port.
| Model | BK-FD100S, BK-FD100T, BK-FD50S, BK-FD50T |
|---|
