Healthcare-Associated Infections (HAIs) present a continuous challenge for surgical departments and Central Sterile Services Departments (CSSDs).
When medical instruments carry residual bioburden, the number of bacteria living on an unsterilized surface, patients face an immediate risk of cross-contamination.
While manual cleaning and chemical disinfectants are essential first steps, high-pressure steam sterilization remains the absolute standard for eliminating microbial life.
Modern autoclave systems have evolved significantly, introducing automated safety mechanisms, precise tracking features, and advanced air-removal technologies that directly protect patient health.
The fundamental principle of an autoclave is simple. Use saturated steam under pressure to deliver latent heat to instruments, destroying all microbial spores.
However, the presence of ambient air inside the sterilization chamber acts as an insulator, blocking steam from directly contacting the surfaces of surgical instruments.

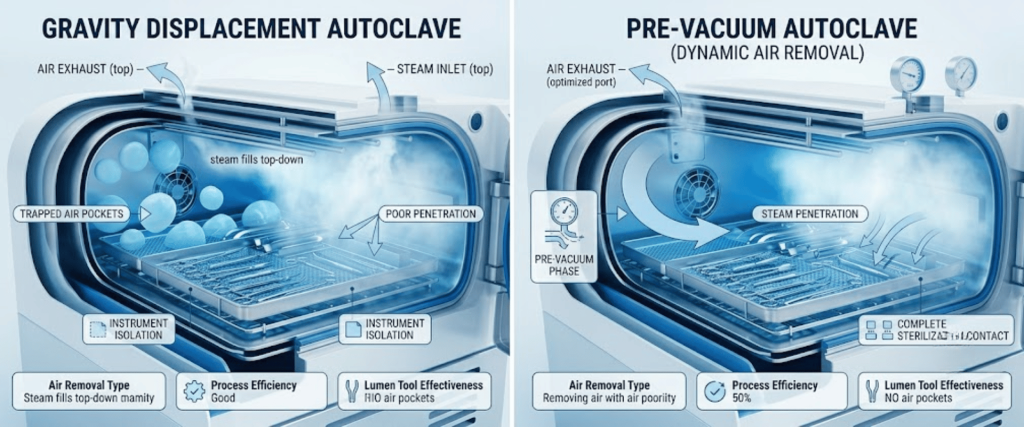

Older gravity displacement autoclaves rely on steam entering the chamber to push lighter air downward and out through a drain. This method frequently leaves trapped air pockets inside hollow surgical tools, narrow lumens, or dense textile packs, resulting in incomplete sterilization.

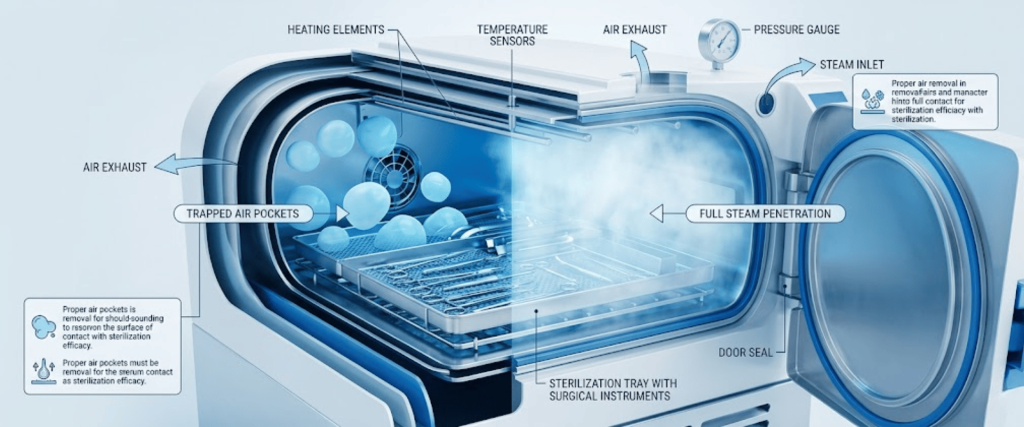

Modern autoclaves use a motorized vacuum pump to evacuate all air from the chamber before releasing steam. This pre-vacuum process creates a deep vacuum, ensuring that when saturated steam enters, it immediately penetrates every millimeter of the load, regardless of tool complexity.
Upgrading to current-generation autoclave hardware removes human error from the sterilization loop through several engineering advancements.

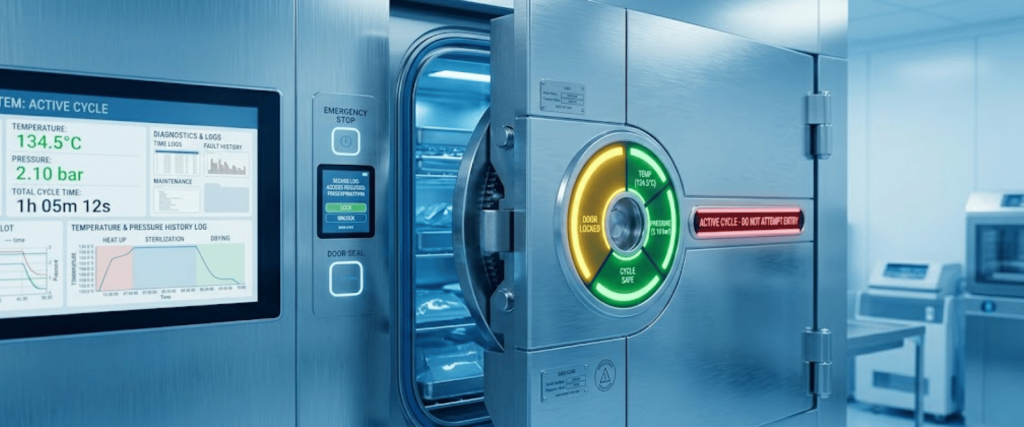

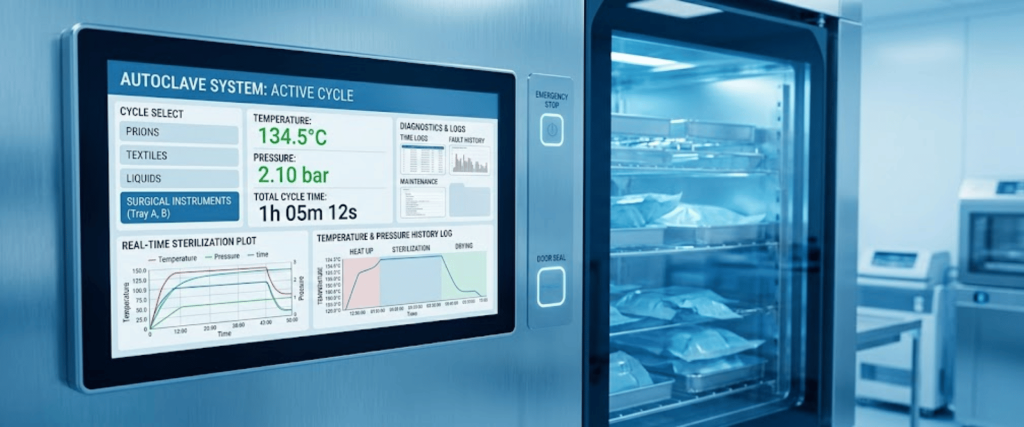

Manual logbooks invite transcription errors and compliance gaps during safety audits. Modern units feature integrated microprocessors that record exact real-time parameters for every single cycle.
This data is automatically saved digitally or printed instantly. If a cycle fails by dropping even half a degree below the target temperature, the system flags the error immediately. It locks the chamber, preventing contaminated tools from reaching the operating room.
In addition to protecting the patient, autoclaves must protect medical staff. Modern pressure vessels feature electronic dual-interlock doors.
The door cannot be physically opened until the internal chamber pressure drops safely to ambient levels and the temperature cools to a safe threshold. This prevents steam explosions and preserves the sterile integrity of the outer packaging.
Wet instrument packs are a primary cause of post-sterilization contamination. Moisture remaining on a wrap creates a pathway for ambient bacteria to migrate through the material via capillary action, a process known as wicking.

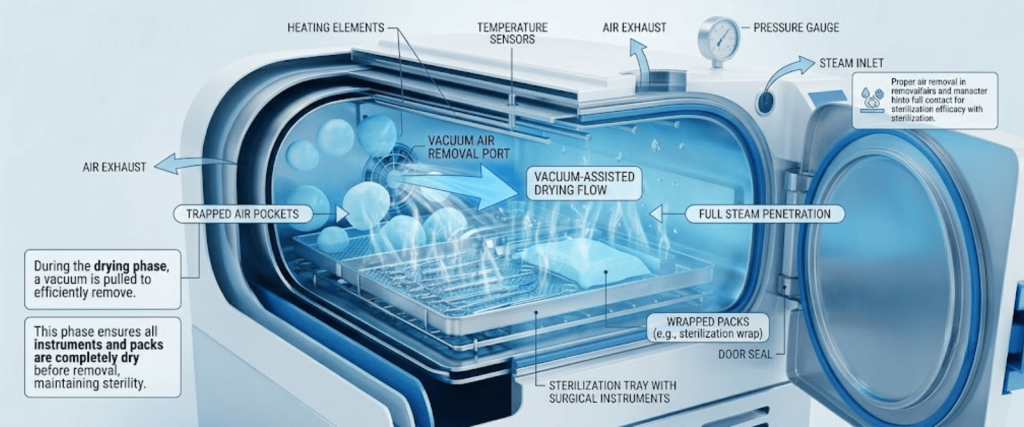

Modern autoclaves use deep post-vacuum drying phases to evaporate moisture completely before the cycle terminates.
Investing in modern hardware is only effective if backed by strict quality assurance protocols. To guarantee patient safety, clinical technicians must follow regular validation steps.

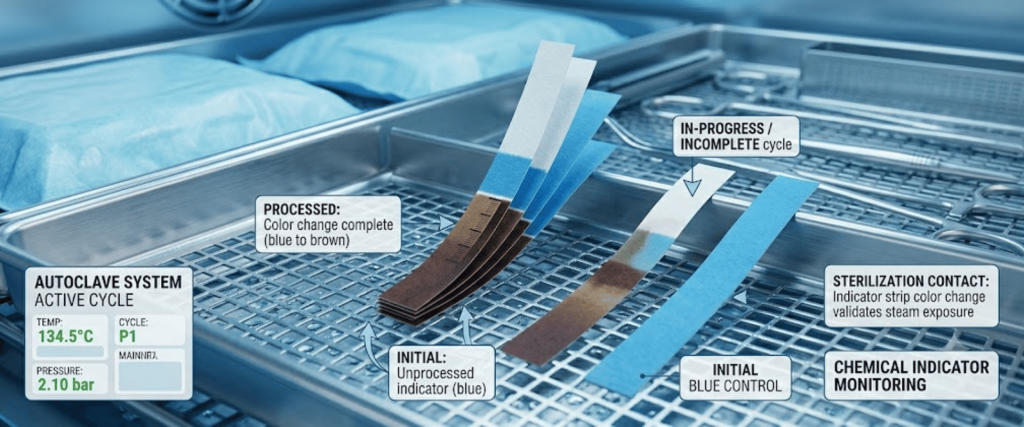

Every wrapped pack must include chemical indicators (such as Type 5 or Type 6 moving-front indicators) that change color only when exposed to the specific combination of time, steam quality, and temperature required for sterilization.
Biological indicators containing highly resistant bacterial spores, typically Geobacillus stearothermophilus, must be run inside a challenge pack at regular intervals.
Incubating these spores confirms that the autoclave is capable of destroying real microbial life, providing absolute biological proof of safety.

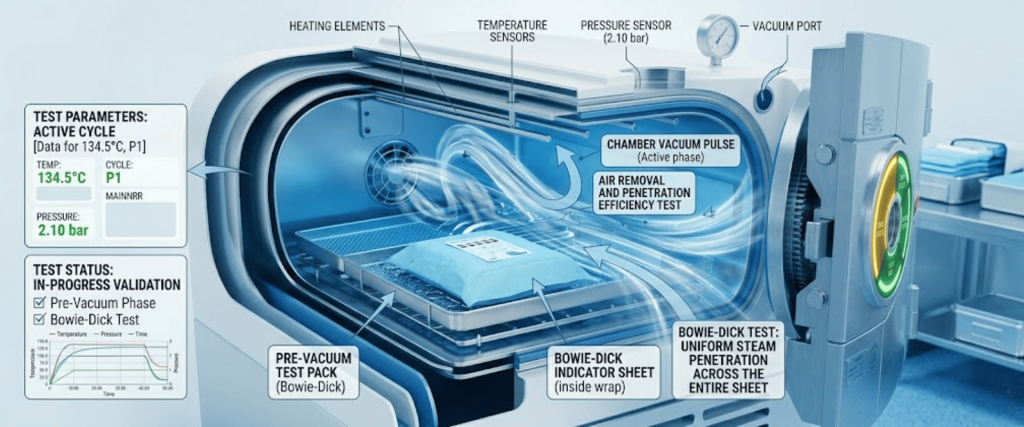

For pre-vacuum sterilizers, a daily Bowie-Dick test must be conducted before processing the first clinical load.
This test specifically evaluates whether the mechanical vacuum system is successfully removing air and detecting leaks in the plumbing lines.

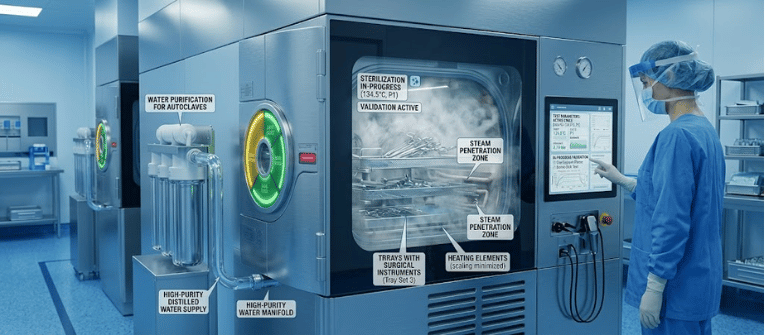

Modern autoclaves require high-purity water feeds (such as deionized or distilled water) to generate clean steam.

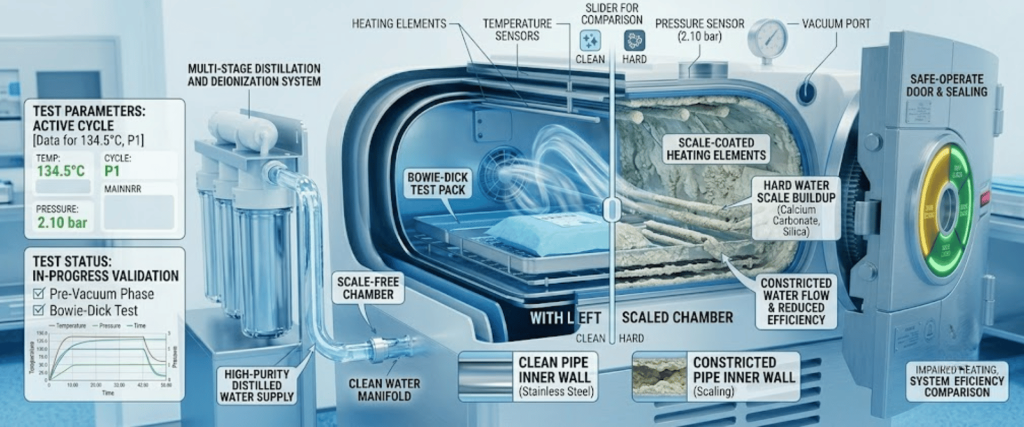

Hard water or mineral-heavy tap water creates scale buildup inside the piping and on heating elements, leading to fluctuating temperatures and potential instrument staining. Maintaining inline filtration systems preserves both tool longevity and sterilization reliability.
| Technical Feature | Conventional Gravity Autoclaves | Modern Pre-Vacuum Autoclaves | Patient Safety Impact |
|---|---|---|---|
| Air Removal Method | Passive displacement via gravity | Active mechanical vacuum pump pulses | Eliminates cold air pockets; guarantees total steam contact. |
| Lumen & Hollow Tool Prep | Low penetration; high risk of non-sterility | Complete penetration via deep vacuum draws | Safely sterilizes complex orthopedic and laparoscopic tools. |
| Data & Compliance | Manual logging on paper charts | Automated digital data capture and export | Ensures strong audit trails and immediate failure alerts. |
| Moisture Control | Passive heat drying; frequent wet packs | Active vacuum-assisted pulse drying | Eliminates post-sterilization wicking and bacterial migration. |
Upgrading to modern, vacuum-assisted autoclave systems is a critical investment in patient safety and risk mitigation.
By replacing passive air removal with active mechanical pre-vacuum pulses, healthcare facilities eliminate the hidden danger of cold air pockets trapped inside complex surgical tools.
When combined with automated digital tracking and rigorous validation protocols, modern steam sterilizers remove human error from the sterilization loop.
This ensures that every instrument delivered to the operating room meets absolute sterility standards, directly reducing the incidence of healthcare-associated infections.
Ambient air acts as an insulator that blocks steam from making direct contact with instrument surfaces. Modern pre-vacuum autoclaves use a mechanical pump to forcefully remove this air, eliminating cold air pockets and ensuring saturated steam completely penetrates even complex, hollow tools.
Modern units feature integrated microprocessors that automatically log real-time cycle parameters like temperature, pressure, and time. If a cycle fails by dropping below target parameters, the system immediately flags the error and locks the chamber, preventing contaminated tools from reaching patients.
Moisture left on a wrap creates a pathway for ambient bacteria to migrate through the packaging material via capillary action (known as wicking). Modern autoclaves prevent this post-sterilization contamination by using deep post-vacuum drying phases to evaporate moisture completed.
