HIGH PRESSURE DIFFUSER

APPLIED PHYSICS is happy to offer a High Pressure Diffuser to assist in the testing of compressed air/gas systems for total air particulates. This diffuser can be used in conjunction with almost any Laser Particle Counter (LPC) on the market with a 1 CFM, or 28.3, 50, 75, or 100 LPM Flow Rates for testing of particles down to 0.3 microns. With the three piece construction of electro-polished 316SS, the unit itself generates virtually no particulate matter. It is ideal for accurate particulate monitoring of your Compressed Air and Gas Systems.

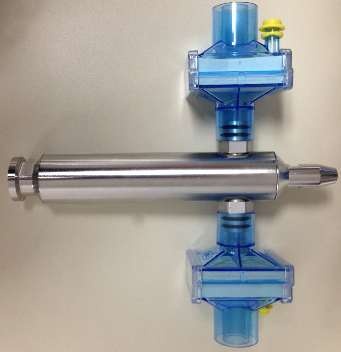

Standard High Pressure Diffuser

SPECIFICATIONS and ORDER INFORMATION

HI-Pressure Diffuser Model# AP.HPD1
HPD Material 316 Stainless Steel
HPD Flow/Use Requirements Electro-polished
Model# EMTEK.HPD1 1 CFM, 28.3, 50,75 and 100 LPM

Laser Practice Counter(LPC)

HPD Pressure Requirements(Approx) 1CFM, 28.3, 50/15-18 to 125 PSI,

75 or 100 LPM/18-21 to 125 PSI

HPD Fittings/Adapters to drop 3/4 Sanitary Fitting
HPD Fittings/Adapters tubing to LPC 0.5″/0.375/0.25 OD (28.3/50 LPM)

0.500 OD (75/100 LPM)

HPD Dimensions 5.5 Length*1.25 OD
HPD Description Total Particulate High Pressure Diffuser
HPD Part/Order # for

28.3/50 LPM LPC

75/100 LPM LPC

AP.HPD1.28.3/50

AP.HPD1.75/100
